Chief PWRIW2000 Large Low-Profile 22" In-Wall Swing Arm Mount
See all Chief items

Chief PWRIW2000 Large Low-Profile 22" In-Wall Swing Arm Mount

SKU: CHPWRIW2000B

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Chief PWRIW2000 Specifications

  • Certifications

    UL Listed

  • Maximum Extension

    22" / 558.8 mm

  • Minimum Depth

    0.5" / 12.7 mm

  • Mounting Pattern Compatibility

    200 x 200mm - 862 x 517mm (Universal Versions)

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Tilt

    + 2deg., - 15deg.

  • Typical Screen Sizes

    37" - 55" / 939.8 - 1397 mm

  • Wall Stud Compatibility

    16" / 406.4 mm

  • Load Capacity

    125 lbs / 56.70 kg

  • Dimensions (H x W x D)

    20" x 30" x 4.5" / 508 x 762 x 114.3 mm

  • UPC Code

    841872109206

About Chief PWRIW2000

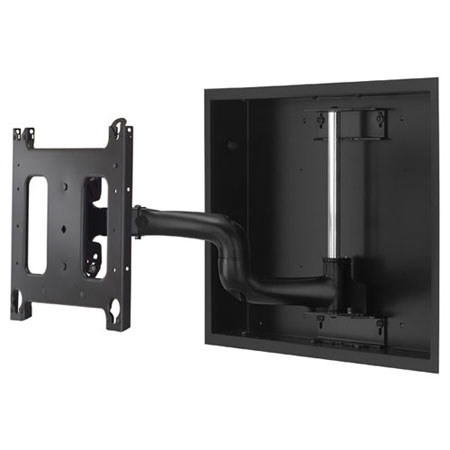

The Chief PWRIW2000 is an in-wall swing arm designed to create a flush installation. Supporting flat panel displays up to 55" or 125 lbs, it ships fully assembled ready for fast installation into the PAC501 In-Wall Accessory. The PWRIW2000 is a custom mount that requires a PSB-series interface bracket.

Chief PWRIW2000 Features

  • Ships fully assembled to save on installation time
  • Easily installs into PAC501B to create an ultra low profile installation
  • Extends over 22" (558.8 mm) for viewing from any angle

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ships fully assembled to save on installation time
  • Easily installs into PAC501B to create an ultra low profile installation
  • Extends over 22" (558.8 mm) for viewing from any angle

What's in the box:

  • Chief PWRIW2000B Large Low-Profile 22 " In-Wall Swing Arm Mount
  • Mounting Hardware
  • Chief Warranty
