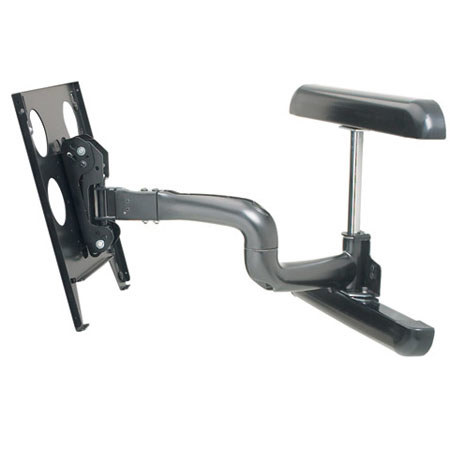

Chief PWRU Large Flat Panel Swing Arm Wall Mount, Black
See all Chief items

Chief PWRU Large Flat Panel Swing Arm Wall Mount, 25" Extension, Black

SKU: CHPWRUB

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief PWRU Large Flat Panel Swing Arm Wall Mount, Black Specifications

  • Certifications

    UL Listed

  • Lateral Shift

    12" (304.8mm)

  • Maximum Extension

    24.88" (631.95mm)

  • Minimum Depth

    3.38" (85.9mm)

  • Mounting Pattern Compatibility

    200 x 200mm - 862 x 517mm (Universal Versions)

  • Orientation

    Landscape, Portrait

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 5deg., - 15deg.

  • Typical Screen Sizes

    37 - 55" (939.8 - 1397mm)

  • Wall Stud Compatibility

    16" (406.4mm)

  • Load Capacity

    125 lbs (56.7kg)

  • Dimensions (H x W x D)

    18 x 23.6 x 3.4" (457.2 x 599.44 x 86.36mm)

  • UPC Code

    841872051581

About Chief PWRU Large Flat Panel Swing Arm Wall Mount, Black

View large flat panel displays up to 55" or 125 lbs from any angle with the Chief PWRU Large Flat Panel Swing Arm Wall Mount (Black). Rugged and versatile, the arm extends 24-7/8" in length from the wall, pivots up to 90deg. left or right of center and collapses to 3-3/8" to provide ultimate flexibility. The PWRU features tool-free Click Connect mounting system and Centris mechanism for fingertip tilt adjustments. It great for home entertainment or boardroom applications. The PWRU includes a universal interface bracket making it compatible with hundreds of flat panel displays from 30-55" or 125 lbs.

Chief PWRU Large Flat Panel Swing Arm Wall Mount, Black Features

  • Extends 24.88" from wall and remains low profile in the home position
  • Q-Latch Mounting System secures flat panel to mount with a latching flag
  • Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
  • Centris Technology provides fingertip tilt adjustments
  • Mounting guides provided for a hassle-free installation
  • Provides positive latch in home position to keep screen tight to wall
  • CableTrac System provides a fast and effective way to route cables
  • UL listed for proven strength
  • Swivel up to 90deg. left or right (depending upon screen size)
  • Screen can be installed in portrait or landscape orientation (PAC400 accessory can be used to rotate without removing the screen)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Extends 24.88" from wall and remains low profile in the home position
  • Q-Latch Mounting System secures flat panel to mount
  • Integrated lateral shift 6" left and right (ships shifted 2.5" to the left)
  • Centris Technology provides fingertip tilt adjustments
  • Mounting guides provided for a hassle-free installation
  • Provides positive latch in home position to keep screen tight to wall

What's in the box:

  • Chief PWRU Large Flat Panel Swing Arm Wall Mount
  • 2 x Cover Plates
  • 4 x End Caps
  • 12 x Tiewraps
  • Chief Warranty
