Chrosziel CustomCage All-Round System in Case
SKU: CHR70000
This item is no longer available.
Recommended Alternatives
Share:
Overview
Compare
Specs
Protection
About Chrosziel C-700-00

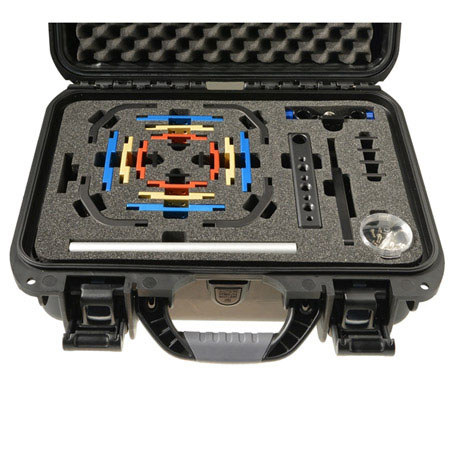

The Chrosziel CustomCage All-Round System in Case includes a 700-00-01 Baseplate for LWS (Light Weight Support, 700-00-02 Carrying Handle, two 700-00-03 pairs of Corners (Black), two 700-00-05 pairs of Locking Bars (Blue), two 700-00-06 pairs of Locking Bars (Gold), two 700-00-07 pairs of Locking Bars (Red), two 700-00-08 pairs of Locking Bars (Black), two 700-00-09 pairs of Extension Plates and Set of 20 M4 Connecting Screws, 700-00-12 Flash Shoe, 700-401-36 Accessory Bridge for 15mm rods, two 15mm rods and a transport case.
The kit is used for assembling CustomCage camera cages, which can be mounted on the Chrosziel Light Weight Support. The kit can be customized to be used with the cameras that are 4.7" (120mm) wide and 7.5" (190mm) in height. The included baseplate comes with 1/4 and 3/8" screws for mounting on the Chrosziel LWS (Light Weight Support) and various threads for tripod plate.
The included 4 black corners with a 90deg. angle feature a 30deg. short and 60deg. long leg. These corners perfectly match to the various camera shapes. Each included locking bar comes with 4 connecting screws. The blue locking bar extends the cage by 2.76" (70mm), gold locking bar extends the cage by 1.97" (50mm) and the red locking bar extends the cage by 1.38" (35mm).
Each included extension plate is 0.95 x 1.18" (24 x 30mm) in size and includes screws to connect each 2 locking bars. The accessory bridge for mounting 15mm rods comes with short and long 3/8" screws, anti-twist insert and double-sided rod clamping. The included case features an additional slot for a mounted CustomCage.
