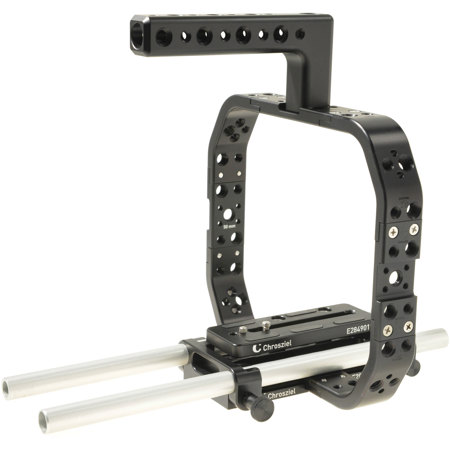

Chrosziel Black Custom Cage with BMCC Baseplate

Chrosziel CustomCage Direct BLACK, with LWS 401-458 Light Weight Support for Blackmagicdesign Cinema und Production camera. Consisting of: 700-00-03 four corners 700-00-06B two locking-bars 50 mm, black 700-00-05B two locking-bar 70 mm black 700-00-02 carrying handle with short 3/8" screw Set of M4 mounting screws and LWS 401-458 with Diameter 15 mm rods, length 310 mm.

This combination of CustomCage Direct and LWS 401-458 fits direct onto the Chrosziel Bridge Plate Digi Cine with 19 mm rods (401-F235). For those who own already a LWS for the BMD Cinema and Production, the CustomCage Direct is also available single, 700-10B-01.

LWS 15 HD Baseplate for Blackmagic Cinema Camera
LWS - Light Weight Support 15 HD BlackMagic Cinema and Production, with Diameter 15 mm rods L. 310 mm w. thread for extensions, double rod guidance and clamp

This version is assembled to the specific height to fit to Blackmagicdesign cameras, model Cinema and Production. If you change your camera you only need some further accessoires. From the body size of a Canon C500 onward to the tiny Blackmagicdesign Pocket Camera all cameras with optical axisbelow 77.5 mm fit. An always updated camera list tells how to use the right screws and spacers.

Carrying Handle for CustomCage
The Chrosziel Carrying Handle for CustomCage fits on in all directions, on top and on the side. It includes a short 19mm 3/8" screw for mounting purposes.

50mm (2") Locking Bars for CustomCage, Pair
The Chrosziel 50mm (2") Locking Bars for CustomCage (Pair) help to extend the CustomCage by 50mm (2"). It comes as a pair to increase the length or width of the CustomCage.

70mm (2.75") Locking Bars for CustomCage, Pair
Locking-Bar L. 70mm (1 pair) Black Edition for CustomCage, extends the cage by 70 mm.

Corner for CustomCage
Corner (spare part) for CustomCage, total 90 Degree, short leg 30 Degree, long leg 60 Degree for optimal adaptation to the camera contours.
