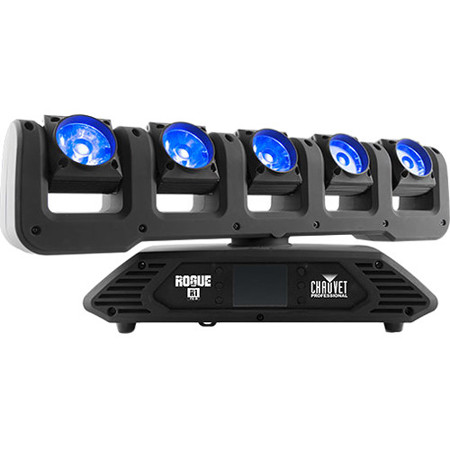

CHAUVET Professional Rogue R1 FX-B Beam Fixture
See all CHAUVET Professional items

CHAUVET Professional Rogue R1 FX-B Beam Fixture

SKU: CHRGR1FXB

This item is no longer available.

Recommended Alternatives

CHAUVET Professional Maverick MK2 Profile: Picture 1 regular
CHAUVET Professional Maverick MK2 Profile 469W LED Moving Head Light with Gobos
$7,218.05$6,399.99
See More Recommendations
Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

FAQ

What are the control options for the Rogue R1 FX-B Beam Fixture?

The Rogue R1 FX-B Beam Fixture can be controlled via DMX, Art-Net, sACN, or Kling-Net, providing maximum versatility for integration into any existing lighting setup.

What type of LEDs does the Rogue R1 FX-B Beam Fixture use?

The Rogue R1 FX-B Beam Fixture uses five 15W RGBW LEDs. These LEDs are pixel mappable, allowing for precise control and rich color mixing.

What makes the Rogue R1 FX-B Beam Fixture stand out in terms of movement?

The Rogue R1 FX-B Beam Fixture features an innovative design that allows for infinite rotation on both the pan and tilt axes. This enables the creation of mesmerizing aerial effects and dynamic lighting displays.

Is the Rogue R1 FX-B Beam Fixture suitable for professional use?

Yes, the Rogue R1 FX-B Beam Fixture is designed for professional use. Its high-quality construction, advanced features, and reliable performance make it ideal for stage, event, and entertainment lighting applications.

What is pixel mapping in the context of the Rogue R1 FX-B Beam Fixture?

Pixel mapping in the Rogue R1 FX-B Beam Fixture refers to the ability to control each LED light individually. This allows for detailed visual displays and complex lighting effects.

Shopper : Why Did You Choose This?JEFFREY D : need a spare

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET Professional Beam Fixture Specifications

  • Connections

    Power Connection: Edison (Local) plug to Neutrik powerCON
    Power Input: Neutrik powerCON
    Data Connectors: 3- and 5-pin XLR
    Cable Length (power): 5' (1.5m)

  • Light Source

    5 LEDs (quad-color RGBW) 15 W, (4 A), 50,000 hours life expectancy

  • Installed Optics

    5 deg.

  • Beam Angle

    7 deg.

  • Field Angle

    11 deg.

  • Illuminance

    5,361 lux at 5 m

  • Selectable PWM

    600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz

  • Control Protocol

    Art-Net, Kling-Net, DMX, sACN

  • DMX Channels

    Single Mode: 18, 25, or 47
    Dual Mode: Function: 9, 17, 23
    Pixel: 15 or 20

  • Art-Net Channels

    Single Mode: 18, 25, or 47
    Dual Mode: Function: 9, 17, 23
    Pixel: 15 or 20

  • Pan and Tilt

    540 deg. / 540 deg.

  • Pan and Tilt Ranges

    Infinite, 540 deg., 360 deg., 180 deg. pan/ Infinite, 540 deg., 270 deg., 180 deg. tilt

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 20 Hz

  • Standalone Color Mixing

    No

  • Color Temperature Presets

    No

  • Move-in-Black

    Yes

  • Dim Curves

    4

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power Linking

    9 units at 120 V; 15 units at 208 V; 18 units at 230 V

  • Power and Current

    207 W, 1.68 A at 120 V, 60 Hz
    200 W, 0.938 A at 208 V, 60 Hz
    197 W, 0.876 A at 230 V, 50 Hz

  • Certifications / Qualifications

    CE, MET
    IP Rating: IP20, dry location

  • Housing Material

    High-impact flame-retardant polymer

  • Dimensions

    25.19 x 7.05 x 9.72" (639.83 x 179.07 x 246.89mm)

  • Weight

    24.2lbs (10.98kg)

  • UPC Code

    781462215514

18 Accessories for CHAUVET Professional Rogue R1 FX-B Beam Fixture

  • All Accessories (18)
  • Cables & Adapters (5)
  • Tripod and Stand Accessories (2)
  • Controllers (6)
  • Gaffer Tape (5)
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
$14.99
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
$23.69
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
$20.95
Hosa Technology Hosa DMX 3 Pin Terminator
Hosa Technology Hosa DMX 3 Pin Terminator
$13.39
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
$16.95
CHAUVET DJ CH-06 9' Lightweight T-Bar Tripod Stand
CHAUVET DJ CH-06 9' Lightweight T-Bar Tripod Stand
$63.99
American DJ Heavy-Duty C-Clamp
American DJ Heavy-Duty C-Clamp
$10.00
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
$89.99
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
$119.99
CHAUVET DJ Obey 10 DMX Controller for Lighting Fixtures, 128 Channels
CHAUVET DJ Obey 10 DMX Controller for Lighting Fixtures, 128 Channels
$179.99
CHAUVET DJ Obey 40 DMX Controller for Lighting Fixtures, 192 Channels
CHAUVET DJ Obey 40 DMX Controller for Lighting Fixtures, 192 Channels
$199.99
CHAUVET DJ Obey 6 DMX-512 Controller for LED Fixtures, 36 Channels
CHAUVET DJ Obey 6 DMX-512 Controller for LED Fixtures, 36 Channels
$139.99

About CHAUVET Professional Beam Fixture

Explore the dynamic capabilities of the Rogue R1 FX-B Beam Fixture, a cutting-edge lighting solution designed for professional-grade stage and event illumination. This durable and reliable fixture revolutionizes lighting design with its five individually controlled heads, each powered by a 15W RGBW LED that delivers crisp, intense beams and vibrant color mixing.

The Rogue R1 FX-B stands out with its innovative infinite rotation on both the pan and tilt axes, allowing for mesmerizing aerial effects and unparalleled creative freedom. The high-quality LEDs are pixel mappable, providing precise control over each light for complex and detailed visual displays.

Versatility is at the heart of the Rogue R1 FX-B, with multiple control options including DMX, Art-Net, sACN, or Kling-Net, ensuring seamless integration into any existing lighting setup. Its rocket-quick movements and sizzling output are engineered to captivate audiences and enhance any performance.

Whether you're a lighting designer, stage professional, or event coordinator, the Rogue R1 FX-B Beam Fixture from Chauvet Professional is the perfect choice for those who demand top-tier performance and advanced features in their lighting equipment. Elevate your lighting experience with the innovative and versatile Rogue R1 FX-B, a fixture that truly shakes things up in the world of professional lighting.

CHAUVET Professional Beam Fixture Features

  • Fully featured RGBW LED yoke effect beam fixture with pixel mapping
  • 16-bit Dimming of master dimmer as well as individual colors for smooth control of fades
  • Built in color and tilt macros for quick design possibilities
  • Continuous movement of pan and tilt functions
  • Individual control of all five heads for movement and output
  • Quiet operation for a wide range of installation situations
  • DMX, sACN, Art-Net, and Kling-Net control for full flexibility
  • 7deg. beam angle to create crisp and defined areal beam effects
  • User selectable PWM frequencies to eliminate camera roll
  • Battery backup display with auto rotate depending on fixture orientation

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Unleash dynamic lighting with the Rogue R1 FX-B Beam's continuous pan and tilt motion.
  • Create stunning aerial effects using this LED spotlight's five independently controlled beams.
  • The Rogue R1 FX-B offers Art-Net, Kling-Net, and DMX control for advanced lighting designs.
  • Enjoy vibrant colors with quad-color RGBW LEDs, perfect for DJ sets and stage lighting.
  • This moving head fixture's compact design ensures easy transport and quick setup at any venue.
  • Benefit from the robust build and reliable performance of this CHAUVET professional light.

What's in the box:

  • CHAUVET Rogue R1 FX-B Beam Fixture
  • Edison (Local) Plug to Neutrik PowerCON
  • Omega Bracket with Mounting Hardware
  • CHAUVET 2 Year Limited Warranty
