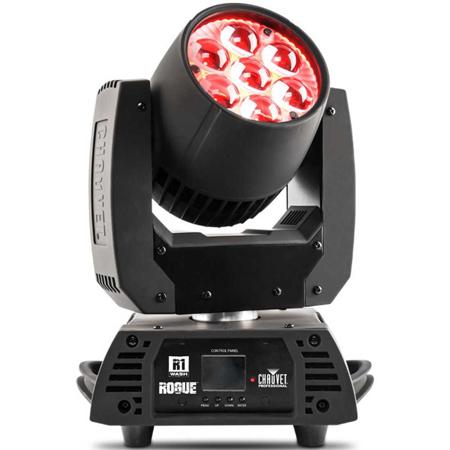

CHAUVET Rogue R1 LED Wash Light
See all CHAUVET DJ items

CHAUVET DJ Rogue R1 LED Wash Light

SKU: CHRGR1WSH

This item is no longer available.

Recommended Alternatives

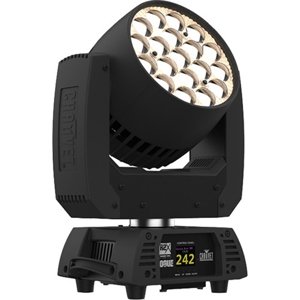

CHAUVET DJ Rogue R2X Wash VW: Picture 1 regular
CHAUVET Professional Rogue R2X Wash VW 25W Variable White LED Moving Head Light
$2,418.00
CHAUVET DJ Rogue R1 BeamWash: Picture 1 regular
CHAUVET Professional Rogue R1 BeamWash 40W RGBW LED Moving Head Wash Light
$2,321.50

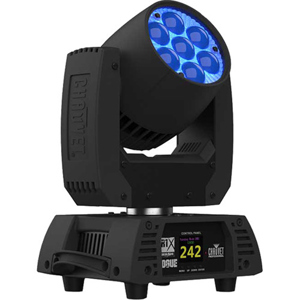

CHAUVET DJ Rogue R1X Wash: Picture 1 regular
CHAUVET Professional Rogue R1X Wash 25W RGBW LED Moving Head Wash Light
$1,421.00

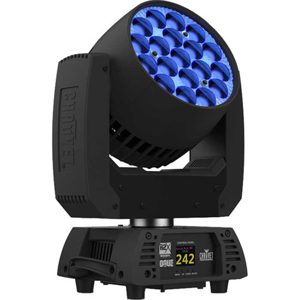

CHAUVET DJ Rogue R2X Wash: Picture 1 regular
CHAUVET Professional Rogue R2X Wash 25W RGBW LED Moving Head Wash Light Fixture
$2,177.50
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHAUVET DJ Rogue R1 Specifications

  • DMX Channels

    14, 15, 19 or 21

  • Data Ports

    3 and 5-Pin XLR

  • Modes/Personalities

    4 personalities (14CH, 15CH, 19CH, or 21CH)

  • Light Source

    7 LEDs (quad-color RGBW) 15 W, (980 mA), 50,000 hours life expectancy

  • Adjustments

    Pan and Tilt: 540/230 degree
    Pan and tilt ranges:
    Pan: 180 degree, 360 degree, 540 degree
    Tilt: 90 degree, 180 degree, 230 degree
    Automatic Pan / Tilt correction

  • Programs

    Built-in automated programs

  • Dimming

    Electronic

  • Shutter/Strobe

    Electronic
    Strobe rate: 0 to 20 Hz

  • Color Mixing

    Standalone color mixing

  • Color Temperature

    2,800 to 10,000 K

  • Color Temperature Presets

    Yes

  • Dim Curves

    4

  • Customizable Programs

    Yes

  • Recall Custom Programs

    Yes

  • Beam and Field Angle

    Beam: 8 to 30 degree
    Field: 11 to 48 degree
    Zoom: 11 to 48 degree

  • Illuminance

    At 11 degree: 3,098 lux at 16.4' (5.0m)
    At 48 degree: 299 lux at 16.4' (5.0m)

  • PWM Frequency

    1,200 Hz

  • Exterior Color

    Black

  • Housing Material

    High-impact flame-retardant polymer

  • IP Rating

    IP20, dry location

  • Cable Length

    5' (1.5m)

  • Connectors

    Power connection: Edison plug to Neutrik powerCON
    Power input: Neutrik powerCON
    Power output: Neutrik powerCON

  • Power Linking

    10 units at 120 VAC
    18 units at 208 VAC
    21 units at 230 VAC

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    161 W, 1.34 A at 120 VAC, 60 Hz
    141 W, 0.72 A at 208 VAC, 60 Hz
    139 W, 1.62 A at 230 VAC, 60 Hz

  • Approvals

    CE, MET

  • Dimensions

    7.36 x 10.43 x 13.94" (187 x 265 x 354 mm)

  • Weight

    13lb (5.9kg)

About CHAUVET DJ Rogue R1

Rogue R1 Wash distinguishes itself by offering a combination of performance features unique to its price class. Powered by seven RGBW 15W quad-LEDs, this bright and versatile moving wash zoom fixture features a unique "bubble" lens design for excellent color rendering and stunning visual effects. Other standout features include an industry standard setting 11 degree to 48 degree beam angle, incredibly fast and smooth pan and tilt movements, simple and complex DMXchannel profiles, plus 3-pin and 5-pin DMX connectors. Versatility, value and performance make this fixture a welcome addition to any touring rig or permanent installation.

CHAUVET DJ Rogue R1 Features

  • 7 RGBW LEDs, 15 W Each
  • 3- and 5-pin DMX Input/Output Connections
  • Unique Lens Design for Excellent Color Blending
  • Fast, Smooth Pan and Tilt Movement
  • 6 Distinct Dimming Modes for Advanced Control
  • Omega Mounting Bracket, Fits all Rogue, Next, and Legend Fixtures
  • Easy to Read OLED Display with Simple, Effective Menu Options
  • Simple and Complex DMX Channel Profiles for Programming Versatility

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 7 RGBW LEDs, 15 W Each
  • 3- and 5-pin DMX Input/Output Connections
  • Unique Lens Design for Excellent Color Blending
  • Fast, Smooth Pan and Tilt Movement
  • 6 Distinct Dimming Modes for Advanced Control
  • Omega Mounting Bracket, Fits all Rogue, Next, and Legend Fixtures

What's in the box:

  • CHAUVET Rogue R1 LED Wash Light
  • Neutrik powerCON Power Cord
  • Omega Bracket with Mounting Hardware
  • Quick Reference Guide
  • CHAUVET 2-Year Limited Warranty
