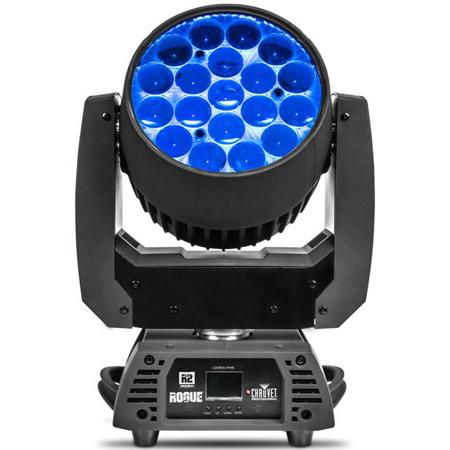

CHAUVET Rogue R2 LED Wash Light
See all CHAUVET DJ items

CHAUVET DJ Rogue R2 LED Wash Light

SKU: CHRGR2WSH
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET DJ Rogue R2X Wash VW: Picture 1 regular
CHAUVET Professional Rogue R2X Wash VW 25W Variable White LED Moving Head Light
$2,728.00$2,418.00
CHAUVET DJ Rogue R1 BeamWash: Picture 1 regular
CHAUVET Professional Rogue R1 BeamWash 40W RGBW LED Moving Head Wash Light
$2,487.00$2,205.00
CHAUVET DJ Rogue R1X Wash: Picture 1 regular
CHAUVET Professional Rogue R1X Wash 25W RGBW LED Moving Head Wash Light
$1,600.50$1,421.00
CHAUVET DJ Rogue R2X Wash: Picture 1 regular
CHAUVET Professional Rogue R2X Wash 25W RGBW LED Moving Head Wash Light Fixture
$2,453.50$2,177.50
See More Recommendations
Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

CHAUVET DJ Rogue R2 Specifications

  • DMX Channels

    15, 17, 22, 33, 54 or 56

  • Data Ports

    3 and 5-Pin XLR

  • Modes/Personalities

    8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

  • Light Source

    19 LEDs (quad-color RGBW) 15 W, 1 A, 50,000 hours life expectancy

  • Adjustments

    Pan and Tilt: 540/230 degree
    Pan and tilt ranges:
    Pan: 180 degree, 360 degree, 540 degree
    Tilt: 90 degree, 180 degree, 230 degree
    Automatic Pan / Tilt correction

  • Programs

    Built-in automated programs

  • Dimming

    Electronic

  • Shutter/Strobe

    Electronic
    Strobe rate: 0 to 20 Hz

  • Color Mixing

    Standalone color mixing

  • Dim Curves

    4

  • Customizable Programs

    No

  • Recall Custom Programs

    No

  • Color Temperature

    2,800 to 10,000 K

  • Color Temperature Presets

    Yes

  • Beam and Field Angle

    Beam: 8 to 30 degree
    Field: 12 to 49 degree
    Zoom: 12 to 49 degree

  • Illuminance

    At 12 degree: 8,650 lux at 16.4' (5.0m)
    At 49 degree: 750 lux at 16.4' (5.0m)

  • PWM Frequency

    1,200 Hz

  • Exterior Color

    Black

  • Housing Material

    High-impact flame-retardant polymer

  • IP Rating

    IP20, dry location

  • Cable Length

    5' (1.5m)

  • Connectors

    Power connection: Edison plug to Neutrik powerCON
    Power input: Neutrik powerCON
    Power output: Neutrik powerCON

  • Power Linking

    4 units at 120 VAC
    8 units at 208 VAC
    9 units at 230 VAC

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    339 W, 2.95 A at 120 VAC, 60 Hz
    324 W, 0.62 A at 208 VAC, 60 Hz
    324 W, 1.50 A at 230 VAC, 60 Hz

  • Approvals

    CE, MET

  • Dimensions

    8.58 x 12.05 x 15.67" (218 x 306 x 398mm)

  • Weight

    20.4lb (9.25kg)

18 Accessories for CHAUVET DJ Rogue R2 LED Wash Light

  • All Accessories (18)
  • Cables & Adapters (5)
  • Tripod and Stand Accessories (2)
  • Controllers (6)
  • Gaffer Tape (5)
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
$20.95
Hosa Technology Hosa DMX 3 Pin Terminator
Hosa Technology Hosa DMX 3 Pin Terminator
$13.95
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
$12.90
Adorama Pro-Gaff Gaffer Tape 1" x 8 Yards Assorted 4-Pack
Adorama Pro-Gaff Gaffer Tape 1" x 8 Yards Assorted 4-Pack
$18.95
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
$14.99
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
$23.69
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
$16.95
CHAUVET DJ CH-06 9' Lightweight T-Bar Tripod Stand
CHAUVET DJ CH-06 9' Lightweight T-Bar Tripod Stand
$63.99
American DJ Heavy-Duty C-Clamp
American DJ Heavy-Duty C-Clamp
$10.00
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
$89.99
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
$119.99
CHAUVET DJ Obey 10 DMX Controller for Lighting Fixtures, 128 Channels
CHAUVET DJ Obey 10 DMX Controller for Lighting Fixtures, 128 Channels
$179.99

About CHAUVET DJ Rogue R2

Rogue R2 Wash makes a valuable addition to rental and production inventories. Durable and dependable, this moving wash workhorse produces a bright, powerful light and offers five zones of LED control to pixel map its 19 (15 W) RGBW quad-LEDs. An industry leading zoom range of 12-49 degrees gives the Rogue R2 Wash the spread to cover even the largest areas. Smooth color mixing, simple and complex DMX channel profiles and powerCON in and out are just some of the other features that make this fixture a standout performer in any setting.

CHAUVET DJ Rogue R2 Features

  • 19 RGBW LEDs, 15 W Each
  • 5 zones of LED control for pixel mapping control
  • 3- and 5-pin DMX Input/Output Connections
  • Unique Lens Design for Excellent Color Blending
  • Fast, Smooth Pan and Tilt Movement
  • 6 Distinct Dimming Modes for Advanced Control
  • Omega Mounting Bracket, Fits all Rogue, Next, and Legend Fixtures
  • Easy to Read OLED Display with Simple, Effective Menu Options
  • Simple and Complex DMX Channel Profiles for Programming Versatility

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 19 RGBW LEDs, 15 W Each
  • 5 zones of LED control for pixel mapping control
  • 3- and 5-pin DMX Input/Output Connections
  • Unique Lens Design for Excellent Color Blending
  • Fast, Smooth Pan and Tilt Movement
  • 6 Distinct Dimming Modes for Advanced Control

What's in the box:

  • CHAUVET Rogue R2 LED Wash Light
  • Neutrik powerCON Power Cord
  • Omega Bracket with Mounting Hardware
  • Quick Reference Guide
  • CHAUVET 2-Year Limited Warranty
