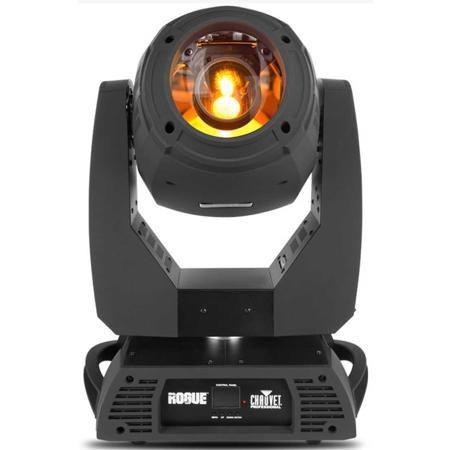

CHAUVET Rogue RH1 Hybrid Halogen Light
See all CHAUVET DJ items

CHAUVET DJ Rogue RH1 Hybrid Halogen Light

SKU: CHRGRH1HBD
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

CHAUVET DJ Rogue RH1 Specifications

  • DMX Channels

    20 or 25

  • Data Ports

    3 and 5-Pin XLR

  • Modes/Personalities

    2 personalities

  • Light Source

    330 W OSRAM Sirius lamp, 1 A, 1,5000 hours life expectancy

  • Adjustments

    Pan and Tilt: 540/260 degree
    Pan and tilt ranges:
    Pan: 180 degree, 360 degree, 540 degree
    Tilt: 90 degree, 180 degree, 260 degree
    Automatic Pan / Tilt Correction

  • Programs

    Built-in automated programs

  • Dimmer

    Motorized

  • Shutter/Strobe

    Motorized

  • Zoom

    Motorized

  • Focus:

    Motorized

  • Frost

    Motorized

  • Prism

    (1): 6 Facets, motorized, rotating
    (1): 6 Facets, motorized, rotating

  • Move in Black

    Yes

  • Dim Modes

    2

  • Color Mixing

    Standalone color mixing

  • Color Temperature

    6,655 K

  • Colors

    13 + white, split colors, continuous scroll at variable speeds

  • Gobos (1)

    13 + open (13 metal), continuous scroll at variable speeds

  • Gobos (2)

    9 + open (9 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds

  • Gobo Size

    Gobo Wheel 2 (rotating): 15.6 mm (outside), 13.4 mm (image), 1.1 mm (max. thickness)

  • Color Temperature Presets

    Yes

  • Beam and Field Angle

    Beam Angle: 3 degree to 10 degree (spot mode)
    Field Angle: 5 degree to 19 degree (spot mode)
    Beam angle: 1 to 4.5 degree (beam mode)
    Field angle: 2.5 degree to 8 degree (beam mode)
    Zoom angle (spot mode): 5 to 19 degree
    Zoom angle (beam mode): 2.5 to 8 degree

  • Illuminance

    5 degree: 112,200 lux at 16.4' (5.0m)
    19 degree: 8,230 lux at 16.4' (5.0m)
    2.5 degree: 111,000 lux at 49' (15m)
    8 degree: 7,320 lux at 49' (15m)

  • IP Rating

    IP20, dry location

  • Cable Length

    5' (1.5m)

  • Connectors

    Power connection: Edison (local) plug to Neutrik powerCON
    Power input: Neutrik powerCON

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    548 W, 4.3 A at 120 VAC, 60 Hz
    545 W, 2.54 A at 208 VAC, 60 Hz
    522 W, 2.30 A at 230 VAC, 50 Hz

  • Approvals

    CE, MET

  • Exterior Color

    Black

  • Housing Material

    High-impact flame-retardant polymer

  • Dimensions

    16.1 x 12.9 x 25.8" (409 x 327 x 638mm)

  • Weight

    55.2lb (25.1kg)

18 Accessories for CHAUVET DJ Rogue RH1 Hybrid Halogen Light

  • All Accessories (18)
  • Cables & Adapters (5)
  • Tripod and Stand Accessories (2)
  • Controllers (6)
  • Gaffer Tape (5)
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
Pig Hog 5' 3-Pin XLR DMX Lighting Cable
$20.95
Hosa Technology Hosa DMX 3 Pin Terminator
Hosa Technology Hosa DMX 3 Pin Terminator
$13.95
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
Adorama Pro-Gaff Gaffer Tape 1" x 55 Yards Black Single
$12.90
Adorama Pro-Gaff Gaffer Tape 1" x 8 Yards Assorted 4-Pack
Adorama Pro-Gaff Gaffer Tape 1" x 8 Yards Assorted 4-Pack
$18.95
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
Pig Hog 10' 3-Pin XLR DMX Lighting Cable
$14.99
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
Pig Hog 25' 3-Pin XLR DMX Lighting Cable
$23.69
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
Hosa Technology Hosa Five-Pin Male XLR DMX Terminator
$16.95
CHAUVET DJ CH-06 9' Lightweight T-Bar Tripod Stand
CHAUVET DJ CH-06 9' Lightweight T-Bar Tripod Stand
$63.99
American DJ Heavy-Duty C-Clamp
American DJ Heavy-Duty C-Clamp
$10.00
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
CHAUVET DJ Obey 3 DMX Controller for LED Lights, 3 Channels, 3-pin XLR Connector
$89.99
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
CHAUVET DJ Obey 4 DMX Controller for LED Wash Lights, 16 Channels
$119.99
CHAUVET DJ Obey 10 DMX Controller for Lighting Fixtures, 128 Channels
CHAUVET DJ Obey 10 DMX Controller for Lighting Fixtures, 128 Channels
$179.99

About CHAUVET DJ Rogue RH1

Rogue RH1 Hybrid pushes the performance boundaries for automated moving fixtures to new heights. This hybrid beam and spot possesses an unrivaled optical system with 8-facet and 6-facet prism sets that are completely layerable and controllable. Powered by a 330W Osram Sirius lamp, Rogue RH1 Hybrid delivers an ultra-intense output of 111,000 LUX at 15m with tight beam angles of 1-4.5 degree in Beam Mode and a zoom range of 5-19 degree in Spot Mode. Indexing and static scrolling gobo wheels and a 13-hue color wheel add to the stunning visual effects that this amazing tool can create.

CHAUVET DJ Rogue RH1 Features

  • Osram Sirius Lamp, 330 W X8, 8000 K, 1,500 Hours Life Expectancy
  • 3- and 5-pin DMX Input/Output Connections
  • Fast, Smooth, and Precise Pan and Tilt Operation
  • 111,000 Lux at 15m in Beam Mode
  • Omega Mounting Bracket, Fits all Rogue, Next, and Legend Fixtures
  • Two Prisms, 6-Facet and 8-Facet, Independently Controllable for Amazing Gobo Effects
  • Two Gobo Wheels, 1 Rotating and 1 Static Wheel for Dynamic Projection Images
  • 2.5 degree to 8 degree Zoom in Beam Mode, 5 degree to 19 degree Zoom in Spot Mode for Variable Beam Size Options

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Osram Sirius Lamp, 330 W X8, 8000 K, 1,500 Hours Life Expectancy
  • 3- and 5-pin DMX Input/Output Connections
  • Fast, Smooth, and Precise Pan and Tilt Operation
  • 111,000 Lux at 15m in Beam Mode
  • Omega Mounting Bracket, Fits all Rogue, Next, and Legend Fixtures
  • Two Prisms, 6-Facet and 8-Facet, Independently Controllable for Amazing Gobo Effects

What's in the box:

  • CHAUVET Rogue RH1 Hybrid Halogen Light
  • 330X8 Osram Sirius Lamp
  • Neutrik powerCON Power Cord
  • 2 x Omega Bracket with Mounting Hardware
  • Quick Reference Guide
  • CHAUVET 2-Year Limited Warranty
