CHAUVET DJ Rogue R1 Beam Moving Head Light Fixture with Osram Sirius Lamp, 15 or 19 DMX Channels, 3-Pin and 5-Pin XLR Connectors, 78700 lux at 15m Illuminance

SKU: CHRGUER1BEAM

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

CHAUVET Rogue R1 Beam Moving Head Light Fixture with Osram Sirius Lamp Specifications

  • DMX Channels

    15 or 19

  • Data Connectors

    3-Pin and 5-Pin XLR

  • Light Source

    Osram Sirius lamp, 132 W, 9200 K, 6,000 hours life expectancy

  • Pan and Tilt

    540deg./270deg.

  • Pan and Tilt Ranges

    180deg., 360deg., 540deg. pan/90deg., 180deg., 270deg. tilt

  • Automatic Pan/Tilt Correction

    Yes

  • Colors

    14 + white, split colors, continuous scroll at variable speeds

  • Gobos

    17 + open (17 metal), continuous scroll at variable speeds

  • Prism (1)

    5 Facets, motorized, rotating

  • Prism (2)

    8 Facets, motorized, rotating

  • Dimmer

    Motorized

  • Focus

    Motorized

  • Shutter/Strobe

    Motorized

  • Strobe Rate

    0 to 20 Hz

  • Beam Angle

    1deg.

  • Field Angle

    2deg.

  • Illuminance (total)

    78, 700 lux at 15m

  • Color Temperature (at full)

    8000 K

  • IP Rating

    IP20, dry location

  • Cable Length

    5' (1.52m)

  • Power Connection

    Edison plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    263 W, 2.4 A at 120 V, 60 Hz
    253 W, 1.2 A at 208 V, 60 Hz
    265 W, 1.1 A at 230 V, 50 Hz

  • Approvals

    CE, MET

  • Dimensions

    11.1 x 14.2 x 17.5" / 28.19 x 36.06 x 44.45cm

  • Weight

    38.8lbs / 17.59kg

  • UPC Code

    781462211783

18 Accessories for CHAUVET DJ Rogue R1 Beam Moving Head Light Fixture with Osram Sirius Lamp, 15 or 19 DMX Channels, 3-Pin and 5-Pin XLR Connectors, 78700 lux at 15m Illuminance

  • All Accessories (18)
  • Cables & Adapters (5)
  • Tripod and Stand Accessories (2)
  • Controllers (6)
  • Gaffer Tape (5)

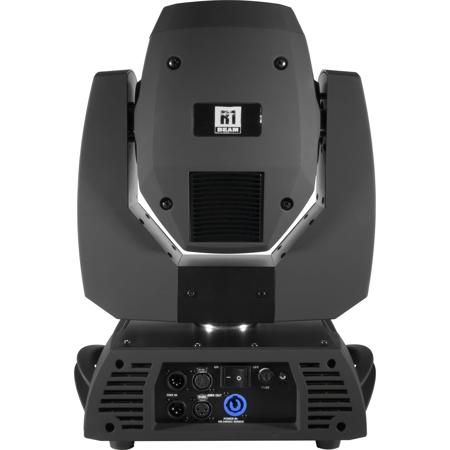

About CHAUVET Rogue R1 Beam Moving Head Light Fixture with Osram Sirius Lamp

The CHAUVET Rogue R1 Beam is the perfect beam fixture for productions of all scope, featuring a bright Osram Sirius 132-W HRI lamp that allows the R1 Beam to punch through fog, haze and atmosphere anywhere. Rogue R1 Beam is an exceptional value proposition, featuring a unique fixed color wheel with 14 slots plus white that allows not only for split colors, but also for continuous and variable speed scrolling of the entire color wheel.

The Rogue R1 Beam's game changer is the set of 2 prisms, one 5-facet and one 8-facet, that can be layered, independently rotating and controllable, to give your design never seen before aerial and gobo effects. Rogue R1 Beam has one steel gobo wheel with 17 slots plus open, featuring aerial gobos and a mix of apertures for tightly collimated beam looks. Rogue R1 Beam is tough and comes with industry-standard Neutrik powerCON power input/output connections for power linking and 3-pin and 5-pin DMX connections for ease of use.

CHAUVET Rogue R1 Beam Moving Head Light Fixture with Osram Sirius Lamp Features

  • Bright, punchy beam with 78,700 lux at 15 m using Osram's Sirius 132 W HRI lamp
  • 17 gobos with continuous variable wheel scroll
  • Two prisms, 5-facet and 8-facet, independently controllable for amazing gobo effects
  • Color wheel with 14 colors, split color ability and continuous variable-speed scrolling
  • Simple and complex DMX channel profiles for programming versatility

Key Features

  • Bright, punchy beam with 78,700 lux at 15 m
  • 17 gobos with continuous variable wheel scroll
  • Two prisms, 5-facet and 8-facet, independently controllable
  • Continuous variable-speed scrolling
  • Split color ability
  • Color wheel

What's in the box:

  • CHAUVET Rogue R1 Beam Moving Head Light Fixture with Osram Sirius Lamp
  • Neutrik powerCON Power Cord
  • 2x Omega Bracket
  • Mounting Hardware
  • CHAUVET 2 Year Limited Warranty
