Chrosziel MagNum 101 Single Channel 2.4 GHz Wireless Follow Focus Kit, Chrosziel Motor

MagNum 101 Single Channel 2.4 GHz Wireless Follow Focus Kit, with Chrosziel Motor

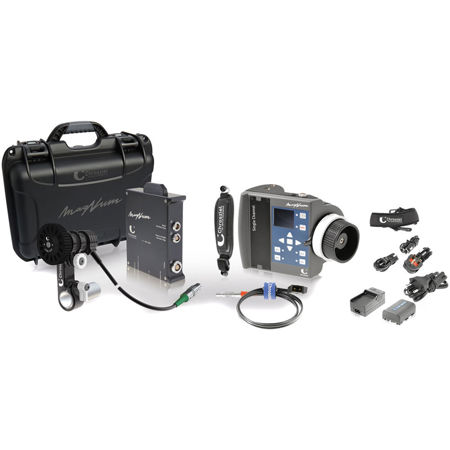

The Kit includes Chrosziel's single channel MagNum transmitter and receiver along with required power and cable accessories and CDM-100 Digital Motor. Remotely control your lens's focus with this Kit. The MagNum unit is compatible with motors that use a 7-pin LEMO interface.

Magnum Lens Control System
An astounding, new concept for a remote lens control system. Unsurpassed ergonomics give comfort for a long day on the set, totally reliable transmission due to its Dual-Band frequency selector, intuitive, menu-guided operation, unbeatable price / performance ratio and many intelligent details make unique. In cooperation with users this lens control is ergonomically and functional optimized and is available in three versions. It starts with a basic version with one channel: MN-100 MagNum Single Channel, a one-channel version with upgrade possibility: MN-150 MagNum Extendable and the fully equipped two-channel unit: MN-200 MagNum.

MagNum and MagNum Extenable are equipped with handwheels with VariLock II (two freely adjustable end stops), VariFluid (adjustable fluid damping) and mechanical lock. They can take both scales and scale rings. Upon delivery they come with a large scale ring.

All MagNum version include
• The ergonomically optimized hand unit
• Symmetrical design, equally ergonomic for left handed operation
• The compact size of transmitter and receiver
• Lightweight (2-channel receiver 262g and transmitter fully equipped only 577g)
• Transmits in the worldwide free frequency band of 2, 4 GHz
• Intuitive, menu guided operation by membrane keys and color-OLED display
• Four freely assignable hotkeys
• Spectrum Analyzer, shows the best transmission channel
• Calibration of lenses also doable with the receiver (controller)
• Fluid damped hand wheel
• Electronic "Hold", captures the actual settings and keeps them
• Indicator LED for all functions on the receiver (controller)
• Magnifier function for "near" and "remote". (This means, the range around the nearest or the indefinite lens setting is spread especially without losing the opportunity to go to the other end stop.)
• Spreading of any lens range to one turn of the hand wheel
• Selection between scale ring and scale disk
• Record start stop signal for the camera
• Motor power adjustable
• USB port
• Battery level indicator for camera and hand unit
• 5 x 1/4"-threads on the hand unit (transmitter)
• Includes rechargeable battery, type Sony FM 50, Li-ion (art. no: MN-BAT)
• Includes charger for above battery (art. no: MN-CH)

Digital Motor CDM-100
With the new Digital Motor CDM-100, Chrosziel developed an extremely light weight, silent, small and horizontally aligned lens motor. It perfectly suites many major photo, broadcast and cine lenses. Our new engine convinces with its features:
• Perfect for Gimbals, Drones and SteadiCam
• Horizontally aligned
• Extremely light weight: 83 g without Gear and pipe clamp, (including cable/plug), 126 g with pipe clamp
• Extremely silent
• Very small and short housing
• Motor housing with standard 19mm diameter
• Smart gear attachment for secure operation and fast exchange
• Two gear diameters, 40mm & 60mm with mod 0.8 (other upon request)
• Fixed motor cable additionally reducing motor size and weight
• New, Universal Rod Clamp with integrated captive slider - quickly and easily adjustable for use with 15mm or 19mm rods
