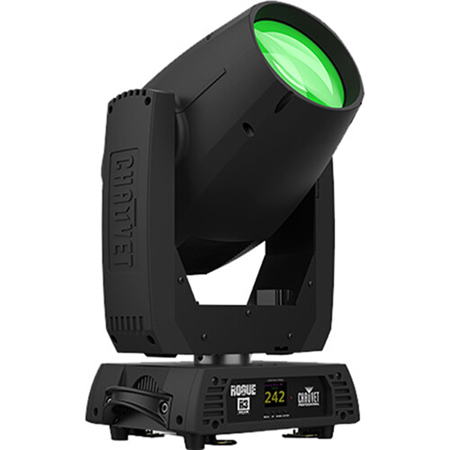

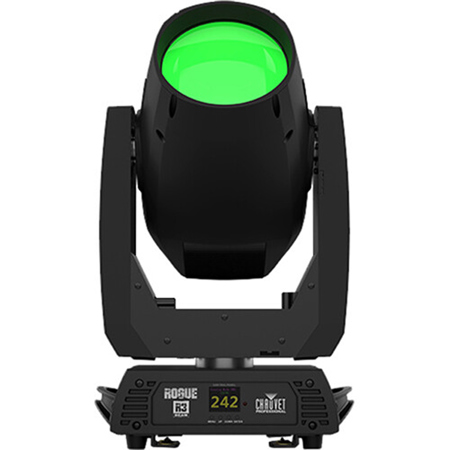

CHAUVET DJ Rogue R3 Beam 300W High-Powered Beam Moving Head Light Fixture

SKU: CHROGR3BEAM MFR: ROGUER3BEAM
Earn VIP Reward Points

Key Features

  • Unleash powerful beams with this 300W moving head light for stunning DJ lighting effects.
  • Create dynamic shows using fast pan & tilt ranges on this moving head DJ effect light.
  • Project vibrant colors with 14 + white options for captivating stage lighting designs.
  • Customize your light show with 17 unique gobos, perfect for any DJ lighting setup.
  • Easily control the Rogue R3 Beam via DMX for seamless integration into existing setups.
  • Enjoy reliable performance with a high-quality Ushio lamp boasting an 8,000-hour life.
See More Product Details
Special Order?Estimated to Ship: 08/08/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$219.99

3 Year

$349.99

5 Year

$689.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET DJ Rogue R3 Beam Specifications

Optical

Optical

Jump to...
  • Light Source

    300W NSL Ushio lamp, 8000 K (color temp), 8,000 hours life expectancy

  • Color Temperature

    At Full: 7657 K

  • CRI

    80.8

  • Front Lens Diameter

    6.02" (153mm)

  • Beam Angle

    0.8 Degree

  • Field Angle

    1.6 Degree

  • Cutoff Angle

    2 Degree

  • Lumens

    Output: 30,878

  • Illuminance

    Total: 208,006 lux @ 15 m

Dynamic Effects

Jump to...
  • Pan and Tilt Ranges

    Pan: 180 Degree, 360 Degree, 540 Degree
    Tilt: 90 Degree, 180 Degree, 270 Degree

  • Colors

    14 + white, split colors, continuous scroll at variable speeds

  • Gobos

    17 + open (17 metal), continuous scroll at variable speeds

  • Dimmer

    Motorized

  • Shutter/Strobe

    Motorized

  • Focus

    Motorized

  • Frost

    Motorized

  • Prism

    8 facets, motorized, rotating
    24 facets, motorized, rotating

  • Strobe Rate

    0 to 15 Hz

  • Move in Black

    Yes

Connections

Jump to...
  • Power Connection

    Edison (Local) plug to Neutrik

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Data Connectors

    3- and 5-pin XLR

  • Cable Length

    Power: 5' (1.5m)

Control

Jump to...
  • Control Protocol

    DMX, RDM

  • DMX Channels

    16 or 19

  • Modes/Personalities

    2 personalities (16, 19)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60 Hz (auto-ranging)

  • Power and Current

    422 W, 4.20 A @ 100 V, 60 Hz
    418 W, 3.55 A @ 120 V, 60 Hz
    411 W, 1.98 A @ 208 V, 60 Hz
    411 W, 1.78 A @ 230 V, 50 Hz
    406 W, 1.68 A @ 240 V, 50 Hz

Certifications/Qualifications

Jump to...
  • Certification

    CE, MET

  • IP Rating

    IP20, dry location

  • Temperature

    Ambient: -4 to 113 Degree F (-20 to 45 Degree C)

Construction/Physical

Jump to...
  • Color

    Exterior: Black

  • Housing Material

    High-impact flame-retardant polymer

  • Dimensions

    12.79 x 8.66 x 21.65" (325 x 220 x 550mm)

  • Weight

    34.4 lbs (15.6kg)

  • UPC Code

    781462220716

About CHAUVET DJ Rogue R3 Beam

If you're seeking a lighting solution that combines power, precision, and versatility, the Rogue R3 Beam 300W High-Powered Beam Moving Head Light Fixture stands out as a professional-grade choice. Engineered to deliver an impressive output of over 208,000 lux at 15 meters, this fixture's 300W Ushio NSL lamp is the powerhouse behind its exceptional brightness and beam intensity.

Crafted for the most demanding lighting scenarios, the Rogue R3 Beam is equipped with a razor-sharp focus capability, narrowing down to a mere 0.8 degrees for piercing aerial effects that cut through any stage setting. The motorized frost and focus options further enhance its adaptability, allowing for smooth transitions between sharp beams and softer washes.

Color expression is limitless with the Rogue R3 Beam's color wheel, which boasts 14 vibrant colors. This feature is perfectly complemented by a gobo wheel containing 17 distinct gobos, offering a rich tapestry of visual possibilities. Both wheels are designed for full scrollability at varying speeds, ensuring that you can create dynamic, animated lighting effects with ease.

For those who thrive on creativity, the Rogue R3 Beam doesn't disappoint. It comes with individually controllable 8 and 24-facet prisms that overlap, multiplying the beam and creating an infinite array of patterns and textures. This functionality unlocks a universe of design potential, making it an ideal choice for concerts, festivals, and theatrical productions where innovation is key.

Integration into any professional lighting setup is seamless, thanks to the unit's compatibility with RDM and DMX protocols. With multiple control personalities, the Rogue R3 Beam offers flexibility and ease of use for lighting technicians of all skill levels.

The Rogue R3 Beam 300W High-Powered Beam Moving Head Light Fixture by Chauvet DJ is not just a lighting fixture; it's a statement of high-tech performance and durability. Whether you're illuminating a live event or creating an immersive experience, this fixture is engineered to exceed expectations and deliver spectacular results every time.

CHAUVET DJ Rogue R3 Beam Features

  • Fully featured, high powered beam fixture with a single color wheel, single static gobo wheel, layerable prisms, and 300 W Ushio NSL lamp rated at 8,000 hours life
  • Fast and precise movement of pan and tilt functions
  • Individually controllable and layerable 8- and 24-facet prisms
  • Frost for even light distribution
  • Tight 0.8 Degree beam for extremely focused areal effects
  • RDM enabled for remote addressing and troubleshooting
  • 17 static gobos for massive visual impact

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Key Features

  • Unleash powerful beams with this 300W moving head light for stunning DJ lighting effects.
  • Create dynamic shows using fast pan & tilt ranges on this moving head DJ effect light.
  • Project vibrant colors with 14 + white options for captivating stage lighting designs.
  • Customize your light show with 17 unique gobos, perfect for any DJ lighting setup.
  • Easily control the Rogue R3 Beam via DMX for seamless integration into existing setups.
  • Enjoy reliable performance with a high-quality Ushio lamp boasting an 8,000-hour life.

What's in the box:

  • CHAUVET Professional Rogue R3 Beam 300W High-Powered Beam Moving Head Light Fixture
  • Neutrik powerCON Power Cord
  • Omega Brackets with Mounting Hardware
  • CHAUVET Professional 2 Year Limited Warranty
