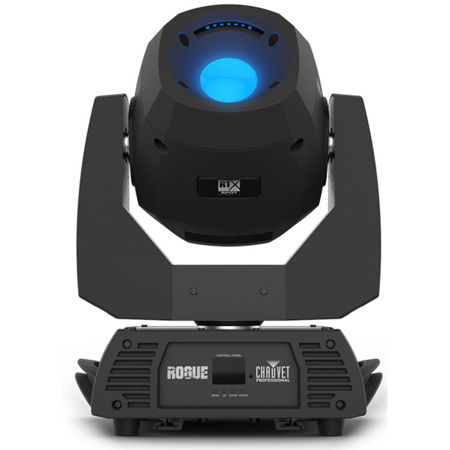

CHAUVET Professional Rogue R1X Spot 170W LED Moving Head Light Fixture with Gobos, Includes powerCON Power Cord and 2x Omega Brackets, 9491K Color Temperature

SKU: CHROGU1XSPOT MFR: ROGUER1XSPOT
Earn VIP Reward Points

Key Features

  • Unleash vibrant light shows with the CHAUVET Rogue R1X Spot's dazzling color wheel.
  • Create dynamic aerial effects using the fast, precise pan and tilt movement.
  • Project custom designs with the easily interchangeable, rotating gobo wheel.
  • Achieve crisp, focused beams with the motorized focus and iris of this spotlight.
  • Enjoy flicker-free operation for video with selectable Pulse Width Modulation (PWM).
  • Easily control this moving head fixture via DMX or RDM for seamless integration.
See More Product Details
Special Order?Estimated to Ship: 08/09/2025
Free Shipping

See Options

Qty
1

Protect your gear with Adorama Protect.* Learn more

2 Year

$179.99

3 Year

$249.99

5 Year

$489.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CHAUVET Professional ROGUE R1X SPOT Specifications

Optical

Optical

Jump to...
  • Light Source

    1 LEDs (CW) 170 W, (7.4 A), 9491 K, 50,000 hours life expectancy

  • Color Temperature Range

    9491K at full

  • Beam Angle

    16 deg.

  • Lumens

    Source: 12000
    Output: 6700

  • Illuminance

    Total: 4620 lux at 5m

  • Selectable Power Output

    50-100

  • Selectable PWM

    600Hz, 1,200Hz, 6,000Hz, 15,000Hz

Dynamic Effects

Jump to...
  • Pan and Tilt

    540 deg. /250 deg.

  • Pan and Tilt Ranges

    180 deg. , 360 deg. , 540 deg. pan/90 deg. , 180 deg. , 250 deg. tilt

  • Colors

    8 + white, split colors, continuous scroll at variable speeds

  • Gobos

    7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    8 + open (8 metal),continuous scroll at variable speeds

  • Gobo Size

    Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4 and 7 (metal); size: 26.9mm (outside), 22.5mm (image), 0.5mm (max. thickness)
    Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 25mm (outside), 23mm (image), 3mm (max thickness)

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Focus

    Motorized

  • Iris

    Motorized

  • Prism

    3 Facets, motorized, rotating

  • Strobe Rate

    0 to 22Hz

  • Move in Black

    Yes

Connections

Jump to...
  • Power Connection

    Edison (Local) plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Data Connectors

    3 and 5-pin XLR

  • Cable Length

    Power: 5' (1.52m)

Control

Jump to...
  • Control Protocol

    DMX, RDM

  • DMX Channels

    16 or 19

  • Modes/Personalities

    2 personalities (16, 19)

Electrical

Jump to...
  • Input Voltage

    100 to 240 VAC, 50/60Hz (auto-ranging)

  • Power Linking

    5 units at 120V; 9 units at 208V; 10 units at 230V

  • Power and Current

    319W, 2.69A at 120V, 60Hz
    303W, 1.49A at 208V, 60Hz
    297W, 1.33A at 230V, 50Hz

Certifications / Qualifications

Jump to...
  • Certifications / Qualifications

    CE, MET
    IP Rating: IP20, dry location

General

Jump to...
  • Housing Material

    High-impact flame-retardant polymer

  • Dimensions

    Single Unit: 11.10 x 14.20 x 17.60" (28.19 x 36.07 x 44.70cm)

  • Weight

    Single Unit: 37.6 lbs (17.06kg)

  • UPC Code

    781462217440

About CHAUVET Professional ROGUE R1X SPOT

From the heart of dynamic stage lighting, the Rogue R1X Spot 170W LED Moving Head Light Fixture emerges as a powerhouse of visual artistry. This professional-grade lighting instrument is engineered to elevate any performance with its advanced features and robust design. The fixture boasts a high-intensity 170W LED light source, casting a sharp 16-degree beam angle that ensures crisp and vivid gobo projections.

The Rogue R1X Spot is a marvel of lighting versatility, equipped with a rotating 3-facet prism that creates mesmerizing aerial effects, captivating audiences with its intricate patterns and sweeps. The motorized iris and focus allow for precise beam shaping, enabling lighting designers to tailor the beam to the desired intensity and size, from tight shafts of light to wide washes that fill the stage.

At the heart of its gobo capabilities, the Rogue R1X Spot features two gobo wheels for creative flexibility. The first wheel includes seven interchangeable gobos, allowing for custom looks and unique designs to match the theme of any event or production. The second wheel is equipped with static gobos that add texture and depth to the visual palette. Both wheels are designed to rotate, providing dynamic movement and transformative scene changes.

Color expression is paramount in stage lighting, and the Rogue R1X Spot delivers with a spectrum of eight stunning colors. The 9491K color temperature ensures that each hue is rendered with exceptional clarity and brilliance, making it a perfect choice for concerts, theatrical productions, and special events where color accuracy is critical.

The inclusion of a powerCON power cord and two Omega brackets with the Rogue R1X Spot ensures a secure and reliable setup. These professional-grade accessories are designed for the rigors of live performance environments, providing peace of mind for touring companies and venue technicians alike.

In summary, the Rogue R1X Spot 170W LED Moving Head Light Fixture is an indispensable tool for creating atmospheric and engaging lighting experiences. Its combination of precision optics, customizable gobos, and vibrant colors make it a top choice for lighting professionals seeking to push the boundaries of visual storytelling.

CHAUVET Professional ROGUE R1X SPOT Features

  • Bold, bright 170W LED light engine for punchy, solid beams
  • Color wheel with 8 colors, split color ability and continuous variable-speed scrolling
  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris and 3-facet prism for stunning visual effects
  • Neutrik powerCON power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable LED maximum output to match legacy Rogue R1 Spots
  • Selectable PWM settings to maintain flicker free operation on camera
  • Simple and complex DMX channel profiles for programming versatility

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Product Documents

User Manual

Key Features

  • Unleash vibrant light shows with the CHAUVET Rogue R1X Spot's dazzling color wheel.
  • Create dynamic aerial effects using the fast, precise pan and tilt movement.
  • Project custom designs with the easily interchangeable, rotating gobo wheel.
  • Achieve crisp, focused beams with the motorized focus and iris of this spotlight.
  • Enjoy flicker-free operation for video with selectable Pulse Width Modulation (PWM).
  • Easily control this moving head fixture via DMX or RDM for seamless integration.

What's in the box:

  • CHAUVET Rogue R1X Spot 170W LED Moving Head Light Fixture with Gobos
  • Neutrik powerCON Power Cord
  • 2x Omega Brackets with Mounting Hardware
  • Quick Reference Guide
  • CHAUVET 2 Year Limited Warranty
