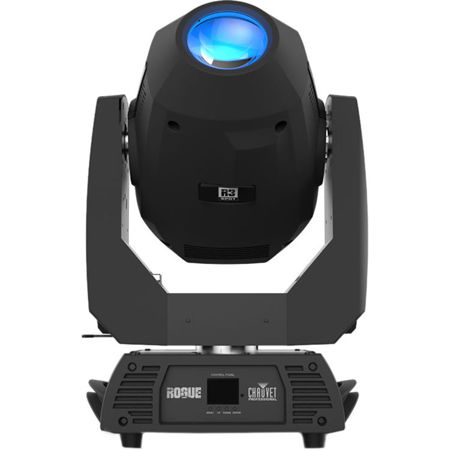

CHAUVET Professional Rogue R3 Spot 300W LED Moving Head Fixture, Includes powerCON Power Cord and 2x Omega Brackets, 7564K Color Temperature

SKU: CHROGU3SPOT MFR: ROGUER3SPOT
Be the first to review this itemAsk a Question
$3,170.00
$3,571.43
Save: $401.43 (11%)
OR
$265/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Unleash vibrant light shows with the CHAUVET Rogue R3 Spot moving head fixture.
  • Create dynamic effects using the Rogue R3 Spot's motorized zoom and focus features.
  • Achieve precise lighting with the R3 Spot's adjustable pan and tilt ranges.
  • Enjoy long-lasting performance with the R3 Spot's 50,000-hour LED light source.
  • Customize your display using the R3 Spot's interchangeable, rotating gobos.
  • Easily control the Rogue R3 Spot via DMX, with 19 or 25 channel options.
See More Product Details
Special Order?Estimated to Ship: 08/13/2025
Free Shipping

See Options

Qty
1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

2 Year

$299.99

3 Year

$449.99

5 Year

$949.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

CHAUVET Professional Rogue R3 Spot Specifications

Optical

Optical

Jump to...

  • Light Source

    1 LED (CW) 300W, (8.8A), 7,564K, 50,000 hours life expectancy

  • Color Temperature

    7564 K at full

  • CRI

    74

  • Beam Angle

    12 deg. to 36 deg.

  • Field Angle

    13 deg. to 37 deg.

  • Zoom Angle

    13 deg. to 37 deg.

  • Illuminance

    At 13 deg. : 12828 lux at 5m
    At 37 deg. : 1768 lux at 5m

  • Selectable PWM

    600Hz, 1,200Hz, 2,000Hz, 4,000Hz, 6,000Hz, 15,000Hz

Dynamic Effects

Jump to...

  • Pan and Tilt

    540 deg. /250 deg.

  • Pan and Tilt Ranges

    180 deg. , 360 deg. , 540 deg. pan/90 deg. , 180 deg. , 250 deg. tilt

  • Colors

    Colors 1: 7 + white, split colors, continuous scroll at variable speeds
    Colors 2: 7 + white, split colors, continuous scroll at variable speeds

  • Gobos

    7 + open (7 metal), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
    8 + open (8 metal), continuous scroll at variable speeds

  • Gobo Size

    Gobo Wheel 1 (rotating): Positions 1, 2, 3, 4 and 7 (metal); size: 28.8mm (outside), 23.8mm (image), 0.5mm (max. thickness)
    Gobo Wheel 1 (rotating): Positions 5 and 6 (glass); size: 27mm (outside), 24mm (image), 3mm (max. thickness)

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Zoom

    Motorized

  • Focus

    Motorized

  • Frost

    Motorized

  • Iris

    Motorized

  • Prism

    3 Facets, motorized, rotating

  • Strobe Rate

    0 to 22Hz

  • Move in Black

    Yes

Connections

Jump to...

  • Power Connection

    Edison (Local) plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Power Output

    Neutrik powerCON

  • Data Connectors

    3 and 5-pin XLR

  • Cable Length

    Power: 5' (1.52m)

Control

Jump to...

  • Control Protocol

    DMX, RDM

  • DMX Channels

    19 or 25

  • Modes/Personalities

    2 personalities (19, 25)

Electrical

Jump to...

  • Input Voltage

    100 to 240 VAC, 50/60Hz (auto-ranging)

  • Power Linking

    3 units at 120V; 5 units at 208V; 6 units at 230V

  • Power and Current

    514W, 4.28A at 120V, 60Hz
    488W, 2.35A at 208V, 60Hz
    492W, 2.14A at 230V, 50Hz

Certifications / Qualifications

Jump to...

  • Certifications / Qualifications

    CE, MET
    IP Rating: IP20, dry location
    Temperature (Ambient): -4 to 113 deg. F (-20 to 45 deg. C)

General

Jump to...

  • Housing Material

    High-impact flame-retardant polymer

  • Dimensions

    14.68 x 11.1 x 23.66" (37.29 x 28.19 x 60.10cm)

  • Weight

    50 lbs (22.68kg)

Other

Jump to...

  • UPC Code

    781462217624

About CHAUVET Professional Rogue R3 Spot

Rogue R3 Spot delivers intense output, crisp optics, sharp focus and maintains a value proposition designed to maximize ROI. This feature-packed moving spot has a bright 300 W LED light engine that produces an even field of light, as well as rotating and static gobos, an 8 position and split-color enabled color wheel and three facet prism to create stunning looks. A quick moving zoom range of 13 - 37 deg. adds to its flexibility of use by giving the Rogue R3 Spot the ability to cover large areas.

CHAUVET Professional Rogue R3 Spot Features

  • Intense 300W LED light engine for punchy, bold beams
  • Zoom angle of 13 deg. to 37 deg. to easily cover stages and surfaces from a distance
  • Perfect gobo morphing between gobo wheels
  • Two color wheels with 7 colors, split color ability and continuous variable speed scrolling
  • Two gobo wheels: one fixed slot scrolling wheel and one rotating, interchangeable, scrolling wheel
  • Iris, 3-facet prism and frost for beam control
  • Beautiful 16-bit LED dimming for ultimate fade control
  • Neutrik powerCON power input/output connections for power linking
  • 3- and 5-pin DMX input/output connections
  • RDM enabled for remote addressing and trouble shooting
  • Selectable PWM settings to maintain flicker free operation on camera
  • Simple and complex DMX channel profiles for programming versatility

Warranty Information

This product has a limited warranty of 24 months for parts and 24 months for labor.

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Product Documents

User Manual

Key Features

  • Unleash vibrant light shows with the CHAUVET Rogue R3 Spot moving head fixture.
  • Create dynamic effects using the Rogue R3 Spot's motorized zoom and focus features.
  • Achieve precise lighting with the R3 Spot's adjustable pan and tilt ranges.
  • Enjoy long-lasting performance with the R3 Spot's 50,000-hour LED light source.
  • Customize your display using the R3 Spot's interchangeable, rotating gobos.
  • Easily control the Rogue R3 Spot via DMX, with 19 or 25 channel options.

What's in the box:

  • CHAUVET Rogue R3 Spot 300W LED Moving Head Fixture
  • Neutrik powerCON Power Cord
  • 2x Omega Brackets with Mounting Hardware
  • Quick Reference Guide
  • CHAUVET 2 Year Limited Warranty
