Chief RPMA261 RPA Elite Custom Projector Mount with Keyed Locking (A Version)

SKU: CHRPMA261

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Chief RPMA261 Specifications

  • Adjustments

    Roll: +/-4deg.
    Pitch: +/-25deg.
    Yaw: 360deg.

  • Load Capacity

    50 lb / 22.68 kg

  • Dimensions (H x W x D)

    1.75" x 6.5" x 5.5" / 44.45 x 165.1 x 139.7 mm

  • UPC Code

    841872146584

About Chief RPMA261

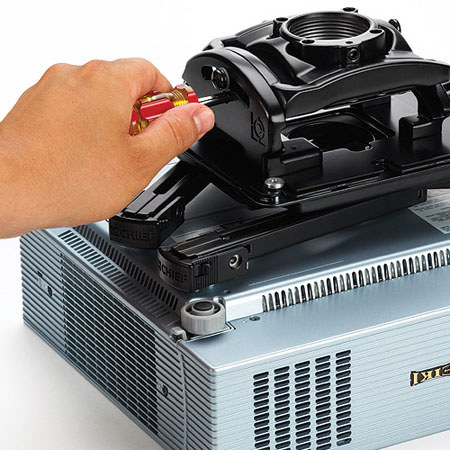

The Chief RPMA261 RPA Elite Custom Projector Mount provides a mounting solution for projectors weighing up to 50 lb (22.7 kg). Included in the pack are an Interface Bracket and all the necessary hardware that ensures quick and easy installation. Centris technology allows for fingertip tilting and rotation of the display and automatically adjusts the mount to support different projector weights. MicroZone adjustments can be used for quick and precise projector registration. Once adjusted, the Elite Mount maintains the registration and the preset adjustments remain unaltered even if the mount is disconnected. For maintenance purposes, you can use the Q-lock quick release lever to quickly connect or disconnect the projector from the mount. In addition, an integrated key and lock system makes the mount tamper-resistant.

Chief RPMA261 Features

  • Microzone Adjustments make projector registration fast and precise (including flush mount installations)
  • Centris Technology enables effortless fingertip positioning and self-adjusts to support different projector weights
  • Quick connect/disconnect for convenient lamp and filter access on most projectors
  • Maintains registration when disconnected and doesn't affect preset adjustments
  • Cable management without additional accessories
  • Q-Lock Quick Release Lever provides quick connect/disconnect of the projector for service and enhanced security with an integrated key and lock system
  • Same great features as the RPA Series, including independent roll, pitch and yaw, integrated cable management and All-Points Security
  • Speed-Connect line of accessories further reduce installation time

Key Features

  • Cable management without additional accessories

What's in the box:

  • Chief RPMA261 RPA Elite Custom Projector Mount
  • Interface Bracket
  • 4 x (10-24) Thumb Nuts
  • All-Points Security Kit
  • 5/32 " Security Hex Key
  • 3 x (M4 x 10mm) Screw Phillips Pan Head Machine
  • 3 x (M4) Washer
  • Chief Warranty
