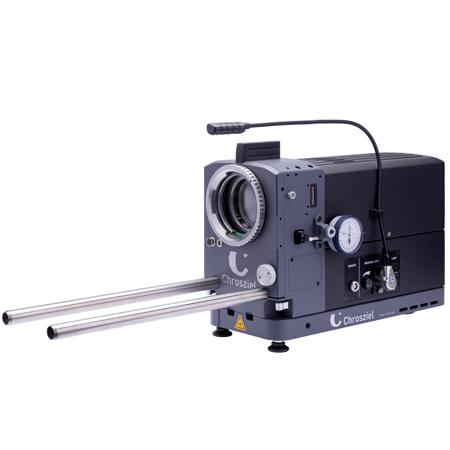

Chrosziel P-TP7II Large Format Lens Testing Projector

You can elevate your lens testing process with the sophisticated P-TP7II Large Format Lens Testing Projector. This high-tech device, optimized for lens service, is designed to test lenses with a diameter of up to 60mm, making it compatible with ARRI XPL, Hawk, Panavision, and other formats like PL, EF, and E.

This advanced projector comes equipped with a power cable and an LED light source of approximately 5000K, paired with a Compound Parabolic Concentrator (CPC). This ensures an evenly illuminated image circle of 60mm diameter, simulating camera sensors up to XPL or medium format.

The projector also features a 2x MultiPort-Connector for data access, a flexible Goose-neck Orientation Lamp, and a filter insert 3x3 with a filter holder. The glass way insert, wired remote control with a 10m cable, and an integrated digital motor for back-focus adjustment further enhance its functionality.

The P-TP7II Projector also includes an integrated lens support for 19mm rods and a manual. The 3x3 glass insert between the lens mount and reticle simulates the glass way of a specific camera, accommodating up to 5mm thickness. The 3x3 filter insert between the light engine and reticle allows the insertion of color correction filters up to 4.6mm thickness.

For data access, the projector features two Multiport Data Converter to USB connectors on both sides, allowing electronic lens data access, including /i-Data and LDS meta data. This innovative projector offers maximum precision, with less than 5ym plane parallelism between the mount and reticle, making it a reliable choice for professionals in the photography and cinematography industry.
