CHASING Blueprint Oculus M1200d Dual Frequency Multibeam Imaging Sonar

SKU: CHSBP1200 MFR: CM2PM-BP1200

Key Features

  • Enhance your underwater drone with this dual-frequency imaging sonar for detailed scans.
  • Capture high-resolution images with a 0.10" range resolution using this advanced sonar.
  • Achieve superior underwater navigation with a wide 130° horizontal aperture sonar beam.
  • Ensure reliable performance with a durable, anodized aluminum sonar, depth-rated to 1,640'.
  • This sonar accessory offers versatile use, with a 12V to 32V DC non-isolated voltage supply.
  • Experience superior sonar imaging with a max 40Hz update rate for real-time data analysis.
See More Product Details
Special Order?Estimated to Ship: 09/16/2025
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHASING Blueprint Oculus M1200d Specifications

Sonar
  • Material

    Anodized aluminum

  • Depth Rating

    1,640.42' (500m)

  • Temp. Range (Storage)

    -4 Degree F to 122 Degree F (-20 Degree C to +50 Degree C)

  • Temp. Range (Operating)

    23 Degree F to 95 Degree F (-5 Degree C to +35 Degree C)

  • Dimensions

    4.92 x 4.80 x 2.44" (125 x 122 x 62mm)

  • Weight

    34.58 oz (980g) (Air), 12.70 oz (360g) (Water)

Electrical

Jump to...
  • Connector

    Impulse IE55 Series, 6-Way

  • Communications

    2-Wire DSL Extender Module, 4-Wire 100-BaseT Ethernet

  • Supply Voltage

    12V to 32V DC, Non-Isolated

  • Power Consumption

    10W to 35W (Model and Range Dependant)

  • Integrated Sensors

    Water Pressure and Temperature (for Velocity-of-Sound Calculation)

Performance

Jump to...
  • Operating Frequency

    1.2MHz/2.1MHz

  • Range (Max)

    131.23' (40m)/32.81' (10m)

  • Range (Min)

    0.33' (0.1m)

  • Range Resolution

    0.10" (2.5mm)/0.10" (2.5mm)

  • Update Rate (Max)

    40Hz

  • Horizontal Aperture

    130 Degree /60 Degree

  • Vertical Aperture

    20 Degree /12 Degree

  • Number of Beams (Max)

    512

  • Angular Resolution

    0.6 Degree /0.4 Degree

  • Beam Separation

    0.25 Degree /0.16 Degree

  • UPC Code

    843722100753

About CHASING Blueprint Oculus M1200d

CHASING Blueprint Oculus M1200d Multibeam Imaging Sonar
Dual frequency shorter range, high-resolution multibeam imaging sonar, ideal for up close inspections of submerged structures and diver monitoring in turbid waters. The Blueprint Oculus M1200d multibeam imaging sonar is designed for effective target identification in turbid waters. The M1200d's high operational resolution features a peak frequency of 2.1MHz, an integrated velocimeter for improved accuracy, and a range resolution of 2.5mm for detailed close-range inspections.

Compatible Models & Mounting Method

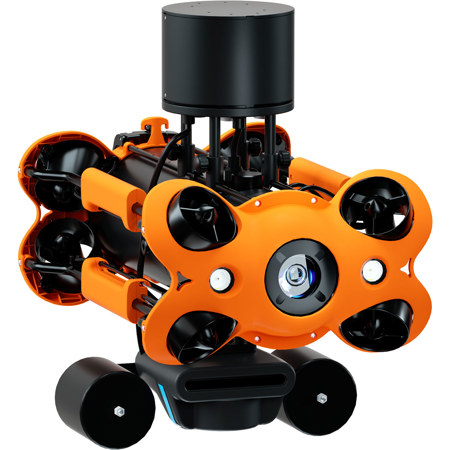

Compatible with CHASING M2 PRO MAX and CHASING X underwater drones.

Real-Time Underwater Sonar Imaging
The imaging sonar generates images by transmitting pulses of sound and receiving echoes in multiple directions across the observation range. Imaging sonar can penetrate turbid waters, independent of underwater visibility, making it adaptable to diverse water environments.

Dual-Frequency Modes for Versatile Detection
1.2MHz Low-Frequency Mode and 2.1MHz High-Frequency Mode.

Compact and Portable Design
The imaging sonar device features a compact, streamlined design that facilitates seamless integration with underwater ROV platforms.

CHASING Blueprint Oculus M1200d Features

  • CHASING Blueprint Oculus M1200d Multibeam Imaging Sonar
  • Compatible with CHASING M2 PRO MAX and CHASING X underwater drones
  • Real-Time Underwater Sonar Imaging
  • Dual-Frequency Modes for Versatile Detection
  • Compact and Portable Design

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enhance your underwater drone with this dual-frequency imaging sonar for detailed scans.
  • Capture high-resolution images with a 0.10" range resolution using this advanced sonar.
  • Achieve superior underwater navigation with a wide 130° horizontal aperture sonar beam.
  • Ensure reliable performance with a durable, anodized aluminum sonar, depth-rated to 1,640'.
  • This sonar accessory offers versatile use, with a 12V to 32V DC non-isolated voltage supply.
  • Experience superior sonar imaging with a max 40Hz update rate for real-time data analysis.

What's in the box:

  • CHASING Blueprint Oculus M1200d Dual Frequency Multibeam Imaging Sonar
  • CHASING 1 Year Limited Warranty
