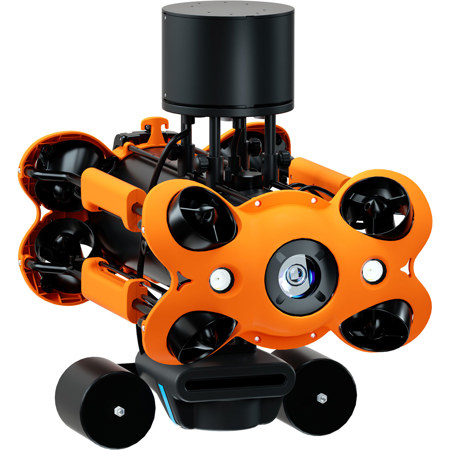

CHASING Blueprint Oculus M370S Multibeam Imaging Sonar

SKU: CHSBP370 MFR: CM2PM-BP370

Key Features

  • Enhance your drone with the Oculus M370S Sonar for detailed underwater imaging.
  • Capture clear sonar images up to 656ft with this durable, lightweight drone accessory.
  • This CHASING sonar offers a wide 130° horizontal view for comprehensive scans.
  • Ensure precise navigation with the Oculus M370S, featuring high-resolution sonar.
  • Operating Temp: 23°F to 95°F - Use this sonar in various aquatic environments.
  • Get real-time insights with a fast 40Hz update rate using this sonar system.
See More Product Details
Special Order?Estimated to Ship: 08/23/2025
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHASING Blueprint Oculus M370S Specifications

Sonar
  • Material

    Anodized aluminum

  • Depth Rating

    1,640.42' (500m)

  • Temp. Range (Operating)

    23 Degree F to 95 Degree F (-5 Degree C to +35 Degree C)

  • Temp. Range (Storage)

    -4 Degree F to 122 Degree F (-20 Degree C to +50 Degree C)

  • Dimensions (L x W x H)

    4.92 x 4.80 x 2.44" (125 x 122 x 62mm)

  • Weight

    34.58 oz (980g) (Air), 12.70 oz (360g) (Water)

Electrical

Jump to...
  • Connector

    Impulse IE55 Series, 6-Way

  • Communications

    2-Wire DSL Extender Module, 4-Wire 100-BaseT Ethernet

  • Supply Voltage

    12V to 32V DC, Non-Isolated

  • Power Consumption

    10W to 35W (Model and Range Dependant)

  • Integrated Sensors

    Water Pressure and Temperature (for Velocity-of-Sound Calculation)

Performance

Jump to...
  • Operating Frequency

    375 kHz

  • Range (Max)

    656.17' (200m)

  • Range (Min)

    0.66' (0.2m)

  • Range Resolution

    0.26" (8mm)

  • Update Rate (Max)

    40Hz

  • Horizontal Aperture

    130 Degree

  • Vertical Aperture

    20 Degree

  • Number of Beams (Max)

    256

  • Angular Resolution

    2 Degree

  • Beam Separation

    0.5 Degree

  • UPC Code

    843722100739

About CHASING Blueprint Oculus M370S

CHASING Blueprint Oculus M370S Multibeam Imaging Sonar
Long-range multibeam imaging sonar for murky water surveys and inspections, best suited for long-range navigation and open-water search and recovery missions. The Blueprint Oculus M370s multibeam imaging sonar is designed for effective target identification in turbid waters. The M370's low frequency allows for an operating distance up to 200m for extended visuals.

Compatible Models & Mounting Method
Compatible with CHASING M2 PRO MAX and CHASING X underwater drone models.

Real-Time Underwater Sonar Imaging
The imaging sonar generates images by transmitting pulses of sound and receiving echoes in multiple directions across the observation range. Imaging sonar can penetrate turbid waters, independent of underwater visibility, making it adaptable to diverse water environments.

Extended Detection Range
The M370s imaging sonar offers an impressive detection range from 0.2 to 200 meters, enabling comprehensive long-distance target searches and precise close-range target observation.

Compact and Portable Design
The imaging sonar device features a compact, streamlined design that facilitates seamless integration with underwater robotic platforms.

CHASING Blueprint Oculus M370S Features

  • Compatible with CHASING M2 PRO MAX and CHASING X underwater drone
  • Real-Time Underwater Sonar Imaging
  • Extended Detection Range
  • Compact and Portable Design

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Enhance your drone with the Oculus M370S Sonar for detailed underwater imaging.
  • Capture clear sonar images up to 656ft with this durable, lightweight drone accessory.
  • This CHASING sonar offers a wide 130° horizontal view for comprehensive scans.
  • Ensure precise navigation with the Oculus M370S, featuring high-resolution sonar.
  • Operating Temp: 23°F to 95°F - Use this sonar in various aquatic environments.
  • Get real-time insights with a fast 40Hz update rate using this sonar system.

What's in the box:

  • CHASING Blueprint Oculus M370S Multibeam Imaging Sonar
  • CHASING 1 Year Limited Warranty
