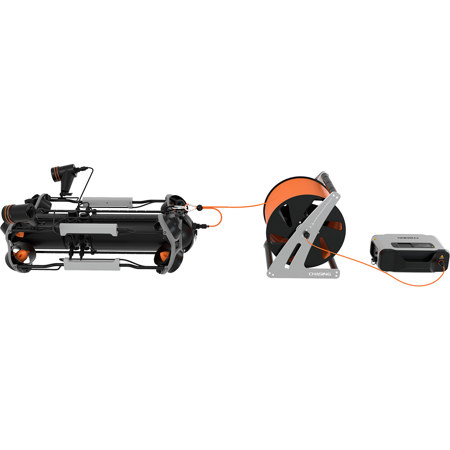

CHASING Shore-Base Power Supply System with 100m Tether Cable for M2 PRO MAX ROV

SKU: CHSCM2PM100 MFR: CM2PM-C-SPSS100
Earn VIP Reward Points

Key Features

  • Extend your CHASING M2 PRO MAX ROV missions with this shore-based power supply system.
  • Enjoy uninterrupted underwater exploration with a reliable, extended drone battery life.
  • This system includes a 100m tether cable for vast operational range and flexibility.
  • Maintain optimal drone performance in diverse conditions with wide temperature range.
  • Ensure safe operation with included insulating gloves and robust safety features.
  • Get real-time data with the LCD screen, enhancing your ROV control and efficiency.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHASING SHORE-BASE POWER SUPPLY Specifications

General

General

Jump to...
  • Compatibility

    CHASING M2 PRO MAX ROV

  • Battery Capacity

    33.6AH

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    4.72 x 13.91" (120 x 353.5mm)

  • Weight

    11.02 lbs (5kg)

Power Supply Box

Jump to...
  • IP Rating

    IP21

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Humidity

    5%-95% RH, no condensation

  • LCD Screen

    Resolution: 320 x 240
    Touchable

  • Ethernet Port Rate

    10/100Mbps

  • Input Parameters

    90-125VAC 50/60HZ,15A MAX
    200-264VAC 50/60HZ,10A MAX

  • Output Parameters of HV Port

    490VDC, 1500W MAX@110V
    490VDC,2000W MAX@220V

  • Output Parameters of RC Port

    24VDC,50W MAX

  • Effectiveness

    >= 92%

  • Dimensions

    9.05 x 12.40 x 4.64" (230 x 315 x 118mm)

  • Weight

    8.59 lbs (3.9kg)

HV Tether Cable

Jump to...
  • IP Rating

    IP54

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Input/output Parameters

    490VDC,4.1A Max

  • Dimensions

    12.63 x 14.96 x 13.46" (321 x 380 x 342mm)

  • Weight (without cable)

    9.7 lbs (4.4kg)

HV Reel

Jump to...
  • Tensile Capacity

    250kgf

  • Tethering Capacity

    +5-10g (in fresh water)

  • Wire Gauge

    27awg (yellow and white)
    20awg (red and black)

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Length

    328.08' (100m)

  • Diameter

    0.28" (7.2mm)

  • Weight

    35g/m

Power Supply Bin

Jump to...
  • IP Rating

    IP68, 200m, voltage-resistance

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Input Parameters

    490VDC,3.3A MAX

  • Output Parameters

    24VDC, 60A MAX

  • Effectiveness

    >= 93%

  • Dimensions

    4.72 x 14.17" (120 x 360mm)

  • Weight

    5.29 oz (2.7kg)

  • UPC Code

    843722101224

Designed For Use With:

  • CHASING M2 PRO MAX

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About CHASING SHORE-BASE POWER SUPPLY

With the CHASING Shore-Base Power Supply System (C-SPSS), specifically designed for the CHASING M2 PRO MAX ROV, you can achieve uninterrupted underwater operations with ease. This innovative system features a battery compartment design that allows for straightforward installation and delivers a robust maximum output power of 1,500W. This ensures that your ROV can operate continuously, 24/7, without the risk of power outages, significantly enhancing operational efficiency.

The C-SPSS comes equipped with a 100-meter tether cable, providing ample length for extensive operational coverage. This long-distance power supply capability allows for unrestricted ROV operation, making it ideal for a variety of demanding applications such as scientific exploration, environmental protection, water conservancy, hydropower inspections, hull and dock inspections, and emergency rescue missions. The high-power cable is engineered to withstand up to 250kgf, ensuring reliable performance even in challenging aquatic environments.

Designed for user convenience, the C-SPSS is a plug-and-play system that is easy to install and quick to start up. Its advanced multiple protection system includes features such as leakage protection, overcurrent protection, undervoltage protection, overvoltage protection, short circuit protection, and high temperature protection. These safety measures ensure secure operation, safeguarding both the equipment and the user.

For added convenience, the C-SPSS is housed in a CHASING advanced trolley case, which boasts a protective structure at military police grade. This makes the system light, portable, and easy to store, providing comprehensive protection and ease of transport.

By addressing common challenges such as short battery life and frequent battery replacements, the CHASING Shore-Base Power Supply System offers a superior solution for continuous ROV operations, enabling the simultaneous use of up to five accessories. This makes it an indispensable tool for professionals seeking efficient and reliable underwater exploration and inspection capabilities.

CHASING SHORE-BASE POWER SUPPLY Features

  • Continuous power supply, 24/7 operation
  • Long-distance power supply to realize unrestricted operation
  • Easy to install, plug-and-play
  • Efficient security, multiple protection
  • Easy to take, comprehensive protection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Extend your CHASING M2 PRO MAX ROV missions with this shore-based power supply system.
  • Enjoy uninterrupted underwater exploration with a reliable, extended drone battery life.
  • This system includes a 100m tether cable for vast operational range and flexibility.
  • Maintain optimal drone performance in diverse conditions with wide temperature range.
  • Ensure safe operation with included insulating gloves and robust safety features.
  • Get real-time data with the LCD screen, enhancing your ROV control and efficiency.

What's in the box:

  • CHASING Shore-Based Unit
  • High-Voltage Reel
  • ROV-Based Unit
  • 100m Tether Cable
  • 16.4' HV Tether Cable
  • 9.84' RC Tether Cable
  • 16.4' AC Power Cord
  • Insulating Gloves
  • Pull Rod Box
  • 4x O-Ring
  • CHASING 1 Year Limited Warranty
