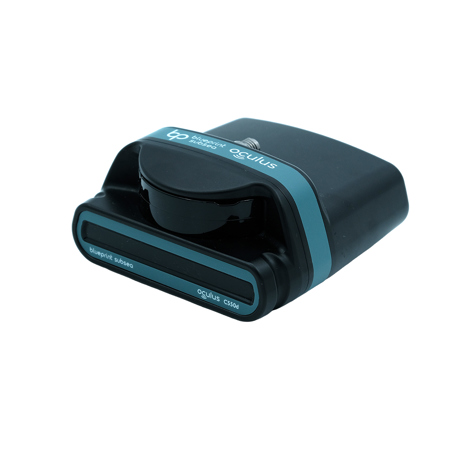

CHASING Blueprint Subsea Oculus C550D Dual-Frequency Multibeam Imaging Sonar

SKU: CHSCM2PMBP MFR: CM2PM-BP550

Key Features

  • Capture detailed underwater images with the CHASING sonar's multibeam technology.
  • Achieve superior flight stability for your drone, even in challenging conditions.
  • Enjoy extended range with the CHASING Oculus C550D, expanding your exploration.
  • Use GPS for precise drone positioning and easy return-to-home functionality.
  • Navigate confidently with obstacle avoidance, protecting your CHASING investment.
  • Benefit from long flight time, maximizing your data collection with this sonar system.
See More Product Details
Ships from Manufacturer?
Calculate Shipping

See Options

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHASING OCULUS C550D Specifications

Electrical

Electrical

Jump to...
  • Connector

    Impulse IE55 Series 6-way

  • Communication

    4-wire 100-BaseT Ethernet, 2-wire DSL extender module

  • Supply voltage

    12V to 32V DC non-isolated

  • Power consumption

    10W to 35W range dependent

Mechanical

Jump to...
  • Material

    Anodized Aluminum

  • Depth rating

    1640' (500m)

  • Temperature range

    Storage: -4 Degree F to 122 Degree F (-20 Degree C to 50 Degree C)
    Operating: 23 Degree F to 95 Degree F (-5 Degree C to 35 Degree C)

Performance

Jump to...
  • Range

    Max: 328' (100m)/98.43' (30m)
    Min: 7.87" (0.2m)

  • Beam separation

    0.5 Degree/0.35 Degree

  • Range resolution

    0.31" (8mm)/0.19" (5mm)

  • Update rate

    40Hz (max)

  • Vertical aperture

    20 Degree/20 Degree

  • Angular resolution

    2.24 Degree/1.5 Degree

  • Horizontal aperture

    120 Degree/90 Degree

  • Operating frequency

    550kHz/820kHz

  • Number of beams

    256 (max)

Physical

Jump to...
  • Dimensions

    4.92 x 4.80 x 2.44" (125 x 122 x 62mm)

  • Weight

    Air: 34.52 oz (980g)
    Water: 12.68 oz (360g)

About CHASING OCULUS C550D

The CHASING Blueprint Subsea Oculus C550d is a state-of-the-art dual-frequency multibeam imaging sonar designed for underwater exploration and mapping. Featuring advanced imaging capabilities, the Oculus C550d provides high-resolution, detailed underwater scans suitable for professional applications such as marine research, underwater inspection, and search-and-rescue operations. Its dual-frequency system enhances target detection and image clarity across various depths and conditions, making it an essential tool for navigating and studying the underwater environment with precision and efficiency.

CHASING OCULUS C550D Features

  • High-resolution imaging with dual-frequency multibeam sonar
  • Advanced underwater mapping using the CHASING Blueprint Subsea Oculus C550d
  • Precise seabed and obstacle detection with multibeam imaging technology

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Capture detailed underwater images with the CHASING sonar's multibeam technology.
  • Achieve superior flight stability for your drone, even in challenging conditions.
  • Enjoy extended range with the CHASING Oculus C550D, expanding your exploration.
  • Use GPS for precise drone positioning and easy return-to-home functionality.
  • Navigate confidently with obstacle avoidance, protecting your CHASING investment.
  • Benefit from long flight time, maximizing your data collection with this sonar system.

What's in the box:

  • CHASING Blueprint Subsea Oculus C550D Dual-Frequency Multibeam Imaging Sonar
  • Sacrificial Anode
  • 32.8' Deck Cable
  • Deck Cable Splitter Lead
  • 6.5' Installation Cable Whip
  • Universal AC-to-DC 24V Power Supply
  • Oculus ViewPoint Windows Software
  • Peli Transit Case
  • User Manual
  • CHASING 1 Year Limited Warranty
