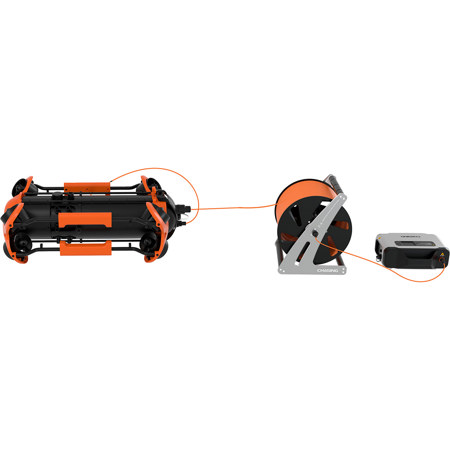

CHASING Shore-Base Power Supply System with 100m Tether Cable for M2 PRO ROV

SKU: CHSCSPSS100 MFR: C-SPSS100
Earn VIP Reward Points

Key Features

  • Extend your CHASING M2 PRO ROV missions with this 100m tether power supply system.
  • Enjoy uninterrupted underwater exploration; this shore-based unit enhances battery life.
  • This power system ensures safe, reliable operation with its insulated components.
  • Maintain optimal performance in diverse conditions with wide temperature tolerance.
  • Get real-time data via the LCD screen, ensuring effective power management.
  • Durable & portable: Weighing just 11 lbs, take your CHASING ROV power supply anywhere!
See More Product Details
Special Order?Estimated to Ship: 08/14/2025
Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CHASING SHORE-BASE POWER SUPPLY Specifications

General

General

Jump to...
  • Compatibility

    CHASING M2 PRO ROV

  • Battery Capacity

    33.6AH

  • Battery Material

    Lithium ion

  • Battery Quantity

    1

Physical Details

Jump to...
  • Dimensions

    4.72 x 13.91" (120 x 353.5mm)

  • Weight

    11.02 lbs (5kg)

Power Supply Box

Jump to...
  • IP Rating

    IP21

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Humidity

    5%-95% RH, no condensation

  • LCD Screen

    Resolution: 320 x 240
    Touchable

  • Ethernet Port Rate

    10/100Mbps

  • Input Parameters

    90-125VAC 50/60HZ,15A MAX
    200-264VAC 50/60HZ,10A MAX

  • Output Parameters of HV Port

    490VDC, 1500W MAX@110V
    490VDC,2000W MAX@220V

  • Output Parameters of RC Port

    24VDC,50W MAX

  • Effectiveness

    >= 92%

  • Dimensions

    9.05 x 12.40 x 4.64" (230 x 315 x 118mm)

  • Weight

    8.59 lbs (3.9kg)

HV Tether Cable

Jump to...
  • IP Rating

    IP54

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Input/output Parameters

    490VDC,4.1A Max

  • Dimensions

    12.63 x 14.96 x 13.46" (321 x 380 x 342mm)

  • Weight (without cable)

    9.7 lbs (4.4kg)

HV Reel

Jump to...
  • Tensile Capacity

    250kgf

  • Tethering Capacity

    +5-10g (in fresh water)

  • Wire Gauge

    27awg (yellow and white)
    20awg (red and black)

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Length

    328.08' (100m)

  • Diameter

    0.28" (7.2mm)

  • Weight

    35g/m

Power Supply Bin

Jump to...
  • IP Rating

    IP68, 200m, voltage-resistance

  • Operating Temperature

    14 - 122 Degree F (-10-+50 Degree C)

  • Input Parameters

    490VDC,3.3A MAX

  • Output Parameters

    24VDC, 60A MAX

  • Effectiveness

    >= 93%

  • Dimensions

    4.72 x 14.17" (120 x 360mm)

  • Weight

    5.29 oz (2.7kg)

  • UPC Code

    0843722101538

Designed For Use With:

  • CHASING M2 PRO

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

About CHASING SHORE-BASE POWER SUPPLY

For those seeking uninterrupted underwater exploration and inspection, the CHASING Shore-Base Power Supply System (C-SPSS) with a 100m Tether Cable is the ideal solution for the CHASING M2 PRO ROV. This system is meticulously designed to enhance the operational efficiency of your ROV by providing a continuous power supply, eliminating the need for frequent battery replacements. With a robust maximum output power of 1,500W, the C-SPSS ensures that your ROV can operate 24/7 at full capacity, supporting up to five accessories simultaneously.

The C-SPSS is equipped with a 100-meter high-power transmission cable, allowing for extensive operational coverage and ensuring reliable performance even in challenging underwater environments. This cable is engineered to withstand up to 250kgf, providing a secure and stable connection that supports long-distance power supply without restrictions.

Installation is straightforward with the C-SPSS's user-friendly battery compartment design, offering a plug-and-play setup that allows for quick deployment. Safety is paramount, and the system is fortified with a comprehensive multiple protection system. This includes leakage protection, overcurrent protection, undervoltage protection, overvoltage protection, short circuit protection, and high temperature protection, ensuring the utmost safety for users during operation.

The CHASING Shore-Base Power Supply System is not only efficient but also portable. It comes with an advanced trolley case featuring a military-grade protective structure, making it lightweight, easy to transport, and convenient for storage. This system is perfect for a wide range of applications, including scientific exploration, environmental protection, water conservancy and hydropower inspection, hull and dock inspection, and emergency rescue operations.

By addressing the challenges of short battery life and frequent replacements, the C-SPSS significantly enhances the operational capabilities of the CHASING M2 PRO ROV, making it an indispensable tool for professionals in various industries.

CHASING SHORE-BASE POWER SUPPLY Features

  • Continuous power supply, 24/7 operation
  • Long-distance power supply to realize unrestricted operation
  • Easy to install, plug-and-play
  • Efficient security, multiple protection
  • Easy to take, comprehensive protection

Warranty Information

This product has a limited warranty of 12 months.

Key Features

  • Extend your CHASING M2 PRO ROV missions with this 100m tether power supply system.
  • Enjoy uninterrupted underwater exploration; this shore-based unit enhances battery life.
  • This power system ensures safe, reliable operation with its insulated components.
  • Maintain optimal performance in diverse conditions with wide temperature tolerance.
  • Get real-time data via the LCD screen, ensuring effective power management.
  • Durable & portable: Weighing just 11 lbs, take your CHASING ROV power supply anywhere!

What's in the box:

  • CHASING Shore-Based Unit
  • 100m Tether Cable
  • High-Voltage Reel
  • ROV-Based Unit
  • 16.4' HV Tether Cable
  • 9.84' RC Tether Cable
  • 16.4' AC Power Cord
  • Insulating Gloves
  • Pull Rod Box
  • 4x O-Ring
  • CHASING 1 Year Limited Warranty
