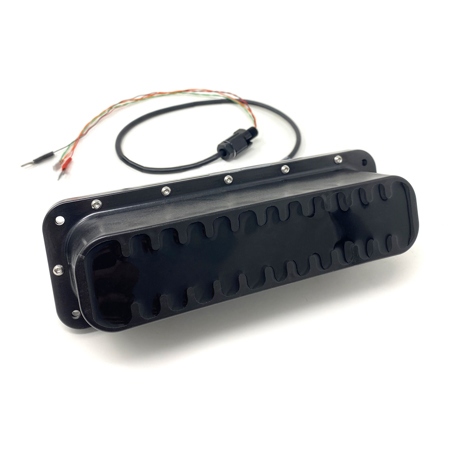

CHASING Omniscan 450 FS Sonar for M2 PRO MAX ROV, 100m Range
SKU: CHSOS450FSC1 MFR: OS450FS-CHASING-100
Key Features
- Enhance your CHASING M2 PRO MAX ROV with this Omniscan 450 FS Sonar system.
- Achieve up to 100m range with the Omniscan Sonar, perfect for underwater inspections.
- Maximize your ROV's capabilities with high-resolution sonar imaging at 450 kHz.
- The Omniscan 450 FS offers a wide 50-degree beam height for comprehensive scans.
- Get real-time data via Ethernet cable, ensuring seamless integration with your ROV setup.
- Durable design, rated to 100m depth, ensures reliable underwater performance with your drone.
Special Order Item?Estimated to Ship: 09/17/2025
Calculate Shipping
See Options
Protect your gear with Adorama Protect.* Learn more
1 Year
$369.00
2 Year
$699.00
3 Year
$949.00
Available to U.S. customers only.
Need help? Ask our experts.
Overview
Compare
Specs
Protection
Q&A
About CHASING Omniscan 450 FS
The Omniscan 450FS, is the most affordable forward imaging solution on the market, and it is now available for the M2 Pro Max ROV platform! The days of paying tens of thousands of dollars for imaging sonar capabilities are over!
The Omniscan 450 FS is ideally suited for forward looking ROV applications. The transducer and electronics are housed in a single enclosure with the CHASING Ethernet + power interface.
As the M2 Pro Max moves, Cerulean SonarView "paints" the image of the scanned area of the sea floor giving excellent situational awareness in the murkiest conditions. For vehicles without positioning information, Omniscan's Dopper Position Tracking can be used for translational information in the direction of the beam. Using a pair of Omniscan 450 FS units, one forward and one 90 degrees to either side, full 2d motion tracking is available.
Operator Scanning
Using Omniscan 450 FS on an M2 Pro Max, the scanning is under the direct control of the ROV driver so that they can focus on specific areas of interest rather than waiting for a mechanical scanning sonar to slowly come around to sweep the particular sector they want to see. Using the "Heading Up" mode in SonarView makes this manual scanning very intuitive and provides excellent situational awareness.
CHASING Omniscan 450 FS Features
- Affordable forward imaging solution for M2 PRO MAX ROV platform
- Integrated transducer and electronics in a single enclosure
- Cerulean SonarView provides excellent situational awareness
- Doppler Position Tracking for translational information
- Manual scanning control with "Heading Up" mode in SonarView
Warranty Information
This product has a limited warranty of 12 months.
