Chief TS118SU Small Thinstall Dual Swing Arm Wall Mount, 18" Extension

SKU: CHTS118SU

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Why Did You Choose This?CYNTHIA W : Has all the details that I want for my TV mount. Length of extension, ability to control cords, lean profile.

Reviews about this item

Review Summary

Chief TS118SU Specifications

  • Maximum Extension

    18" (457.2mm)

  • Maximum Screen Thickness

    5" (127mm)

  • Mounting Pattern Compatibility

    75 x 75, 100 x 100, 200 x 100, 200 x 200mm (Universal Versions)

  • Orientation

    Landscape, Portrait

  • Pivot (numerical value)

    +/-90deg. (depending on screen width)

  • Post-Installation Leveling (Roll)

    Yes

  • Solution Type

    Universal

  • Tilt

    + 0deg., - 12deg.

  • Typical Screen Sizes

    10 - 32" (254 - 812.8mm)

  • Wall Stud Compatibility (inches)

    Single Stud

  • Load Capacity

    35 lbs (15.9kg)

  • Dimensions (H x W x D)

    11.6 x 13 x 1.5" (294.64 x 330.2 x 38.10mm)

  • UPC Code

    841872153551

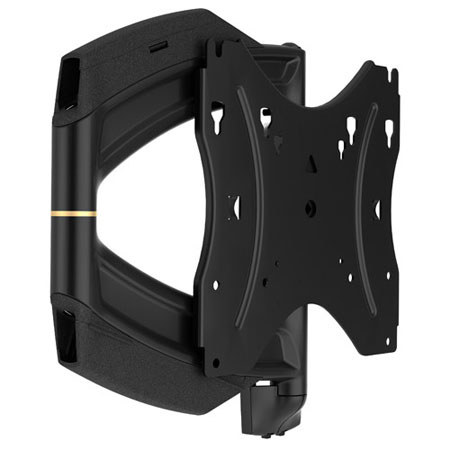

About Chief TS118SU

The Chief TS118SU Small Thinstall Dual Swing Arm Wall Mount is an ideal way to install 10-32" TVs weighing up to 35 lbs (15.9 kg). The well-balanced TS118SU Wall Mount features tilt friction and arm tension adjustment to deal with distracting reflections and achieve the optimal viewing angle. It also comes with a glide lock and a 1-piece steel bracket to smoothen the installation process. In addition, a sliding flag enhances security, while the lateral shift increases flexibility.

Designed to be mounted on a concrete block or clay brick wall, the TS118SU Thinstall Small Dual Swing Arm Wall Mount extends up to 18" (457mm). Included swing arms can be collapsed to a depth of 1.5" (38 mm) and extended up to 25" (635 mm) Cable management covers can be opened on upper and lower swing arms by simply unhinging the center tabs and lifting the covers to the open position.

Chief TS118SU Features

  • Ultra Low Profile Sleek design collapses to 1.5" (38 mm), providing an ultra-low profile for all types of TVs, including LED, LCD and Plasma
  • Extends up to 18" (457 mm) Full extension maximizes viewing potential
  • Centris low-profile tilt Provides up to 12deg. of effortless fingertip tilt to achieve optimal viewing angles
  • Integrated Cable Management Enclosed, tool-free cable covers make it easy to route power and signal cables and connect to the wall for a seamless installation

Key Features

  • Extends up to 18" (457 mm) Full extension maximizes viewing potential

What's in the box:

  • Chief TS118SU Small Thinstall Dual Swing Arm Wall Mount
  • M4x12 / M4x16 / M4x25 mm Screws
  • M5x12 / M5x16 / M5x25 mm Screws
  • M6x12 / M6x16 / M6x25 mm Screws
  • 1/4 x 2 1/2 " Screw
  • M4 / M5 and 1/4 " Spacers
  • Concrete Anchor
  • 3/16 " Hex Key (T)
  • Chief Warranty
