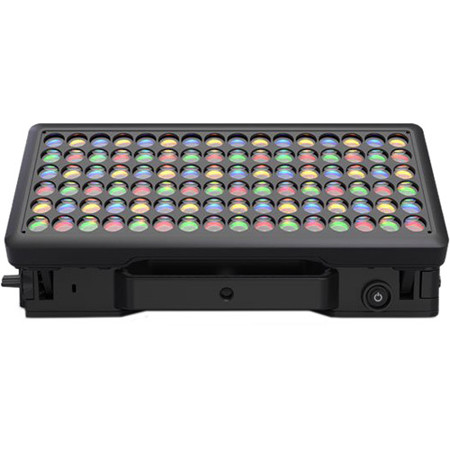

CHAUVET Professional WELL Pad 1-3W Outdoor LED Wash Light, 4 Pack
See all CHAUVET Professional items

CHAUVET Professional WELL Pad 1-3W Outdoor LED Wash Light, Includes Charging Case and powerCON Power Cable with Edison Plug, 4 Pack

SKU: CHWELLPADX4
Be the first to review this item

This item is no longer available.

Recommended Alternatives

CHAUVET Professional COLORado1: Picture 1 regular
CHAUVET Professional COLORado1 Quad Zoom Indoor/Outdoor Variable-White Light
$1,013.50$899.00
CHAUVET Professional COLORado 2 Solo: Picture 1 regular
CHAUVET Professional COLORado 2 Solo Quad-Color RGBW LED Wash Light
$1,388.00$1,230.50
CHAUVET Professional COLORado Batten 72X: Picture 1 regular
CHAUVET Professional COLORado Batten 72X IP65 LED Wash Light, 3200 to 10000K
$1,581.50$1,403.00
CHAUVET Professional COLORado Panel Q40: Picture 1 regular
CHAUVET Professional COLORado Panel Q40 15W Rectangular Wash Light
$3,299.00$2,925.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CHAUVET Professional WELL Pad Specifications

Optical

Optical

Jump to...

  • Light Source

    96 LEDs (24 red, 24 green, 24 blue, 24 amber) 1 to 3W, (500mA), 50,000 hours life expectancy

  • Beam Angle

    Without Filter: 22 deg.
    With Filter: 27 deg.

  • Field Angle

    Without Filter: 38 deg.
    With Filter: 51 deg.

  • Illuminance

    Without Filter: 553 lux at 5m
    With Filter: 316 lux at 5m

Dynamic Effects

Jump to...

  • Tilt

    90 deg.

  • Tilt Ranges

    0 to 90 deg. Tilt

  • Color Macros

    5 macros

  • Dimmer

    Electronic

  • Shutter/Strobe

    Electronic

  • Strobe Rate

    0 to 25Hz

  • Standalone Color Mixing

    Yes

  • Color Temperature Presets

    Yes

  • Dim Modes

    4

  • Built-in Automated Programs

    Yes

Connections

Jump to...

  • Power Connection

    Edison (Local) plug to Neutrik powerCON

  • Power Input

    Neutrik powerCON

  • Cable Length

    Power: 5' (1.52m)

Control

Jump to...

  • Control Protocol

    W-DMX

  • DMX Channels

    4, 6 or 10

  • Modes/Personalities

    3 personalities (4Ch, 6Ch, 10Ch)

Electrical

Jump to...

  • Input Voltage

    100 to 240 VAC, 50/60Hz (auto-ranging)

  • Power and Current

    Single Unit Charging: 120W, 0.996 A at 120V, 60Hz
    Charging Case: 480W, 3.984 A at 120V, 60Hz
    Single Unit Charging: 135W, 0.654 A at 208V, 60Hz
    Charging Case: 540W, 2.616 A at 208V, 60Hz
    Single Unit Charging: 137W, 0.594 A at 230V, 50Hz
    Charging Case: 548W, 2.376 A at 230V, 50Hz

Battery

Jump to...

  • Battery Type

    Lithium Ion

  • Rechargeable

    Yes

  • Battery Charge Time

    6 hours

  • Battery Life

    (all on) 9 hours, (single LED) 13 hours

  • Battery Power

    18.5V, 26Ah

Certifications / Qualifications

Jump to...

  • Certifications / Qualifications

    CE
    IP Rating: IP65, temporary outdoor/wet use with pressure equalizing M12 GORE valve
    Temperature (Ambient): -4 to 113 deg. F (-20 to 45 deg. C)

General

Jump to...

  • Housing Material

    Aluminum die-cast

  • Dimensions

    15.98 x 8.38 x 3.99" (40.59 x 21.29 x 10.13cm)
    Charging Case: 26.29 x 22.83 x 19" (66.78 x 57.99 x 48.26cm)

  • Weight

    Single Unit: 21.6 lbs (9.80kg)
    Charging Case: 67.8 lbs (30.75kg)

Other

Jump to...

  • UPC Code

    781462218256

About CHAUVET Professional WELL Pad

WELL Pad is an outdoor-ready, completely wireless, battery-powered rectangular RGBA LED wash light that provides excellent coverage of walls and stages or landscapes and architectural elements from its wide beam and field angles. The unit's orientation can be manipulated thanks to a unique 90-degree rotation system from its base. It can be controlled via W-DMX or by an included IR remote; alternatively, it can be controlled manually from the OLED display on the fixture. Selectable PWM ensures that this completely wireless wash light is always camera-ready.

CHAUVET Professional WELL Pad Features

  • A completely wireless, IP65 rated, battery powered up-light with 96 single color (red, green, blue and amber) LEDs that is controlled by W-DMX or IR remote
  • Drop in case for easy storage and recharging of the battery
  • Magnetic diffuser filter included
  • 9 hours of operation at full output with a recharge time of 6 hours
  • Built in automated programs recallable by IR, W-DMX or manually
  • 90-degree rotation of the panel from the base for easy direction of light
  • M12 threaded insert for easy clamp installation and a Kensington lock position for securing your investment
  • IP65 rating for temporary outdoor usage

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • CHAUVET 4x WELL Pad 1-3W Outdoor LED Wash Light
  • Charging Case
  • IR Remote
  • 4x Diffusion Filters
  • powerCON Power Cable with Edison Plug
  • Quick Reference Guide
  • CHAUVET 1 Year Limited Warranty
