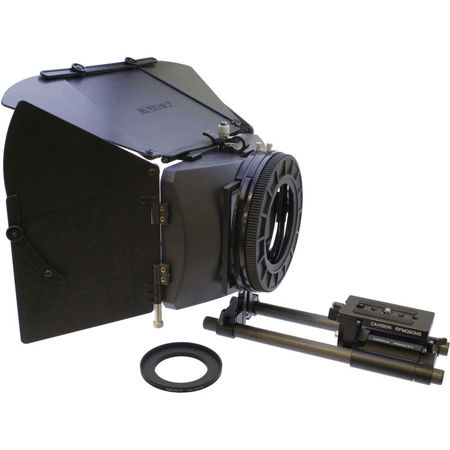

Cavision 4x5.65" Matte Box Package with Rods Support for Canon XF400/405, XA11/15 & XC10/15 Cameras

SKU: CI4169CXFCAR

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cavision Matte Box Package Specifications

Compatibility

Compatibility

Jump to...
  • Compatibility

    Canon XF400, XF405, XA11, XA15, XC10 & XC15 Camera

Matte Box

Jump to...
  • Filter stage

    2 filter stages: one with 360 degree rotation and one with horizontal insertion

  • Filter trays

    Two 4x4" and one 4x5.65" metal filter trays

  • Filter size

    4x4" fit in all stages, 4x5.65" in stationary stage; up to 4mm thickness

  • Filter tray security lock

    Yes

  • Fit Lens Outside Diameter

    130mm and under with appropriate adapter rings - note it is possible to use a donut but a special modified step down ring is require to fit tightly enough

  • Construction

    Aluminum and ABS

  • Camera mounting

    Must be used with a rods support system

Step Down Ring

Jump to...
  • Fits on

    Cavision Matte Boxes with Dia. 130mm back-mount opening

  • Steps down to

    Dia. 85mm opening

Step-Up Ring

Jump to...
  • Rear Thread

    58mm (2.28")

  • Front Thread

    82mm (3.23")

  • Front Outside Diameter

    85mm (3.35")

  • Depth

    6mm (0.24") (thinner depth is best for use when a matte box is being used with a rods support system)

Rods Support

Jump to...
  • Rail Diameter

    15mm (0.59")

  • Rail Spacing

    60mm (r.c. to r.c.)

  • Rail Wall Thickness

    1.8mm (0.07")

  • Front Bracket Height Adjustment

    25mm (0.98")

  • Back & Forwards Adjustable Length

    200mm (7.87")

  • Fits Cameras

    Most centered mini-DV / HDV / DSLR cameras

  • Plate Horizontal Adjustment

    No

  • Plate Quick Release Function

    Yes

  • Tripod Mounting Hole

    1/4" & 3/8"

  • Fits On

    Consumer, Miller, Cartoni, Vinten and Sachtler ENG tripod heads

  • Plate material

    Aluminum

About Cavision Matte Box Package

- 4x5.65 Matte Box Package -
• Suitable for Canon XF400, XF405, XA11, XA15, XC10 & XC15
• Includes adjustable top and side flaps
• Includes rods support with quick release system
• Can be used on many other cameras with additional adapter rings (not included)

- 4x5.65" Hard Shade Matte Box -
• Extra wide hard shade specifically designed for HD 16:9 format
• Optional use of 4x5.56" filters in the stationary filter stage
• Fits a large variety of cameras and lenses including both Broadcast and Mini-DV
• Rotating filter stage for use with polarizing and graduated filters
• Highly affordable
• Now includes 85mm rubber back cover (ARR1385)
• Ideal for use with a Cavision 15mm rods support system which allow for horizontal and vertical adjustment (note: rods system is required)

- Expandable Top Flat -
• Expandable wings allow one to better flag off extraneous light, but still allow flap to be completely collapsed for easy storage and carry
• Easily removable and adjustable
• Can be used as a cover to protect the front of the lens
• Top clasp keeps French flap in open position and also allows you to fine tune its position
• Compatible with MB4169H, MB413B and MB4510H series matte boxes

- Expandable Side Flaps -
• Expandable top section allows for maximum flare protection
• New design with only one thumb screw allows for easy adjustment and easy removal
• Collapsibility allows for flaps to be folded in front of matte box for storage
• Compatible with MB4169H, MB413B and MB4510H & MB410H series matte boxes

- Rods Support -
• Includes adapter allowing it to be configured in either reversed position (reversed is ideal for small cameras with short lenses such as 5DMII or other DSLR cameras) or forward position
• 2 Carbon Fiber Rods (aluminum for 300mm long rods option)
• Height adjustable front Bracket for connecting a matte box
• Balance bracket with tripod connection thread
• Mini-DV plate with extra sturdy riser featuring vertical adjustment, quick release function and uniquely designed locating pin for enhanced stability
• Reversed version is ideal for small cameras with short lenses (such as 5DMII or other DSLR cameras)

What's in the box:

  • Cavision 4x5.65 " Hard Shade Matte Box
  • 130mm to 85mm Rubber Step Down Ring
  • 58mm to 82mm Threaded Step-Up Ring
  • Expandable Top French Flap
  • Pair of Expandable Side Flaps
  • 15mm Rods Support with Quick Release
  • Cavision 3 Month Warranty for Commercial Use (6 Month for Personal Use)
