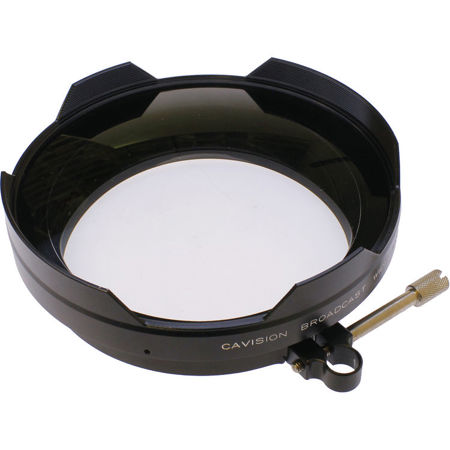

Cavision Single-Element 0.7x Wide-Angle Adapter with CR117-110 Clamp-On Ring
See all Cavision items

Cavision Single-Element 0.7x Wide-Angle Adapter with Notched Front and CR117-110 110mm Clamp-On Ring, 117mm P=0.8 Back Thread

SKU: CIBWA07X110
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Cavision Single-Element 0.7x Wide-Angle Adapter with CR117-110 Clamp-On Ring Specifications

  • Class

    Broadcast

  • Effect

    0.7x

  • Suitable lens

    Lenses with front outside diameter of Dia. 110mm; Dia. 114mm (CR117-114) or Dia. 100mm (CR117-100) with optional clamp-on rings indicated in brackets.
    Or various front outside diameter sizes below 100mm with CR117-100 plus ARP4 series adapter rings (e.g. ARP498 for 98m, ARP496 for 96mm, ARP495 for 95mm etc.)

  • Suitable Focal Length

    2/3": 4.5mm and up

  • Coating

    Multi-coated

  • Zooming

    Fixed focal

  • Focus

    By macro mechanism

  • Aperture

    No light loss

  • MOD

    0.20m (0 MOD when used on Fujinon 13x4.5 lens)

  • For use on Fujinon 13x4.5 lens

    CR117-100 + ARP496 required

  • Angle of view

    76 deg. 19' x 61 deg. 01' at 8mm

  • Format

    2/3" TV

  • Back thread

    Dia. 117mm P=0.8

  • Construction

    Single element

  • Dimensions (Dia.xH)

    130 x 23.5mm (5.12 x 0.93")

  • Weight

    353g (12.45 oz)

About Cavision Single-Element 0.7x Wide-Angle Adapter with CR117-110 Clamp-On Ring

• Includes CR117-110 clamp-on ring for use on lenses with 110mm front outside diameter
• Provides a 30% wider angle of view
• Base lens can also be used with 117 clamp-on rings for different lens sizes
• Can be used on Fujinon 13x4.5 lens (2/3") to create super wide angle equivalent to Approx. 3.5mm and an MOD of 0 (note: must be zoomed in slightly for use)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Cavision Single-Element 0.7x Wide-Angle Adapter
  • CR117-110 110mm Clamp-On Ring
  • Cavision 3 Month Warranty for Commercial Use (6 Month for Personal Use)
