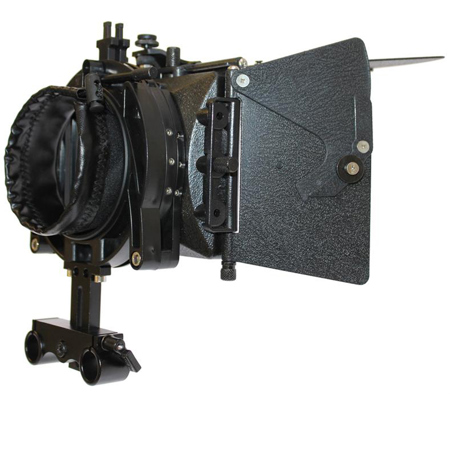

Cavision 3x3 Matte Box Package for DSLR Cameras, Includes MB3485S 3x3 Hard Shade Matte Box, ADU085-D45 Adapter Ring, RST2550 + R156025 Front Bracket

SKU: CIMB348515FB

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2020-10-21T14:57:19

Rated 5 out of 5

Cavision 3x3 Matte Box

I like this for what it does. It's very compact and light weight. Great for handheld and run'n-gun. All the usual bells and whistles - has more features than my larger and more expensive matte box. Typical Chinesium construction, but I really can't complain for the cost.

JOSEPH L.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Cavision 3x3 Matte Box Package for DSLR Cameras, RST2550 + R156025 Front Bracket Specifications

  • MB3485S: Filter trays

    2 total, 1 rotatable

  • MB3485S: Degree of rotation

    270 deg.

  • MB3485S: Filter size

    3x3" glass or resin (max thickness of 4mm) in filter trays; cokin "P"filters fit loosely in filter stage slots only (not in filter trays)

  • MB3485S: Back mount opening

    Dia. 85mm / 3.35"

  • MB3485S: Fit Lens filter thread

    82, 77, 72, 62, 67, 58 & 52mm

  • MB3485S: Fit DSLR lens wide angle

    APS-C: 15mm & up. Full frame: 35mm & up (may work at wider angles on lenses with less than 77mm filter diameter; may also work on wider lenses if clamped directly on lens front)

  • MB3485S: Construction

    Aluminum & ABS

  • MB3485S: Filter tray material

    ABS

  • MB3485S: Hard Shade Material

    ABS

  • ADU085-D45: Fits

    85mm / 3.35" (into matte box back-mount diameter )

  • ADU085-D45: Front O.D.

    85mm / 3.35"

  • ADU085-D45: Depth

    45mm / 1.77" (when cloth fully open)

  • ADU085-D45: Fits lens size

    50 to 80mm / 1.97 to 3.15" (lens front outside diameter)

  • RST2550: Fits Matte Box

    All Cavision matte boxes up to 4x5.65 size

  • RST2550: T-part Width

    25mm / 0.98"

  • RST2550: Height

    50mm / 1.97"

  • R156025: Fits Rods

    Dia. 15mm / 0.59" rods with 60mm / 2.36" spacing

  • R156025: T-part slot width

    25mm / 0.98"

  • Dimensions

    MB3485S: 17.2 x 13 x 6.8cm / 6.77 x 5.12 x 2.68"

  • Weight

    MB3485S: 360g / 12.70oz
    Matte box: 180g / 6.35oz
    Top flap: 100g / 3.53oz
    Pair of side flaps: 80g / 2.82oz

About Cavision 3x3 Matte Box Package for DSLR Cameras, RST2550 + R156025 Front Bracket

• Suitable for Panasonic AF100, Black Magic Cinema camera and most DSLR cameras; for small-medium size DSLR lenses
• The matte box can accept lenses of 85mm max outside diameter (donut adapter ring provided can step down to 50mm
• The 3x3 matte box may vignette with wide angle lenses (this will be more relevant for cameras with full frame sensors

3x3 Matte Box Set with Top & Side Flaps
• Can be used as a clamp-on type or with either 8mm or 15mm rods support system
• 270° Rotating filter stage for use with polarizing and graduated filters
• Ideal for DSLR cameras but also fits a large variety of other cameras and lenses including Broadcast and prosumer HD
• Lightweight: ideal for use on smaller cameras and when mobility is required
• New wider shade allows for wider lenses to be used
• Includes expandable top and side flaps
• Flaps can be easily and quickly removed and re-attached; flaps fold in, convenient for storage and carry
• Unbelievable price; most affordable professional matte box on the planet
• Most Advanced 3x3 matte box in the world
• Adapter ring to allow matte box to be used on 5D MII/MIII with 24-105mm lens (at widest angle with no vignetting)

Universal Donut Adapter Ring
• Ideal for DSLR or other external focus lenses
• Can be used on almost any lens with a front outer diameter between 50 & 80mm
• Useful for lenses where the front element moves inward & outward
• Can be used in Cavision 3x3 matte boxes directly or in 4x4 & 4x5.65 matte boxes with the back-mount stepped down to 85mm (using ARP series adapter rings)

What's in the box:

  • Cavision MB3485S 3x3 Hard Shade Matte Box with Top & Side Flags
  • ADU085-D45 Donut Style Adapter Ring
  • RST2550 + R156025 Front Bracket
  • Cavision 6 Month Limited Warranty for Personal Use (3 Months for Commercial Use)
