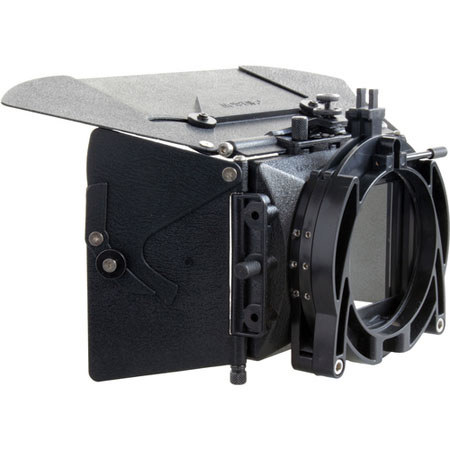

Cavision 3x3" Hard Shade Matte Box with Top and Side Flaps
See all Cavision items

Cavision 3x3" Hard Shade Matte Box with Top and Side Flaps

SKU: CIMB3485S

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Shopper : Does the lens "float" inside the doughnut or do you have to use threaded adapters and mount it to the lenses ?MARK S : The lens floats. There are flexible "donuts" that prevent light from behind the camera getting into the box. The most flexible type slips over the rear-most part of the box and is held by elasticity and the part going on the lens can be elastic or draw string tightened. There is not quite one-size-fits-all on the lens side, but if you don't have a huge range of lens diameters, for example a prime wide or normal lens and a fast huge zoom one would be enough.EMMA C : The lens floats inside the doughnut. We had to put black wrap around the doughnut to block light from leaking in between doughnut & lens, we were getting weird reflections off the filters.JACK Y : We have ours floating since we tend to change lenses during shooting. Just make sure that when you are zooming or pulling focus that the lens does not retract back past the back of the mattebox housing. Stray light then could hit the lens and defeat the purpose of the mattebox. Also make sure that the mattebox housing is centered perfectly around the lens so it doesn't drag on the lens when it's moving. Hope that helps.DAVE B : Use threaded adapters and there is no float or need for a lens doughnut that way you can use as a clamp on Matte Box or use with the rod riser support that goes under the box and onto the rods to stabilize!!STEVE H : A 72mm metal adapter (looks almost like a small lens hood-included with bellows) screws into the front of your lens. The adapter is then inserted into the rubber doughnut. The adapter ensures a tight seal.MATT K : Depends on the diameter of the lens. You might need to purchase the appropriate step down.
Shopper : Is the matte compatible with Canon 60D ?ANDREW R : This unit is not camera specific and should be relatively universal. Adapters are included for various lens diameters. Fit Lens filter thread 82, 77, 72, 62, 67, 58 & 52mm (with appropriate adapter rings) Fit DSLR lens wide angle APS-C: 15mm & up. Full frame: 35mm & up (may work at wider angles on lenses with less than 77mm filter diameter; may also work on wider lenses if clamped directly on lens front)

Reviews about this item

Review Summary

2016-06-30T09:35:55

Rated 5 out of 5

Love this!

I love this! I wanted a compact, very functional matte box for my Canon DSLR video setup. I'm impressed with the well thought out design. The very adjustable flags do a great job of blocking stray light from hitting the lens and the two filter trays fit snugly in the main body of the matte box. I'd knock half a star off this review for two reasons: I bought the clamp on version and needed to order a separate adapter ring to fit my lens. This wasn’t noted in the product description. I contacted Cavision customer service and they were very helpful. But I still had to wait an extra week and a half to use the matte box. And reason two: one of the filter trays was damaged from the factory. But Cavision shipped a replacement filter when I ordered my adapter ring, free of charge. This matte box won't protect your camera. The flags are too delicate for that. But if you want a small, functional matte box that does its job, looks great and won't break the bank then this is a good choice.

Edward C.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Cavision 3x3" Hard Shade Matte Box with Top and Side Flaps Specifications

  • Filter trays

    2 total, 1 rotatable

  • Degree of rotation

    270 deg

  • Filter size

    3x3" glass or resin (max thickness of 4mm) in filter trays; cokin "P" filters fit loosely in filter stage slots only (not in filter trays)

  • Back mount opening

    Diameter: 85 mm / 3.34"

  • Fit Lens filter thread

    82, 77, 72, 62, 67, 58 & 52mm (with appropriate adapter rings)

  • Fit DSLR lens wide angle

    APS-C: 15mm & up. Full frame: 35mm & up (may work at wider angles on lenses with less than 77mm filter diameter; may also work on wider lenses if clamped directly on lens front)

  • Construction

    Aluminum & ABS

  • Filter tray material

    ABS

  • Hard Shade Material

    ABS

  • Dimensions

    17.2 x 13 x 6.8 cm (6.77 x 5.11 x 2.67")

  • Weight

    360g (12.69 oz) (matte box = 180g; top flap = 100g; pair of side flaps = 80g)

  • UPC Code

    3110103333114

About Cavision 3x3" Hard Shade Matte Box with Top and Side Flaps

FEATURED REVIEWS

Love this!

By Edward C.

I love this! I wanted a compact, very functional matte box for my Canon DSLR video setup. I'm impressed with the well thought out design. The very adjustable flags do a great job of blocking stray light from hitting the lens and the two filter trays fit snugly in the main body of the matte box. I'd knock half a star off this review for two reasons: I bought the clamp on version and needed to order a separate adapter ring to fit my lens. This wasn’t noted in the product description. I contacte...

View full Review

The Cavision 3 x 3" Hard Shade Matte Box with Top and Side Flaps can be used as a clamp-on type, or with either 8 mm or 15 mm rods support system. It is ideal for DSLR cameras but also fits a large variety of other cameras and lenses including Broadcast and prosumer HD.

Cavision 3x3" Hard Shade Matte Box with Top and Side Flaps Features

  • 270deg. Rotating filter stage for use with polarizing and graduated filters
  • Lightweight: Ideal for use on smaller cameras and when mobility is required
  • New wider shade allows for wider lenses to be used
  • Adapter ring to allow matte box to be used on 5D MII/MIII with 24-105mm lens (at widest angle with no vignetting)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Ideal for use on smaller cameras
  • New wider shade allows for wider lenses to be used
