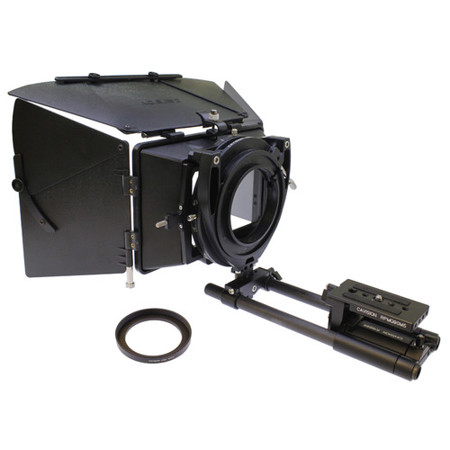

Cavision 4x5.65" Matte Box Package with Rods Support for Panasonic HC-X1, AG-CX350, AG-UX90 and AG-UX180 Camera

SKU: CIMB512PUCXR

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Cavision Matte Box Package Specifications

Compatibility

Compatibility

Jump to...
  • Compatibility

    Panasonic AG-CX350, HC-X1, AG-UX90 and AG-UX180 Cameras

Matte Box

Jump to...
  • Filter Size

    4x4" & 4x5.65"

  • Total Filter Stages

    2

  • Rotating Stages

    1

  • Fixed Stage Filter Tray Adjustment

    Horizontal

  • Degree of Rotation

    270 deg.

  • Filter Tray Insertion

    From bottom

  • 4x4 Filter Holders

    2

  • 4x5.65 Filter Holders

    1

  • Camera Mounting

    Clamp-on or rods support

  • Back-mount Opening

    120mm

  • Sunshade Material

    ABS

  • Construction

    Aluminum

Insert Ring

Jump to...
  • Fits into

    Dia. 120mm matte box back mount opening (or plastic insert ring opening)

  • Steps down to

    Dia. 85mm opening

Step-Up Ring

Jump to...
  • Rear Thread

    67mm (2.64")

  • Front Thread

    82mm (3.23")

  • Front Outside Diameter

    85mm (3.35")

  • Depth

    12mm (0.47") (thinner depth is best for use when a matte box is being used with a rods support system)

Rods Support

Jump to...
  • Rail Diameter

    15mm (0.59")

  • Rail Spacing

    60mm (r.c. to r.c.)

  • Rail Wall Thickness

    1.8mm (0.07")

  • Front Bracket Height Adjustment

    25mm (0.98")

  • Back & Forwards Adjustable Length

    200mm (7.87")

  • Fits Cameras

    Most centered mini-DV / HDV / DSLR cameras

  • Plate Horizontal Adjustment

    No

  • Plate Quick Release Function

    Yes

  • Tripod Mounting Hole

    1/4" & 3/8"

  • Fits On

    Consumer, Miller, Cartoni, Vinten and Sachtler ENG tripod heads

  • Plate material

    Aluminum

General

Jump to...
  • Dimensions (WxHxD)

    Matte Box: 21 x 16 x 8.2cm (8.27 x 6.30 x 3.23")

  • Weight

    Matte Box: 520g (18.34 oz)

About Cavision Matte Box Package

- 4x5.65 Matte Box Package -
• Suitable for Panasonic AG-CX350, HC-X1, AG-UX90 and AG-UX180
• Matte box designed to accommodate camera's low overhanging microphone
• Includes 67mm threaded adapter ring. With additional donut adapter ring (not included) can be used on many other cameras such as DSLR's, hybrid cameras and other camcorders

- 4x5.65 Hard Shade Matte Box -
• Specifically designed to avoid the low microphone on the Sony PMW-EX1
• Can be used as clamp-on or with 15mm rods support
• Extra wide hard shade designed specifically for HD 16:9 aspect ratio
• 4x5.65 filter tray in the front filter stage helps avoid vignetting for wider lenses (also includes two 4x4 trays)
• Rotating filter stage for use with polarizing and graduated filters
• Fits a large variety of cameras and lenses including both Broadcast and Mini-DV, with appropriate adapter rings
• ARP1210 and AR100-77 adapter ring required for use with Sony EX1

- Expandable Top Flat -
• Expandable wings allow one to better flag off extraneous light, but still allow flap to be completely collapsed for easy storage and carry
• Easily removable and adjustable
• Can be used as a cover to protect the front of the lens
• Top clasp keeps French flap in open position and also allows you to fine tune its position
• Compatible with MB4169H, MB413B and MB4510H series matte boxes

- Expandable Side Flaps -
• Expandable top section allows for maximum flare protection
• New design with only one thumb screw allows for easy adjustment and easy removal
• Collapsibility allows for flaps to be folded in front of matte box for storage
• Compatible with MB4169H, MB413B and MB4510H & MB410H series matte boxes

- Rods Support -
• Includes adapter allowing it to be configured in either reversed position (reversed is ideal for small cameras with short lenses such as 5DMII or other DSLR cameras) or forward position
• 2 Carbon Fiber Rods (aluminum for 300mm long rods option)
• Height adjustable front Bracket for connecting a matte box
• Balance bracket with tripod connection thread
• Mini-DV plate with extra sturdy riser featuring vertical adjustment, quick release function and uniquely designed locating pin for enhanced stability
• Reversed version is ideal for small cameras with short lenses (such as 5DMII or other DSLR cameras)

What's in the box:

  • Cavision 4x5.65 " Hard Shade Matte Box
  • 120mm to 85mm Step Down Insert Ring
  • 67mm to 85mm O.D. Step-Up Ring
  • Expandable Top French Flap
  • Pair of Expandable Side Flaps
  • 15mm Rods Support with Quick Release
  • Cavision 3 Month Warranty for Commercial Use (6 Month for Personal Use)
