Cisco RV110W Wireless-N VPN Firewall Router

SKU: CIRV110W

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cisco RV110W Specifications

  • Network Protocol

    TCP/IP

  • Power Over Ethernet

    No

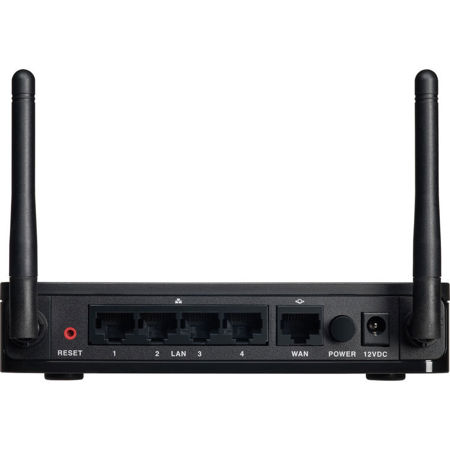

  • Ports

    4x 10/100Mbps Fast Ethernet LAN Ports
    1x 10/100Mbps Fast Ethernet WAN Port

  • LED

    Power, WPS, WAN, Wireless, LAN (ports 1-4)

  • System Requirements

    For Configuration: PC with network adapter and Ethernet cable Web browser

  • Performance

    NAT throughput: 90 Mbps
    5000 concurrent sessions
    VPN throughput: 5Mbps

  • WLAN: Transmit power

    802.11b: 17 dBm +/- 1.5 dBm
    802.11g: 15 dBm +/- 1.5 dBm
    802.11n: 12.5 dBm +/- 1.5 dBm

  • WLAN: Receiver sensitivity

    -87 dBm at 11 Mbps
    -71 dBm at 54 Mbps
    -68 dBm at msc15, HT20 / -66dBm at mcs15, HT40

  • Wireless Domain Services

    Allows wireless signals to be repeated by up to 3 compatible devices

  • Wi-Fi Multimedia (WMM)

    WMM with QoS (802.11e), WMM power save (WMM-PS)

  • Active WLAN clients

    Up to 32 clients

  • Service Set Identifiers (SSIDs)

    Up to 4 separate wireless networks

  • Wireless isolation

    Wireless isolation between clients

  • WLAN security

    Wireless isolation between clients
    WPS ( Wi-Fi Protected Setup), Wired Equivalent Privacy (WEP), Wi-Fi Protected Access (WPA) personal and enterprise, WPA2 personal and enterprise

  • WLAN hardware

    IEEE 802.11n standard-based access point with 802.11b/g compatibility

  • Radio and modulation type

    802.11b: direct sequence spread spectrum (DSSS)
    802.11g/n: orthogonal frequency division multiplexing (OFDM)
    2 omnidirectional 1.8 dBi gain fixed external antennas

  • WAN

    One 10/100 Mbps Fast Ethernet WAN port

  • LAN

    Four 10/100 Mbps Fast Ethernet LAN port

  • WLAN

    Built-in 802.11n wireless access point

  • Switch

    Power button (on/off)

  • Power

    12V 1A

  • Certifications

    FCC Class B
    CE
    IC
    cUL
    Wi-Fi

  • Operating Temperature

    32 Deg. to 104 Deg.F / 0 Deg. to 40 Deg.C

  • Storage Temperature

    -4 Deg. to 158 Deg.F / -20 Deg. to 70 Deg.C

  • Operating Humidity

    10% to 85% noncondensing

  • Storage Humidity

    5% to 90% noncondensing

  • Web-based configuration

    Web browser

  • Dimensions (W x D x H)

    5.91 x 5.91 x 1.18" / 15 x 15 x 3cm

  • Weight

    0.61 lb / 0.3 kg

  • UPC Code

    882658354472

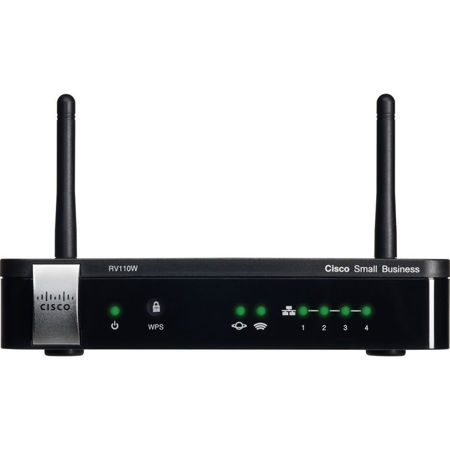

About Cisco RV110W

The RV110W Wireless-N VPN Firewall Router from Cisco is a stellar device for establishing an advanced wired or wireless network at home or in the office. This router supports 802.11n Wi-Fi and is backwards compatible with 802.11b/g Wi-Fi so it can connect to a variety of wireless computers, handheld devices and more. It has four LAN Fast Ethernet ports for establishing wired connections with computers, printers, IP phones, cameras and other devices.

Beyond these connectivity options, the router also boasts remote access and guest options. With IP Security Protocol (IPsec) and Point-to-Point Tunneling Protocol (PPTP) VPN support, the router can provide secure remote access to friends, family, colleagues, guests, or employees working on Windows and Mac OS computers in a distant location. The router also supports "virtual" WLAN networks, so that you can tightly control access to sensitive information with wireless users on the network. You can also setup highly secure wireless guest access. For security, the router relies upon a firewall with access rules support and advanced wireless security standards.

In addition to these benefits, the router can prioritize voice, video and data traffic via its Quality of Service (QoS) function and it supports IPv6 protocol. You can setup the router via an intuitive, browser-based device manager and utilize the Cisco FindIT Network Discovery Utility to discover select Cisco products on your network. That utility also displays information on a device's status, serial number, IP address and version. With its advanced features, this router is a definite buy for the business or home.

Cisco RV110W Features

  • High-speed, standards-based 802.11n wireless connectivity improves throughput and coverage, allowing employees to stay productive while away from their desks
  • Integrated 4-port 10/100 switch, enabling you to connect to computers, printers, IP phones, cameras and other devices
  • Proven firewall with access rules support and advanced wireless security helps keep business assets safe
  • Quality of service (QoS) support for enhanced voice, video and data traffic
  • Support for separate "virtual" networks, enabling you to control access to sensitive information and to set up highly secure wireless guest access
  • IP Security (IPsec) and Point-to-Point Tunneling Protocol (PPTP) VPN support, providing highly secure remote access connectivity for Windows and Mac OS computers
  • Support for IPv6, the latest Internet Protocol technology, to help your network accommodate new technologies
  • Simplified configuration through an intuitive, browser-based device manager
  • Simplified configuration through an intuitive, browser-based device manager
