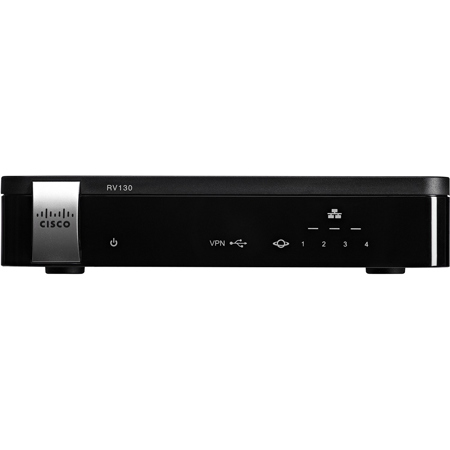

Cisco RV130 VPN Router with Web Filtering

SKU: CIRV130WBK9N

This item is no longer available.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cisco RV130 Specifications

  • Standards

    IEEE, 802.3, 802.3u, 802.1D, 802.1p, 802.1w (Rapid Spanning Tree), 802.1Q (VLAN), IPv4 (RFC 791), IPv6 (RFC 2460), Routing Information Protocol (RIP) v1 (RFC 1058), RIP v2 (RFC 1723)

  • Ports

    LAN, WAN, USB

  • Switch

    Power button (on/off)

  • Buttons

    Reset

  • Cabling Type

    Category 5e or better

  • LEDs

    Power, VPN, USB, WAN, LAN (ports 1-4)

  • Operating System

    Linux

  • Network Protocols

    Dynamic Host Configuration Protocol (DHCP) server
    Point-to-Point Protocol over Ethernet (PPPoE)
    Point-to-Point Tunneling Protocol (PPTP)
    Layer 2 Tunneling Protocol (L2TP)
    DNS proxy
    DHCP relay agent
    IGMP Proxy and multicast forwarding
    Rapid Spanning Tree Protocol (RSTP)
    Dynamic Domain Name System (TZO, DynDNS, 3322.org, NOIP)

  • Network Protocols (cont.)

    Network Address Translation (NAT), Port Address Translation (PAT)
    One-to-One NAT
    Port management
    Port mirroring
    Software configurable DMZ to any LAN IP address
    Session Initiation Protocol (SIP) Application Layer Gateways (ALG)

  • LAN

    4x Gigabit Ethernet ports with managed switch

  • WAN

    1x Gigabit WAN port

  • Routing Protocols

    Static routing
    Dynamic routing
    RIP v1 and v2
    Inter-VLAN routing

  • NAT Protocol

    Port Address Translation (PAT), Network Address Port Translation (NAPT)

  • VLAN Support

    Port-based and 802.1Q tag-based VLANs

  • Number of VLANs

    5 active VLANs (3-4096 range)

  • IPv6

    Dual-stack IPv4 and IPv6
    6 to 4 tunneling
    Stateless address auto-configuration
    DHCP v6 Server for IPv6 Clients on LAN
    DHCP v6 client for WAN connectivity
    Internet Control Message Protocol (ICMP) v6
    Static IPv6 Routing
    Dynamic IPv6 Routing with RIPng

  • Network Edge (DMZ)

    Software configurable to any LAN IP address

  • Layer 2 Switching

    802.1Q-based VLANs, 5 active VLANs

  • Firewall

    Stateful packet inspection (SPI) firewall, port forwarding and triggering, denial-of-service (DoS) prevention, software-based DMZ DoS attacks prevented:
    SYN Flood
    Echo Storm
    ICMP Flood
    UDP Flood
    TCP Flood
    Block Java, Cookies, ActiveX, HTTP Proxy

  • Access Control

    IP access control lists

  • Content Filtering

    Static URL blocking or keyword blocking

  • Web Filtering

    Content filtering that covers more than 27 billion URLs

  • Secure Management

    HTTPS, username/password complexity

  • User Privileges

    2 Levels of Access: Admin and guest

  • VPN Support

    Gateway-to-Gateway IPsec VPN
    10 x Gateway-to-gateway IPsec tunnels
    Client-to-Gateway IPsec VPN
    10 x client-to-gateway IPsec tunnels using TheGreenBow and ShrewSoft VPN client
    PPTP VPN
    10 x PPTP tunnels for remote client access

  • Encryption

    Triple Data Encryption Standard (3DES), Advanced Encryption Standard (AES)

  • Authentication

    MD5/SHA1

  • VPN Pass-Through

    IPsec/PPTP/Layer 2 Tunneling Protocol (L2TP) pass-through

  • QoS

    802.1p port-based priority on LAN port, application-based priority on WAN port
    3 queues
    Differentiated Services Code Point support (DSCP)
    Class of Service (CoS)
    Bandwidth Management for service prioritization

  • Jumbo Frame Support

    Supports Jumbo Frame on Gigabit ports-at least 1536B

  • NAT Throughput

    800 Mbps

  • Concurrent Sessions

    12,000

  • IPsec VPN Throughput (3DES / AES)

    50 Mbps

  • Management Protocols

    Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour, Universal Plug and Play (UPnP)

  • Event Logging

    Local, syslog, email alerts

  • Network Diagnostics

    Ping, Traceroute, and DNS Lookup

  • Upgradability

    Firmware upgradable through web browser, imported/exported configuration file

  • System Time

    Supports NTP, daylight savings, manual entry

  • Languages

    GUI supports English, French, Italian, German, and Spanish

  • Power

    12 V 2 A

  • Certifications

    FCC class B, CE, IC

  • Temperature & Humidity

    Operating Temperature: 32 to 140 deg. F (0 to 60 deg. C)
    Storage Temperature: -4 to 158 deg. F (-20 to 70 deg. C
    Operating Humidity: 10 to 85% non-condensing
    Storage Humidity: 5 to 90% non-condensing

  • UPC Code

    882658842726

About Cisco RV130

The Cisco RV130 VPN Router is an affordable, easy-to-use device that combines high-performance network connectivity to multiple offices and remote employees with essential business-class features. These include Gigabit Ethernet, Quality of Service, IPv6 support and advanced security, the features you need to successfully build your small business network. Your business and your employees are exposed to phishing, key loggers, spyware, drive-by malware and other online threats. With Cisco newest models that include web filtering, you can keep your employees and users safe from unwanted content and malicious websites.

And you can do so without compromising users' online experience. You can even help boost employee productivity and network performance by limiting Internet surfing to appropriate site categories and eliminating unwanted network traffic. Users are also automatically protected from malicious or compromised websites, regardless of site categorization.? As business applications become more powerful and complex, they are also increasing demands on your network. To stay productive and keep in touch with customers, business partners and colleagues, your employees need reliable, high-performance connectivity - inside and outside the office.

The Cisco RV130 VPN Router delivers highly secure broadband connectivity and remote access for multiple offices and remote workers. Designed specifically for small businesses, it delivers a comprehensive combination of business-class features and ease of use in one affordable solution. The Cisco RV130 features a built-in 4-port Gigabit Ethernet managed switch that lets you connect network devices and transfer files and data at high speed. Intelligent quality of service (QoS) features let you prioritize network traffic to keep critical network applications like voice and video running at their best.

To help you connect remote users or additional offices, the Cisco RV130 offers enterprise-class encryption and authentication, including support for IPsec and Point-to-Point Tunneling Protocol (PPTP) VPN client connections and IPsec gateway-to-gateway VPN tunnels. The RV130 also features a USB port for 3G/4G Broadband failover or for alternative uses can be used for primary connectivity. Easy to set up and use right out of the box, the router features a simple wizard-based configuration to get you up and running in minutes. With the Cisco RV130 VPN Router, you can take advantage of enterprise-class performance, security and reliability - at a price your small business can afford.

What's in the box:

  • Cisco RV130 VPN Router with Web Filtering
  • Cisco Lifetime Limited Warranty
