Cisco RV320 Dual Gigabit WAN VPN Router
See all Cisco items

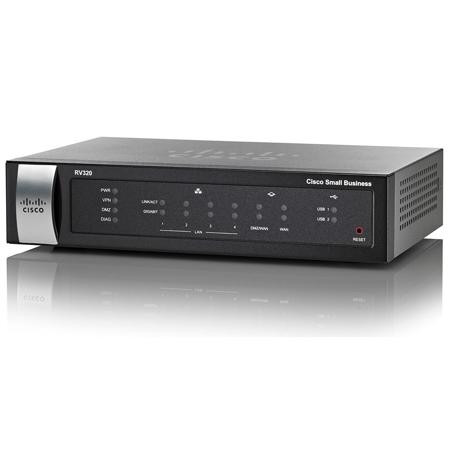

Cisco RV320 Dual Gigabit WAN VPN Router

SKU: CIRV320K9NA
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cisco RV320 Specifications

  • Dual WAN

    Dual Gigabit Ethernet Ports
    Failover
    Load balancing

  • Standards

    802.3, 802.3u
    IPv4 (RFC 791)
    IPv6 (RFC 2460)

  • WAN Connectivity

    Dynamic Host Configuration Protocol (DHCP) server, DHCP client, DHCP relay agent
    Static IP
    Point-to-Point Protocol over Ethernet (PPPoE)
    Point-to-Point Tunneling Protocol (PPTP)
    Transparent bridge
    DNS relay, Dynamic DNS (DynDNS, 3322)
    IPv6

  • Routing Protocols

    Static
    Routing Information Protocol (RIP) v1, v2, and RIP for IPv6 (RIPng)

  • Network Address Translation (NAT)

    Port Address Translation (PAT)
    One-to-one NAT
    NAT traversal

  • Protocol Binding

    Protocols can be bound to a specific WAN port for load balancing

  • Network Edge (DMZ)

    DMZ port
    DMZ host

  • USB Ports

    Dual USB ports with 3G/4G modem support

  • Firewall

    SPI firewall
    Denial of service (DoS), ping of death, SYN flood, land attack, IP spoofing, email alert for hackerattack

  • Access Rules

    Schedule-based access rules
    Up to 50 entries

  • Port Forwarding

    Up to 30 entries

  • Port Triggering

    Up to 30 entries

  • Blocking

    Java, cookies, ActiveX, HTTP proxy

  • Secure Management

    HTTPS web access to device manager
    Username/password complexity enforcement

  • VLAN

    802.1Q VLAN
    RV320: 7 VLANs supported
    RV325: 7 VLANs supported

  • IPsec Access Modes

    25x IPsec site-to-site tunnels for branch office connectivity

  • SSL VPN Tunnels

    10x SSL VPN tunnels for remote client access

  • PPTP VPN

    10x PPTP tunnels for remote access

  • Encryption

    Data Encryption Standard (DES)
    Triple Data Encryption Standard (3DES)
    Advanced Encryption Standard (AES) Encryption: AES-128, AES-192, AES-256

  • Authentication

    MD5/SHA1 authentication

  • IPsec NAT Traversal

    Supported for gateway-to-gateway and client-to-gateway tunnels

  • VPN Pass-Through

    PPTP, Layer 2 Tunneling Protocol (L2TP), IPsec

  • Advanced VPN

    Dead peer detection (DPD)
    Split DNS
    VPN backup
    Internet Key Exchange (IKE) with certificate

  • Prioritization Types

    Application-based priority on WAN port

  • Service-based QoS

    Supports rate control or priority

  • Rate Control

    Upstream/downstream bandwidth can be configured per service

  • Priority

    Each service can be mapped to one of 3 priority levels

  • IPsec VPN Throughput

    100 Mbps

  • SSL VPN Throughput

    20 Mbps

  • Maximum Concurrent Connections

    20,000

  • Web User Interface

    Simple browser-based device manager (HTTP/HTTPS)

  • Management Protocols

    Web browser (HTTP/HTTPS)
    Simple Network Management Protocol (SNMP) v1, v2c, and v3
    Bonjour

  • Event Logging

    Local log
    Syslog
    Email alert
    Short Message Service (SMS)

  • Upgradability

    Firmware upgradable through web browser
    Imported/exported configuration file

  • Ports

    4x 10/100/1000 RJ-45 ports
    1x 10/100/1000 RJ-45 Internet port
    1x 10/100/1000 RJ-45 DMZ/Internet port

  • Power Supply

    12 V 1.5 A

  • Certifications

    FCC Class B, CE Class B, UL, cUL, CB, CCC, BSMI, KC, Anatel, GOST

  • Temperature & Humidity

    Operating Temperature: 32 to 104 deg. F (0 to 40 deg. C)
    Storage Temperature: 32 to 158 deg. F (0 to 70 deg. C)
    Operating Humidity: 10 to 85% non-condensing
    Storage Temperature: 5 to 90% non-condensing

  • Dimensions

    8.1 x 5.2 x 1.7" (205.74 x 132.08 x 43.18mm)

About Cisco RV320

Get Optimal Performance, Security and Reliability
Keep your employees, your business and yourself productive and effective. The Cisco RV320 Dual Gigabit WAN VPN Router is an ideal choice for any small office or small business looking for performance, security and reliability in its network.

• Dual Gigabit Ethernet WAN ports for load balancing and business continuity
• Built-in 4-port Gigabit Ethernet switch
• Strong security with proven stateful packet inspection (SPI) firewall and hardware encryption
• High-capacity, high-performance, SSL, IP Security (IPsec) VPN capabilities
• Intuitive, browser-based device manager and setup wizards

Performance
Supports Gigabit Ethernet speeds for internal and external wired connections; easily manages large files and concurrent users to keep employees productive.

Simple, highly secure access
Connect multiple locations and remote workers using VPN or set up separate virtual networks and access rules to help secure sensitive data.

Ease of use
Can be deployed directly out of the box; setup wizards reduce configuration time to minutes.

Flexible
USB ports provides the ability to use 3G and 4G modems for broadband failover.

Online Device Emulator
Browse through Cisco Small Business product management and configuration features.

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Cisco RV320 Dual Gigabit WAN VPN Router
  • Cisco Lifetime Limited Warranty
