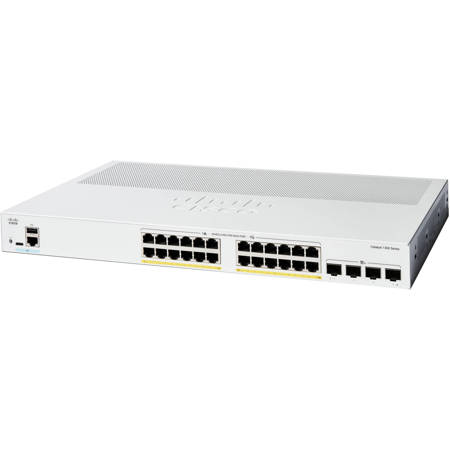

Cisco Catalyst C1300-24P-4X 24-Port Gigabit PoE+ Compliant Managed Network Switch

SKU: CISC130024P4 MFR: C1300-24P-4X
Earn VIP Reward Points

Key Features

  • This Cisco managed network switch offers 24 Gigabit PoE+ ports for powering your devices easily.
  • Enjoy high bandwidth with 4 x 10G SFP+ uplinks, ensuring fast data transfers on this network switch.
  • Managed features offer advanced control, including VLANs and QoS, optimizing your network performance.
  • With PoE support, simplify IP phone and security camera setups, reducing cable clutter and install time.
  • This energy-efficient switch adapts power usage based on cable length, lowering your operational costs.
  • Ensure network reliability with comprehensive security features like ACLs and storm control on this switch.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

2 Year

$209.99

3 Year

$299.99

4 Year

$359.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Cisco C1300-24P-4X Specifications

Performance

Performance

Jump to...
  • Switching Capacity and Forwarding Rate

    Capacity in Millions of Packets per Second (64-byte packets): 95.23mpps
    Switching Capacity in Gigabits per Second : 128Gbps

Layer 2 Switching

Jump to...
  • Spanning Tree Protocol (STP)

    Standard 802.1d Spanning Tree support
    Fast convergence using 802.1w (Rapid Spanning Tree (RSTP)), enabled by default
    Multiple Spanning Tree instances using 802.1s (MSTP); 8 instances are supported
    Per-VLAN Spanning Tree Plus (PVST+) and Rapid PVST+ (RPVST+); 126 instances are supported

  • Port Grouping/Link Aggregation

    Support for IEEE 802.3ad Link Aggregation Control Protocol (LACP)

    Up to 8 groupsUp to 8 ports per group with 16 candidate ports for each (dynamic) 802.3ad link aggregation

  • VLAN

    Support for up to 4,094 VLANs simultaneously
    Port-based and 802.1Q tag-based VLANs; MAC-based VLAN; protocol-based VLAN; IP subnet-based VLAN
    Management VLAN
    Private VLAN with promiscuous, isolated, and community port
    Private VLAN Edge (PVE), also known as protected ports, with multiple uplinks

  • VLAN (Contd.)

    Guest VLAN, unauthenticated VLAN
    Dynamic VLAN assignment via RADIUS server along with 802.1x client authentication
    CPE VLAN

  • Voice VLAN

    Voice traffic is automatically assigned to a voice-specific VLAN and treated with appropriate levels of QoS. Voice Services Discovery Protocol (VSDP) delivers network wide zero-touch deployment of voice endpoints and call control devices

  • Multicast TV VLAN

    Multicast TV VLAN allows the single multicast VLAN to be shared in the network while subscribers remain in separate VLANs. This feature is also known as Multicast VLAN Registration (MVR)

  • VLAN Translation

    Support for VLAN One-to-One Mapping. In VLAN One-to-One Mapping, on an edge interface customer VLANs (C-VLANs) are mapped to service provider VLANs (S-VLANs) and the original C-VLAN tags are replaced by the specified S-VLAN

  • Q-in-Q

    VLANs transparently cross a service provider network while isolating traffic among customers

  • Selective Q-in-Q

    Selective Q-in-Q is an enhancement to the basic Q-in-Q feature and provides, per edge interface, multiple mappings of different C-VLANs to separate S-VLANs
    Selective Q-in-Q also allows configuring of Ethertype (Tag Protocol Identifier (TPID)) of the S-VLAN tag
    Layer 2 protocol tunneling over Q-in-Q is also supported

  • GVRPGARP

    Generic VLAN Registration Protocol (GVRP) and Generic Attribute Registration Protocol (GARP) enable automatic propagation and configuration of VLANs in a bridged domain

  • Unidirectional Link Detection (UDLD)

    UDLD monitors physical connection to detect unidirectional links caused by incorrect wiring or cable/port faults to prevent forwarding loops and black holing of traffic in switched networks

  • DHCP Relay at Layer 2

    Relay of DHCP traffic to DHCP server in different VLAN; works with DHCP Option 82

  • IGMP (versions 1, 2, and 3 snooping)

    IGMP limits bandwidth-intensive multicast traffic to only the requesters; supports 2K multicast groups (source-specific multicasting is also supported)

  • IGMP Querier

    IGMP querier is used to support a Layer 2 multicast domain of snooping switches in the absence of a multicast router

  • IGMP Proxy

    The IGMP proxy provides a mechanism for multicast forwarding based on IGMP membership information without the need for more complicated multicast routing protocols

  • Head-of-Line (HOL) Blocking

    HOL blocking prevention

  • Loopback Detection

    Loopback detection provides protection against loops by transmitting loop protocol packets out of ports on which loop protection has been enabled. It operates independently of STP

Layer 3

Jump to...
  • IPv4 Routing

    Wire speed routing of IPv4 packets
    Up to 990 static routes and up to 128 IP interfaces

  • IPv6 Routing

    Wire speed routing of IPv6 packets

  • Layer 3 Interface

    Configuration of Layer 3 interface on physical port, Link Aggregation (LAG), VLAN interface, or loopback interface

  • Classless Interdomain Routing (CIDR)

    Support for classless interdomain routing

  • RIP v2

    Support for Routing Information Protocol version 2 for dynamic routing

  • Policy-Based Routing (PBR)

    Flexible routing control to direct packets to different next hop based on IPv4 or IPv6 Access Control List (ACL)

  • DHCP Server

    Switch functions as an IPv4 DHCP server serving IP addresses for multiple DHCP pools/scopes Support for DHCP options

  • DHCP Relay at Layer 3

    Relay of DHCP traffic across IP domains

  • User Datagram Protocol (UDP) Relay

    Relay of broadcast information across Layer 3 domains for application discovery or relaying of Bootstrap Protocol (BOOTP)/DHCP packets

Stacking

Jump to...
  • High Availability

    Fast stack failover delivers minimal traffic loss. Support link aggregation across multiple units in a stack

  • Plug-and-Play Stacking Configuration

    Active/standby for resilient stack control
    Auto numbering
    Hot swap of units in stack
    Ring and chain stacking options, auto stacking port speed, flexible stacking port options

  • High-Speed Stack Interconnects

    Cost-effective high-speed 10G fiber interfaces

Security

Jump to...
  • Secure Shell (SSH) Protocol

    SSH is a secure replacement for Telnet traffic. Secure Copy Protocol (SCP) also uses SSH. SSH v1 and v2 are supported

  • Secure Sockets Layer (SSL)

    SSL support: Encrypts all HTTPS traffic, allowing highly secure access to the browser-based management GUI in the switch

  • IEEE 802.1X (Authenticator Role)

    802.1X: Remote Authentication Dial-In User Service (RADIUS) authentication and accounting
    MD5 hash
    Guest VLAN
    Unauthenticated VLAN
    Single/multiple host mode and single/multiple sessions
    Supports time-based 802.1X; dynamic VLAN assignment; MAC authentication

  • IEEE 802.1X Supplicant

    A switch can be configured to act as a supplicant to another switch. This enables extended secure access in areas outside the wiring closet (such as conference rooms)

  • Web-Based Authentication

    Web-based authentication provides network admission control through web browser to any host devices and operating systems

  • STP Bridge Protocol Data Unit Guard

    A security mechanism to protect the network from invalid configurations. A port enabled for BPDU Guard is shut down if a BPDU message is received on that port. This avoids accidental topology loops

  • STP Root Guard

    This prevents edge devices not in the network administrator's control from becoming Spanning Tree Protocol root nodes

  • STP Loopback Guard

    Provides additional protection against Layer 2 forwarding loops (STP loops)

  • DHCP Snooping

    Filters out DHCP messages with unregistered IP addresses and/or from unexpected or untrusted interfaces. This prevents rogue devices from behaving as DHCP Servers

  • IP Source Guard (IPSG)

    When IP Source Guard is enabled at a port, the switch filters out IP packets received from the port if the source IP addresses of the packets have not been statically configured or dynamically learned from DHCP snooping. This prevents IP address spoofing

  • Dynamic ARP Inspection (DAI)

    The switch discards ARP packets from a port if there are no static or dynamic IP/MAC bindings or if there is a discrepancy between the source or destination addresses in the ARP packet. This prevents man-in-the-middle attacks

  • IP/MAC/Port Binding (IPMB)

    The preceding features (DHCP Snooping, IP Source Guard, and Dynamic ARP Inspection) work together to prevent DOS attacks in the network, thereby increasing network availability

  • Secure Core Technology (SCT)

    Makes sure that the switch will receive and process management and protocol traffic no matter how much traffic is received

  • Secure Sensitive Data (SSD)

    A mechanism to manage sensitive data (such as passwords, keys, and so on) securely on the switch, populating this data to other devices, and secure autoconfig. Access to view the sensitive data as plaintext or encrypted is provided according to the user-configured access level and the access method of the user

  • Trustworthy Systems

    Trustworthy systems provide a highly secure foundation for Cisco products Run-time defenses (Executable Space Protection (X-Space)
    Address Space Layout Randomization (ASLR), Built-In Object Size Checking (BOSC))

  • Private VLAN

    Private VLAN provides security and isolation between switch ports, which helps ensure that users cannot snoop on other users' traffic; supports multiple uplinks

  • Layer 2 Isolation Private VLAN Edge

    PVE (also known as protected ports) provides Layer 2 isolation between devices in the same VLAN, supports multiple uplinks

  • Port Security

    Ability to lock source MAC addresses to ports and limits the number of learned MAC addresses

  • RADIUS/TACACS+

    Supports RADIUS and TACACS authentication. Switch functions as a client

  • RADIUS Accounting

    The RADIUS accounting functions allow data to be sent at the start and end of services, indicating the amount of resources (such as time, packets, bytes, and so on) used during the session

  • Storm Control

    Broadcast, multicast, and unknown unicast

  • DoS Prevention

    Denial-of-Service (DOS) attack prevention

  • Multiple user privilege levels in CLI

    Level 1, 7, and 15 privilege levels

  • ACLs

    Support for up to 1,024 rules
    Drop or rate limit based on source and destination MAC, VLAN ID, IPv4 or IPv6 address, IPv6 flow label, protocol, port, Differentiated Services Code Point (DSCP)/IP precedence, Transmission Control Protocol/User Datagram Protocol (TCP/UDP) source and destination ports, 802.1p priority, Ethernet type

  • ACLs (Contd.)

    Internet Control Message Protocol (ICMP) packets, IGMP packets, TCP flag; ACL can be applied on both ingress and egress sides
    Time-based ACLs supported

Quality of Service

Jump to...
  • Priority Levels

    8 hardware queues

  • Scheduling

    Strict priority and Weighted Round-Robin (WRR)

  • Class of Service

    Port based
    802.1p VLAN priority-based
    IPv4/v6 IP precedence/Type of Service (ToS)/DSCP-based
    Differentiated Services (DiffServ)
    classification and remarking ACLs
    trusted QoS Queue assignment based on DSCP and class of service (802.1p/CoS)

  • Rate Limiting

    Ingress policer; egress shaping and rate control; per VLAN, per port, and flow based; 2R3C policing

  • Congestion Avoidance

    A TCP congestion avoidance algorithm is required to minimize and prevent global TCP loss synchronization

  • ISCSI Traffic Optimization

    A mechanism for giving priority to iSCSI traffic over other types of traffic

Standards

Jump to...
  • Standards

    IEEE 802.3 10BASE-T Ethernet
    IEEE 802.3u 100BASE-TX Fast Ethernet
    IEEE 802.3ab 1000BASE-T Gigabit Ethernet
    IEEE 802.3ad Link Aggregation Control Protocol
    IEEE 802.3z Gigabit Ethernet
    IEEE 802.3ae 10GBit/s Ethernet over fiber for LAN
    IEEE 802.3an 10GBase-T 10GBit/s Ethernet over copper twisted pair cable
    IEEE 802.3x Flow Control
    IEEE 802.1D (STP GARP and GVRP)
    IEEE 802.1Q/p VLAN
    IEEE 802.1w Rapid STP

  • Standards (Contd.)

    IEEE 802.1s Multiple STP
    IEEE 802.1X Port Access Authentication
    IEEE 802.3af
    IEEE 802.3at
    IEEE 802.1AB Link Layer Discovery Protocol
    IEEE 802.3az Energy Efficient Ethernet
    RFC 768
    RFC 783
    RFC 791
    RFC 792
    RFC 793
    RFC 813
    RFC 826
    RFC 879
    RFC 896
    RFC 854
    RFC 855
    RFC 856
    RFC 858
    RFC 894
    RFC 919
    RFC 920
    RFC 922
    RFC 950
    RFC 951
    RFC 1042
    RFC 1071

  • Standards (Contd..)

    RFC 1123
    RFC 1141
    RFC 1155
    RFC 1157
    RFC 1213
    RFC 1215
    RFC 1286
    RFC 1350
    RFC 1442
    RFC 1451
    RFC 1493
    RFC 1533
    RFC 1541
    RFC 1542
    RFC 1573
    RFC 1624
    RFC 1643
    RFC 1700
    RFC 1757
    RFC 1867
    RFC 1907
    RFC 2011
    RFC 2012
    RFC 2013
    RFC 2030
    RFC 2131
    RFC 2132
    RFC 2233
    RFC 2576

  • Standards (Contd...)

    RFC 2616
    RFC 2618
    RFC 2665
    RFC 2666
    RFC 2674
    RFC 2737
    RFC 2819
    RFC 2863
    RFC 3164
    RFC 3176
    RFC 3411
    RFC 3412
    RFC 3413
    RFC 3414
    RFC 3415
    RFC 3416
    RFC 4330

  • IPv6

    IPv6 host mode; IPv6 over Ethernet; Dual IPv6/IPv4 stack
    IPv6 neighbor and router discovery (ND); IPv6 stateless address auto configuration; Path Maximum Transmission Unit (MTU) discovery
    Duplicate Address Detection (DAD); ICMP version 6
    DHCPv6 stateful client
    IPv6 over IPv4 network with Intrasite Automatic Tunnel Addressing Protocol (ISATAP) tunnel support
    USGv6 and IPv6 Gold Logo certified

  • IPv6 QoS

    Prioritize IPv6 packets in hardware

  • IPv6 ACL

    Drop or rate limit IPv6 packets in hardware

  • IPv6 First Hop Security

    RA guard
    ND inspection
    DHCPv6 guard
    Neighbor binding table (snooping and static entries)
    Neighbor binding integrity check

  • MLD (v1/2) Snooping

    Deliver IPv6 multicast packets only to the required receivers

  • MLD Proxy

    The MLD proxy provides a mechanism for multicast forwarding based on MLD membership information without the need for more complicated multicast routing protocols.

  • IPv6 Applications

    Web/SSL
    Telnet server/SSH
    ping
    traceroute
    Simple Network Time Protocol (SNTP)
    Trivial File Transfer Protocol (TFTP)
    SNMP
    RADIUS
    syslog
    Domain Name System (DNS) client
    Telnet Client
    DHCP Client
    DHCP Autoconfig
    IPv6 DHCP Relay
    Terminal Access Controller Access Control System Plus (TACACS+)

  • IPv6 RFCs Supported

    RFC 4443 (which obsoletes RFC2463): ICMP version 6
    RFC 4291 (which obsoletes RFC 3513): IPv6 address architecture
    RFC 4291: IPv6 addressing architecture
    RFC 2460: IPv6 specification
    RFC 4861 (which obsoletes RFC 2461): neighbor discovery for IPv6
    RFC 4862 (which obsoletes RFC 2462): IPv6 stateless address auto configuration

  • IPv6 RFCs Supported (Contd.)

    RFC 1981: path MTU discovery
    RFC 4007: IPv6 scoped address architecture
    RFC 3484: default address selection mechanism
    RFC 5214 (which obsoletes RFC 4214): ISATAP tunneling
    RFC 4293: MIB IPv6: textual conventions and general group
    RFC 3595: textual conventions for IPv6 flow label

Management

Jump to...
  • Cisco Business Dashboard

    Support for embedded probe for Cisco Business Dashboard running on the switch. Eliminates the need to set up a separate hardware or virtual machine for the Cisco Business Dashboard Probe on site

  • Cisco Business Mobile App

    Mobile app for Cisco Business Switch and Wireless products. Helps to set up a local network in minutes and provide easy management at your fingertips.

  • Cisco Network Plug & Play (PnP) Agent

    The Cisco Network Plug and Play solution provides a simple, secure, unified, and integrated offering to ease new branch or campus device rollouts or for provisioning updates to an existing network. The solution provides a unified approach to provision Cisco routers, switches, and wireless devices with a near-zero-touch deployment experience
    Supports Cisco PnP Connect

  • Web User Interface

    Built-in switch configuration utility for easy browser-based device configuration (HTTP/HTTPS). Supports simple and advanced mode, configuration, wizards, customizable dashboard, system maintenance, monitoring, online help, and universal search

  • SNMP

    SNMP versions 1, 2c, and 3 with support for traps, and SNMP version 3 User-based Security Model (USM)

  • Standard MIBs

    lldp-MIB
    lldpextdot1-MIB
    lldpextdot3-MIB
    lldpextmed-MIB
    rfc2674-MIB
    rfc2575-MIB
    rfc2573-MIB
    rfc2233-MIB
    rfc2013-MIB
    rfc2012-MIB
    rfc2011-MIB
    RFC-1212
    RFC-1215
    SNMPv2-CONF
    SNMPv2-TC
    p-bridge-MIB
    q-bridge-MIB
    rfc1389-MIB
    rfc1493-MIB
    rfc1611-MIB
    rfc1612-MIB

  • Standard MIBs (Contd.)

    rfc1850-MIB
    rfc1907-MIB
    rfc2571-MIB
    rfc2572-MIB
    rfc2574-MIB
    rfc2576-MIB
    rfc2613-MIB
    rfc2665-MIB
    rfc2668-MIB
    rfc2737-MIB
    rfc2925-MIB
    rfc3621-MIB
    rfc4668-MIB
    rfc4670-MIB
    trunk-MIB
    tunnel-MIB
    udp-MIB
    draft-ietf-bridge-8021x-MIB
    draft-ietf-bridge-rstpmib-04-MIB
    draft-ietf-hubmib-etherif-mib-v3-00-MIB

  • Standard MIBs (Contd..)

    draft-ietf-syslog-device-MIB
    ianaaddrfamnumbers-MIB
    ianaifty-MIB
    ianaprot-MIB
    inet-address-MIB
    ip-forward-MIB
    ip-MIB
    RFC1155-SMI
    RFC1213-MIB
    SNMPv2-MIB
    SNMPv2-SMI
    SNMPv2-TM
    RMON-MIB
    rfc1724-MIB
    dcb-raj-DCBX-MIB-1108-MIB
    rfc1213-MIB
    rfc1757-MIB

  • Private MIBs

    CISCOSB-lldp-MIB
    CISCOSB-brgmulticast-MIB
    CISCOSB-bridgemibobjects-MIB
    CISCOSB-bonjour-MIB
    CISCOSB-dhcpcl-MIB
    CISCOSB-MIB
    CISCOSB-wrandomtaildrop-MIB
    CISCOSB-traceroute-MIB
    CISCOSB-telnet-MIB
    CISCOSB-stormctrl-MIB
    CISCOSB-ssh-MIB
    CISCOSB-socket-MIB
    CISCOSB-sntp-MIB
    CISCOSB-smon-MIB
    CISCOSB-phy-MIB
    CISCOSB-multisession terminal-MIB
    CISCOSB-mri-MIB

  • Private MIBs (Contd.)

    CISCOSB-jumbo frames-MIB
    CISCOSB-gvrp-MIB
    CISCOSB-endofmib-MIB
    CISCOSB-dot1x-MIB
    CISCOSB-deviceparams-MIB
    CISCOSB-cli-MIB
    CISCOSB-cdb-MIB
    CISCOSB-brgmacswitch-MIB
    CISCOSB-3sw2swtables-MIB
    CISCOSB-smartPorts-MIB
    CISCOSB-tbi-MIB
    CISCOSB-macbaseprio-MIB
    CISCOSB-policy-MIB
    CISCOSB-env_mib
    CISCOSB-sensor-MIB
    CISCOSB-aaa-MIB
    CISCOSB-application-MIB
    CISCOSB-bridgesecurity-MIB

  • Private MIBs (Contd..)

    CISCOSB-copy-MIB
    CISCOSB-CpuCounters-MIB
    CISCOSB-Custom1BonjourService-MIB
    CISCOSB-dhcp-MIB
    CISCOSB-dlf-MIB
    CISCOSB-dnscl-MIB
    CISCOSB-embweb-MIB
    CISCOSB-fft-MIB
    CISCOSB-file-MIB
    CISCOSB-greeneth-MIB
    CISCOSB-interfaces-MIB
    CISCOSB-interfaces_recovery-MIB
    CISCOSB-ip-MIB
    CISCOSB-iprouter-MIB
    CISCOSB-ipv6-MIB
    CISCOSB-mnginf-MIB
    CISCOSB-lcli-MIB
    CISCOSB-localization-MIB
    CISCOSB-mcmngr-MIB

  • Private MIBs (Contd...)

    CISCOSB-mng-MIB
    CISCOSB-physdescription-MIB
    CISCOSB-PoE-MIB
    CISCOSB-protectedport-MIB
    CISCOSB-rmon-MIB
    CISCOSB-rs232-MIB
    CISCOSB-SecuritySuite-MIB
    CISCOSB-snmp-MIB
    CISCOSB-specialbpdu-MIB
    CISCOSB-banner-MIB
    CISCOSB-syslog-MIB
    CISCOSB-TcpSession-MIB
    CISCOSB-traps-MIB
    CISCOSB-trunk-MIB
    CISCOSB-tuning-MIB
    CISCOSB-tunnel-MIB
    CISCOSB-udp-MIB
    CISCOSB-vlan-MIB

  • Private MIBs (Contd....)


    CISCOSB-ipstdacl-MIB
    CISCOSB-eee-MIB
    CISCOSB-ssl-MIBCISCOSB-qosclimib-MIB
    CISCOSB-digitalkeymanage-MIB
    CISCOSB-tbp-MIB
    CISCOSMB-MIB
    CISCOSB-secsd-MIB
    CISCOSB-draft-ietf-entmib-sensor-MIB
    CISCOSB-draft-ietf-syslog-device-MIB
    CISCOSB-rfc2925-MIB
    CISCO-SMI-MIB
    CISCOSB-DebugCapabilities-MIB
    CISCOSB-CDP-MIB
    CISCOSB-vlanVoice-MIB
    CISCOSB-EVENTS-MIB

  • Private MIBs (Contd.....)

    CISCOSB-sysmng-MIB
    CISCOSB-sct-MIB
    CISCO-TC-MIB
    CISCO-VTP-MIB
    CISCO-CDP-MIB

  • Remote Monitoring (RMON)

    Embedded RMON software agent supports 4 RMON groups (history, statistics, alarms, and events) for enhanced traffic management, monitoring, and analysis

  • IPv4 and IPv6 Dual Stack

    Coexistence of both protocol stacks to ease migration

  • Firmware Upgrade

    Web browser upgrade (HTTP/HTTPS) and TFTP and upgrade over SCP running over SSH Dual images for resilient firmware upgrades

  • Port Mirroring

    Traffic on a port can be mirrored to another port for analysis with a network analyzer or RMON probe. Up to 8 source ports can be mirrored to one destination port

  • VLAN Mirroring

    Traffic from a VLAN can be mirrored to a port for analysis with a network analyzer or RMON probe. Up to 8 source VLANs can be mirrored to one destination port.

  • Flow-Based Redirection and Mirroring

    Redirect or mirror traffic to a destination port or mirroring session based on flow

  • Remote Switch Port Analyzer (RSPAN)

    Traffic can be mirrored across Layer 2 domain to a remote port on a different switch for easier troubleshooting

  • sFlow Agent

    Switch can export sFlow sample to external collectors. sFlow provides visibility into network traffic down to flow level

  • DHCP

    DHCP options facilitate tighter control from a central point (DHCP server) to obtain IP address
    autoconfiguration (with configuration and image file download)
    DHCP relay, and hostname (Options 12, 59, 60, 66, 67, 82, 125, 129 & 150)

  • Secure Copy (SCP)

    Securely transfer files to and from the switch

  • Autoconfiguration with SCP File Download

    Enables secure mass deployment with protection of sensitive data

  • Text-Editable Config Files

    Config files can be edited with a text editor and downloaded to another switch, facilitating easier mass deployment

  • Smart ports

    Simplified configuration of QoS and security capabilities

  • Auto Smart ports

    Applies the intelligence delivered through the Smartport roles and applies it automatically to the port based on the devices discovered over Cisco Discovery Protocol or LLDP-MED. This facilitates zero-touch deployments

  • Text view CLI

    Scriptable command-line interface. A full CLI as well as a menu-based CLI is supported. User privilege levels 1, 7, and 15 are supported for the CLI

  • Localization

    Localization of GUI and documentation into multiple languages

  • Login Banner

    Configurable multiple banners for web as well as CLI

  • Other Management

    Traceroute
    single IP management
    HTTP/HTTPS
    SSH
    RADIUS
    port mirroring
    TFTP upgrade
    DHCP client
    BOOTP
    SNTP
    Xmodem upgrade
    cable diagnostics
    ping
    syslog
    Telnet client (SSH secure support)
    automatic time settings from Management Station

Green (Power Efficiency)

Jump to...
  • Energy Detect

    Automatically turns power off on RJ-45 port when detecting link down. Active mode is resumed without loss of any packets when the switch detects the link up

  • Cable Length Detection

    Adjusts the signal strength based on the cable length. Reduces the power consumption for shorter cables.

  • EEE Compliant (802.3az)

    Supports IEEE 802.3az on all copper Gigabit Ethernet ports

  • Disable Port LEDs

    LEDs can be manually turned off to save on energy

  • Time-Based Port Operation

    Link up or down based on user-defined schedule (when the port is administratively up)

  • Time-Based PoE

    PoE power can be on or off based on user-defined schedule to save energy

General

Jump to...
  • Jumbo Frame

    Frame sizes up to 9K bytes. The default MTU is 2K bytes

  • MAC Table

    16K addresses

Discovery

Jump to...
  • Bonjour

    The switch advertises itself using the Bonjour protocol

  • LLDP (802.1ab) with LLDP-MED extensions

    LLDP allows the switch to advertise its identification, configuration, and capabilities to neighboring devices that store the data in a MIB. LLDP-MED is an enhancement to LLDP that adds the extensions needed for IP phones

  • Cisco Discovery Protocol

    The switch advertises itself using the Cisco Discovery Protocol. It also learns the connected device and its characteristics via Cisco Discovery Protocol

Power over Ethernet (PoE)

Jump to...
  • Power dedicated to PoE

    195W

  • Number of ports that support PoE

    24

Hardware

Jump to...
  • Power Consumption (Worst Case)

    System Power Consumption: 110V=31.4W, 220V=31.8W
    Power consumption (with PoE): 110V=235.8W, 220V=232.9W
    Idle Power: 110V=13.9W, 220V=14.8W

  • Heat Dissipation (BTU/hr)

    804.1

  • Ports

    Total System Ports: 24x Gigabit Ethernet + 4x 10G
    RJ-45 Ports: 24x Gigabit Ethernet
    Combo Ports (RJ45 + Small form-factor pluggable (SFP)): 4x SFP+

  • Console Port

    Cisco standard RJ45 console port

  • USB Slot

    USB Type-A slot on the front panel of the switch for easy file and image management

  • Buttons

    Reset button

  • Cabling Type

    Unshielded Twisted Pair (UTP) Category 5e or better for 1000BASE-T

  • LEDs

    System, Link/Act, PoE, Speed

  • Flash

    256MB

  • CPU

    800 MHz ARM

  • DRAM

    512MB

  • Packet Buffer

    1.5MB

Environmental

Jump to...
  • Power

    100-240V 50-60 Hz

  • Certification

    UL (UL 62368)
    CSA (CSA 22.2)
    CE mark
    FCC Part 15 (CFR 47) Class-A

  • Operating Temperature

    23 Degree to 122 Degree F (-5 Degree to 50 Degree C)

  • Storage Temperature

    -13 Degree to 158 Degree F (-25 Degree to 70 Degree C)

  • Operating Humidity

    10% to 90%, relative, noncondensing

  • Storage Humidity

    10% to 90%, relative, noncondensing

  • Acoustic Noise and (MTBF)

    FAN (Number): Fanless
    MTBF at 77 Degree F (25 Degree C): 337,232hours

Minimum Requirements

Jump to...
  • Minimum Requirements

    Web browser: Chrome, Firefox, Edge, Safari
    Category 5e Ethernet network cable
    TCP/IP, network adapter, and network operating system (such as Microsoft Windows, Linux, or Mac OS X) installed

Physical

Jump to...
  • Dimensions

    17.5 x 11.77 x 1.73" (445 x 299 x 44mm)

  • Weight

    8.70 lbs (3.95kg)

  • UPC Code

    889728521529

About Cisco C1300-24P-4X

Overcome network challenges with the Cisco Catalyst C1300-24P-4X 24-Port Gigabit PoE+ Compliant Managed Network Switch, a robust solution tailored for small to medium-sized businesses and branch offices. As part of the Cisco Catalyst 1300 Series, this enterprise-class Gigabit Ethernet Layer 3 switch is engineered to deliver simplicity, flexibility, and security, making it an ideal choice for deployment beyond the traditional wiring closet.

Operating on a customized Linux OS, the Catalyst 1300 Series features an intuitive dashboard that streamlines network setup and management. This switch is designed to accelerate digital transformation while ensuring pervasive security to protect business-critical transactions. It offers an optimal blend of affordability and advanced capabilities, supporting the creation of a more efficient and connected workforce.

Whether your business requires a high-performance network for employee connectivity or a comprehensive solution for data, voice, and video services, the Cisco Catalyst 1300 Series meets diverse networking needs. It excels in various deployment scenarios, including secure office connectivity, unified communications, and highly secure guest access. With high performance and reliable connectivity, it enhances file transfers, data processing, and network uptime, keeping employees productive.

The Catalyst 1300 Series is a managed network solution that provides the performance and traffic-handling intelligence necessary for unified communications. It integrates seamlessly with Cisco's portfolio of IP telephony and unified communications products, ensuring compatibility and ease of integration for a complete business solution.

Security is paramount, and the Catalyst 1300 Series delivers with advanced features like IEEE 802.1X, port security, and web-based authentication, which limit network access and protect against unauthorized users. The switch also includes dynamic ARP inspection, IP Source Guard, and DHCP snooping to thwart deliberate network attacks. IPv6 First Hop Security further extends protection against address spoofing and man-in-the-middle attacks.

The switch supports up to 48 Power over Ethernet (PoE) ports, simplifying the deployment of IP telephony, wireless, and IP surveillance technologies by powering network endpoints over a single Ethernet cable. This reduces the need for separate power supplies, facilitating quicker and more cost-effective technology rollouts.

With support for both IPv4 and IPv6, the Catalyst 1300 Series ensures your network is future-ready, accommodating the growing number of network devices while maintaining compatibility with existing applications. Advanced Layer 3 traffic management capabilities, including dynamic routing and VLAN communication, enhance network efficiency by offloading internal traffic tasks from routers.

The Cisco Catalyst 1300 Series also features Front Panel Stacking, allowing up to eight switches to be managed as a single unit with a unified data, control, and management plane. This reduces complexity and improves network resiliency and availability, offering cost savings and administrative benefits through cross-stack QoS, VLANs, and more.

Designed with a sleek and compact form factor, the Catalyst 1300 Series provides deployment flexibility, suitable for environments like retail stores, open-plan offices, and classrooms, without disrupting the aesthetic. Embrace the power of the Cisco Catalyst C1300-24P-4X to transform your network infrastructure with ease and confidence.

Cisco C1300-24P-4X Features

  • Enterprise-class, fixed, managed Layer 3 switches for SMBs and branch offices
  • Operates on customized Linux OS with intuitive dashboard
  • Simplifies network setup and accelerates digital transformation
  • Provides strong security to protect business-critical transactions
  • Combines affordability and advanced capabilities for growing networks
  • Offers seamless office connectivity, unifies data and voice communication
  • Provides highly secure guest network access in public settings
  • Supports IPv6, advanced traffic management, and Power over Ethernet (PoE)

Warranty Information

This product has a limited lifetime warranty.

Key Features

  • This Cisco managed network switch offers 24 Gigabit PoE+ ports for powering your devices easily.
  • Enjoy high bandwidth with 4 x 10G SFP+ uplinks, ensuring fast data transfers on this network switch.
  • Managed features offer advanced control, including VLANs and QoS, optimizing your network performance.
  • With PoE support, simplify IP phone and security camera setups, reducing cable clutter and install time.
  • This energy-efficient switch adapts power usage based on cable length, lowering your operational costs.
  • Ensure network reliability with comprehensive security features like ACLs and storm control on this switch.

What's in the box:

  • Cisco Catalyst C1300-24P-4X 24-Port Gigabit PoE+ Compliant Managed Network Switch
  • Power Cable
  • Mounting Hardware
  • User Manual
  • Cisco Lifetime Limited Warranty
