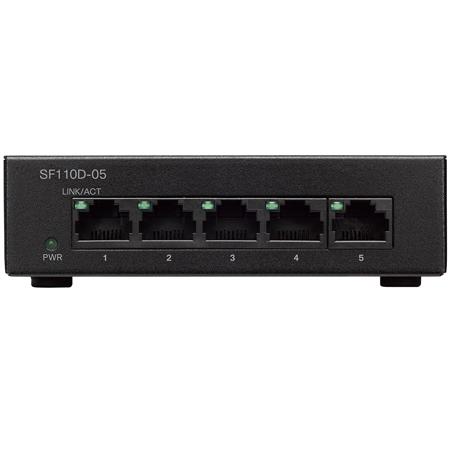

Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch
See all Cisco items

Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch

SKU: CISF110D05NA

This item is no longer available.

Recommended Alternatives

Cisco CBS220-48P-4X: Picture 1 regular
Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Compliant Managed Network Switch w/SFP+
$999.99
Cisco CBS220-8FP-E-2G: Picture 1 regular
Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Compliant Managed Network Switch w/SFP
$254.00
Cisco C1300-24P-4X: Picture 1 regular
Cisco Catalyst C1300-24P-4X 24-Port Gigabit PoE+ Managed Network Switch
$1,290.47
Cisco CBS110-8T-D: Picture 1 regular
Cisco 110 Series CBS110-8T-D 8-Port Gigabit Ethernet Unmanaged Switch
$72.40
See More Recommendations
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

FAQ

What does 'unmanaged' mean in the context of the Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch?

An 'unmanaged' switch like the Cisco SF110D-05 is a simple, plug-and-play device that requires no configuration or management. It automatically handles network traffic, making it a user-friendly option for small businesses or offices without a dedicated IT staff.

What is Power over Ethernet (PoE) and how does it benefit the Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch?

Power over Ethernet (PoE) is a technology that allows network cables to carry electrical power. For devices like the Cisco SF110D-05, this means they can be powered directly through the Ethernet cable, eliminating the need for separate power supplies or outlets.

What kind of devices can be connected to the Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch?

The Cisco SF110D-05 can connect a variety of devices to your network, including computers, printers, copiers, and other essential office equipment. It's a versatile solution for expanding your network connectivity.

How does the Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch improve network speed and performance?

The Cisco SF110D-05 is designed to provide wire-speed Fast Ethernet or Gigabit Ethernet connectivity. This means it can handle large amounts of data at high speeds, improving the overall performance and efficiency of your network.

Is the Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch suitable for a growing office?

Absolutely. The Cisco SF110D-05 is designed to be scalable and versatile, making it an excellent choice for growing offices. Its ability to connect multiple devices and deliver large amounts of data rapidly makes it a valuable asset for expanding businesses.

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Cisco SF110D-05 Specifications

  • Standards

    IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

  • Cabling Type

    Category 5e or better

  • Enclosure Type

    Desktop

  • LED Indicators

    System/PWR, link/activity, 100M, PoE, mMax PoE, cable diagnostics, loop detection, gigabit, mini-GBIC if present

  • Ports

    10/100 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord
    5 RJ-45 connectors for 10BASE-T/100BASE-TX

  • Power Supply

    DC 12V, 500mA

  • Lock Slot

    Slot for Kensington lock

  • Fanless

    No

  • Switching Capacity

    1Gbps

  • Forwarding Capacity

    0.74Mpps

  • Head-of-Line (HOL) Blocking

    HOL blocking prevention

  • Jumbo Frame

    9216 bytes

  • Quality of Service (QoS)

    802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR)

  • Loop Detection

    Helps discover loops in the network to avoid broadcast storms

  • Cable Diagnostics

    Quickly identify and troubleshoot network cable faults and/or shorts

  • Compliance/Certifications

    UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 158 deg. F (-20 to 70 deg. C)

  • Operating Humidity

    10% to 90%, relative, noncondensing

  • Storage Humidity

    5% to 90%, relative, noncondensing

  • System Memory

    128MB RAM
    128MB Flash

  • Minimum Requirements

    Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
    Cat5 or better Ethernet cable
    Network interface card for each computer

  • Localization

    Chinese (simplified), German, French, Italian, Spanish, Japanese

  • MAC Address Table Size

    1000 entries

  • Dimensions (WxDxH)

    3.65 x 1.06 x 3.57" (92.71 x 26.92 x 90.68mm)

  • Weight

    0.47 lbs (0.21kg)

  • UPC Code

    882658720864

About Cisco SF110D-05

Build a fast, reliable network with these entry-level, low-cost, reliable networking solutions that provide plug-and-play connectivity. The 110 Series delivers Fast Ethernet and Gigabit switching with key features like Power over Ethernet (PoE), energy efficiency, traffic prioritization and network diagnostics for seamless integration into the network. Cisco Small Business 110 Series Unmanaged Switches deliver wire-speed Fast Ethernet or Gigabit Ethernet connectivity, in desktop and rack-mount models.

Give your office network a boost of speed and performance at a low price that takes almost no time to set up. Easily build a highly reliable network to connect your computers, printers, copiers and other office equipment. If your business is like most small companies, you do not have an IT staff to set up your network for you. Now you can have a high-performance, business-class office network that just works, right out of the box, with the Cisco 110 Series Unmanaged Switches. Users, workgroups, labs, departments or growing offices can now deliver large amounts of multimedia, image and video information across the network in almost no time.

Cisco SF110D-05 Features

  • Affordable 10/100/1000-Mbps speeds for even the most bandwidth-hungry applications
  • 5 to 24-port models that are desktop or rack mountable
  • Power over Ethernet models to provide power to IP phones, access points, and other devices
  • Works right out of the box: plug and play and no setup

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Cisco SF110D-05 5-Port 10/100 Desktop Unmanaged Switch
  • Power Cord / Adapter
  • Mounting Hardware
  • Quick Start Guide
  • Cisco Lifetime Limited Warranty
