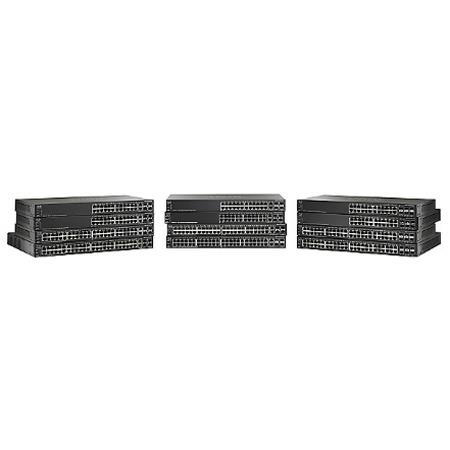

Cisco SF500-24 24-Port 10/100 Stackable Managed Switch
See all Cisco items

Cisco SF500-24 24-Port 10/100 Stackable Managed Switch

SKU: CISF50024K9

This item is no longer available.

Recommended Alternatives

Cisco CBS220-48P-4X: Picture 1 regular
Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Compliant Managed Network Switch w/SFP+
$999.99
Cisco CBS220-8FP-E-2G: Picture 1 regular
Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Compliant Managed Network Switch w/SFP
$254.00$248.50
Cisco C1300-24P-4X: Picture 1 regular
Cisco Catalyst C1300-24P-4X 24-Port Gigabit PoE+ Managed Network Switch
$1,290.47
Cisco CBS110-8T-D: Picture 1 regular
Cisco 110 Series CBS110-8T-D 8-Port Gigabit Ethernet Unmanaged Switch
$72.40
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cisco SF500-24 Specifications

  • Device Type

    24 Port managed and stackable switch

  • Form Factor

    Rack-mountable

  • Ports

    24 x 10/100 + 2 x combo Gigabit SFP + 2 x SFP

  • Routing Protocol

    Static IP routing

  • Compliant Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3az

  • Flash Memory

    32MB

  • RAM

    256MB

  • Status Indicators

    Port transmission speed, system, link/activity

  • Interfaces

    24 x 10Base-T/100Base-TX - RJ45
    2 x 10Base-T/100Base-TX/1000Base-T - RJ45
    4 x SFP (Mini-GBIC)

  • Priority Levels

    4 hardware (8 future)

  • Scheduling

    Strict Priority and weighted round-robin (WRR)

  • Class of Service

    Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLS, Trusted QoS Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

  • Rate Limiting

    Ingress policer; egress sharing adn ingress rate control; per VLAN, per port and flow based

  • Power Device

    Power supply - internal universal

  • IEEE Compliant (802.3az)

    Supports IEEE 802.3az on all Gigabit copper ports

  • Voltage Required

    AC 120/230V (50/60 Hz)

  • Energy Detect

    Automatically turns power off/on Gigabit Ethernet RJ-45 port when detecting link down, Active mode is resumed without loss of any packets when the switch detects link up

  • Cable Length Detection

    Adjusts the signal strength based on the cable length
    Reduces the power consumption for cable shorter then 10m
    Supported on Gigabit Ethernet models

  • Certification

    UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

  • Operating Temperature

    32deg. to 104deg.F (0deg. to 40deg.C)

  • Storage Temperature

    -4deg. to 158deg.F (-20deg. to 70deg.C)

  • Operating Humidity

    10% to 90%, relative, noncondensing

  • Storage Humidity

    10% to 90%, relative, noncondensing

  • Dimensions (W x D x H)

    17.3 x 10.1 x 1.7" / 43.9 x 25.6 x 4.3cm

  • Weight

    6.8 lbs / 3.08kg

  • UPC Code

    882658425004

About Cisco SF500-24

The Cisco SF500-24 is a 24-port stackable, managed 10/100 switch with four Gigabit Ethernet ports consisting of 2 combination ports and 2 Small Form-Factor Pluggable (SFP) ports. The SF500-24 provides a solid foundation for your current business applications, in addition to most future applications. The SF500-24 delivers true stacking, advanced security, quality of service, energy-saving technology (EEE), IPV6 and network features for the reliability and performance necessary in demanding environments. The SF500-24 switch is easy to configure and manage and brings you a choice of management tools.

Cisco SF500-24 Features

  • Easy deployment and use: Intuitive graphical interfaces, remote management capabilities, Text view command-line interface, Cisco Configuration Assistant and automated deployment tools simplify setup and configuration
  • High reliability and resiliency: Stacking capabilities, dual images and advanced redundancy protocols keep your customers' networks running, even after a major failure
  • True stacking: Cisco 500 Series switches allow you to easily manage and configure multiple switches in a stack as a single unit, with a single IP address
  • Strong security: The SF-500-24 allows you to use access control lists (ACLs), guest virtual LANs (VLANs), encrypted management data, IEEE 802.1X port security and other advanced network defense mechanisms features
  • Advanced IP telephony support: Cisco SF500-24 S switches can automatically configure connected IP phones with the right VLAN and quality of service (QoS) parameters to prioritize voice traffic
  • Traffic management: The Cisco SF500-24 supports static Layer 3 routing capabilities, giving you more flexibility to organize and optimize your customers' networks
  • IPv6: The Cisco SF500-24 switches have completed rigorous IPv6 testing and have received the USGv6 and IPv6 Gold certification
  • Power efficiency: Cisco 500 series switches utilize low-power chipsets, fanless designs and other "green" features reduce power consumption and enable quieter operation
  • Reliability and Interoperability: TheSF500-24 has been rigorously tested to deliver the reliability customers expect from Cisco and to easily integrate with other Cisco voice, video, security and networking products

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Cisco SF500-24 24-Port Stackable Managed Switch
  • Rack Mount Kit
  • Power Cord
  • Serial Cable
  • CD-ROM with User Documentation
  • Quick-Start Guide
  • Cisco Warranty
