Cisco SG112-24 Specifications

  • Standards

    IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z Gigabit Ethernet, IEEE 802.3x Flow Control, 802.1p priority, Energy Efficient Ethernet, 802.3af, Power over Ethernet

  • Cabling Type

    Category 5e or better

  • Enclosure Type

    Desktop, Rack-Mountable

  • LED Indicators

    System/PWR, link/activity, 100M, PoE, mMax PoE, cable diagnostics, loop detection, gigabit, mini-GBIC if present

  • Ports

    10/100/100 Ethernet, with support for 802.3af PoE, power port for AC adapter or power cord
    24 RJ-45 connectors for 10BASE-T/100BASE-TX/1000BASE-T ports with 2 combo mini-GBIC slots

  • Power Supply

    110-240VAC, 50-60Hz, internal, universal

  • Lock Slot

    Slot for Kensington lock

  • Fanless

    No

  • Switching Capacity

    48Gbps

  • Forwarding Capacity

    35.7Mpps

  • Head-of-Line (HOL) Blocking

    HOL blocking prevention

  • Jumbo Frame

    9216 bytes

  • Quality of Service (QoS)

    802.1p priority based, 4 hardware queues, priority queuing and weighted round-robin (WRR)

  • Loop Detection

    Helps discover loops in the network to avoid broadcast storms

  • Cable Diagnostics

    Quickly identify and troubleshoot network cable faults and/or shorts

  • Compliance/Certifications

    UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A, FCC Class B

  • Operating Temperature

    32 to 104 deg. F (0 to 40 deg. C)

  • Storage Temperature

    -4 to 158 deg. F (-20 to 70 deg. C)

  • Operating Humidity

    10% to 90%, relative, noncondensing

  • Storage Humidity

    5% to 90%, relative, noncondensing

  • System Memory

    128MB RAM
    128MB Flash

  • Minimum Requirements

    Devices supporting 802.3 Ethernet, 802.u Faster Ethernet, or 802.3ab Gigabit Ethernet
    Cat5 or better Ethernet cable
    Network interface card for each computer

  • MAC Address Table Size

    8000 entries

  • Dimensions (WxDxH)

    11 x 1.75 x 6.7" (279.40 x 44.45 x 170.18mm)

  • Weight

    5.05 lbs (2.29kg)

  • UPC Code

    882658722820

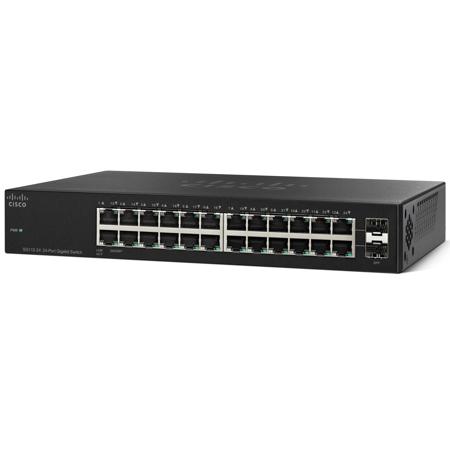

About Cisco SG112-24

Build a fast, reliable network with these entry-level, low-cost, reliable networking solutions that provide plug-and-play connectivity. The 110 Series delivers Fast Ethernet and Gigabit switching with key features like Power over Ethernet (PoE), energy efficiency, traffic prioritization and network diagnostics for seamless integration into the network. Cisco Small Business 110 Series Unmanaged Switches deliver wire-speed Fast Ethernet or Gigabit Ethernet connectivity, in desktop and rack-mount models.

Give your office network a boost of speed and performance at a low price that takes almost no time to set up. Easily build a highly reliable network to connect your computers, printers, copiers and other office equipment. If your business is like most small companies, you do not have an IT staff to set up your network for you. Now you can have a high-performance, business-class office network that just works, right out of the box, with the Cisco 110 Series Unmanaged Switches. Users, workgroups, labs, departments or growing offices can now deliver large amounts of multimedia, image and video information across the network in almost no time.

Cisco SG112-24 Features

  • Affordable 10/100/1000-Mbps speeds for even the most bandwidth-hungry applications
  • 5 to 24-port models that are desktop or rack mountable
  • Power over Ethernet models to provide power to IP phones, access points, and other devices
  • Works right out of the box: plug and play and no setup

What's in the box:

  • Cisco SG112-24 24-Port 10/100/1000 Gigabit Desktop Rack-Mountable Unmanaged Switch
  • Power Cord / Adapter
  • Mounting Hardware
  • Quick Start Guide
  • Cisco Lifetime Limited Warranty
