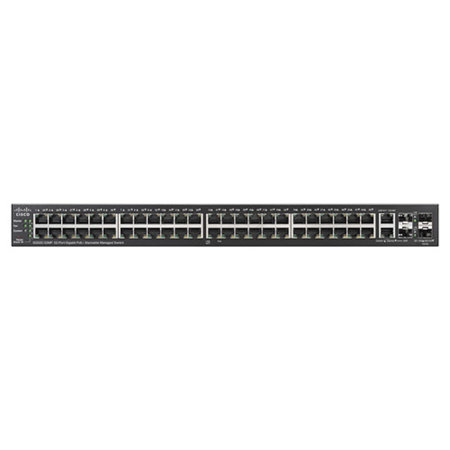

Cisco SG500-52P 52-Port Gigabit PoE Stackable Managed Switch
See all Cisco items

Cisco SG500-52P 52-Port Gigabit PoE Stackable Managed Switch

SKU: CISG50052PK9

This item is no longer available.

Recommended Alternatives

Cisco CBS220-48P-4X: Picture 1 regular
Cisco CBS220-48P-4X 48-Port Gigabit PoE+ Compliant Managed Network Switch w/SFP+
$999.99
Cisco CBS220-8FP-E-2G: Picture 1 regular
Cisco CBS220-8FP-E-2G 8-Port Gigabit PoE Compliant Managed Network Switch w/SFP
$254.00
Cisco C1300-24P-4X: Picture 1 regular
Cisco Catalyst C1300-24P-4X 24-Port Gigabit PoE+ Managed Network Switch
$1,290.47
Cisco CBS110-8T-D: Picture 1 regular
Cisco 110 Series CBS110-8T-D 8-Port Gigabit Ethernet Unmanaged Switch
$72.40
See More Recommendations
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Cisco SG500-52P Specifications

  • Form Factor

    Rack-mountable

  • Ports

    48 x 10/100/1000 + 2 x combo Gigabit SFP + 2 x SFP

  • Power over Ethernet (PoE) Ports

    48

  • Routing Protocol

    Static IP routing

  • Compliant Standards

    IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at, IEEE 802.3az

  • Flash Memory

    32MB

  • RAM

    256MB

  • Status Indicators

    Port transmission speed, system, link/activity

  • Interfaces

    48 x 10Base-T/100Base-TX/1000Base-T - RJ45 - PoE
    2 x 10Base-T/100Base-TX/1000Base-T - RJ45
    4 x SFP (Mini-GBIC)

  • Priority Levels

    4 hardware (8 future)

  • Scheduling

    Strict Priority and weighted round-robin (WRR)

  • Class of Service

    Port based; 802.1p VLAN priority based; IPv4/v6 IP precedence/ToS/DSCP based; DiffServ; classification and re-marking ACLS, Trusted QoS Queue assignment based on differentiated services code point (DSCP) and class of service (802.1p/CoS)

  • Rate Limiting

    Ingress policer; egress sharing adn ingress rate control; per VLAN, per port and flow based

  • Power Device

    Power supply - internal universal

  • Voltage Required

    AC 120/230V (50/60 Hz)

  • Energy Detect

    Automatically turns power off/on Gigabit Ethernet RJ-45 port when detecting link down, Active mode is resumed without loss of any packets when the switch detects link up

  • Cable Length Detection

    Adjusts the signal strength based on the cable length
    Reduces the power consumption for cable shorter then 10m
    Supported on Gigabit Ethernet models

  • IEEE Compliant (802.3az)

    Supports IEEE 802.3az on all Gigabit copper ports

  • Certification

    UL (UL 60950), CSA (CSA 22.2), CE mark, FCC Part 15 (CFR 47) Class A

  • Operating Temperature

    32deg. to 104deg.F (0deg. to 40deg.C)

  • Storage Temperature

    -4deg. to 158deg.F (-20deg. to 70deg.C)

  • Operating Humidity

    10% to 90%, relative, noncondensing

  • Storage Humidity

    10% to 90%, relative, noncondensing

  • Dimensions (W x D x H)

    17.3 x 10.1 x 1.7"/43.9 x 43.9 x 4.31cm

  • Weight

    12.3 lbs/ 5.57kg

  • UPC Code

    882658424762

About Cisco SG500-52P

With the Cisco SG500-52P, you receive a 52-port, stackable, managed Gigabit Ethernet switch that includes two combination ports and two small form-factor pluggable (SFP) ports. The SG500-52P gives you a solid foundation for your current business applications and is designed to support future growth and applications.

The Cisco SG500-52P has true stacking capabilities and advanced security features, as well and energy-saving technology, support for IPV6 and has network features to deliver the reliability and performance required by your business.

The SG500-52P switch is easy to configure and manage since it offers you a choice of management tools. The Cisco SG500-52P delivers the ideal technology foundation and is designed to grow with your business.

Cisco SG500-52P Features

  • IPv6: SG500-52P switches support the transition to next-generation networking and operating systems with IPv6 and have received the USGv6 and IPv6 Gold certification
  • Power efficiency: Low-power chipsets, fanless designs and other "green" features all help to reduce power consumption and enable quieter operation
  • Easy to Deploy and Use: Intuitive graphical interfaces, remote management capabilities, Textview command-line interface, Cisco Configuration Assistant and automated deployment tools make deployment and managing your SG500-52P easier
  • High reliability and resiliency: Stacking capabilities, dual images, in addition to advanced redundancy protocols offer resiliency and high reliability
  • True stacking: Multiple Cisco 500 Series switches can be configured and managed as a stack in a single unit, with a single IP address for easier management and configuration
  • Security: By using access control lists (ACLs), guest virtual LANs (VLANs), encrypted management data, IEEE 802.1X port security and other advanced network defense mechanisms features, your network is safer
  • Advanced IP telephony support: Cisco 500 Series switches automatically configure your connected IP phones with the right VLAN and quality of service (QoS) parameters to prioritize voice traffic
  • Power over Ethernet Plus (PoE+): Supports the PoE+ standard, which provides up to 30 watts per port to power wireless access points, video cameras, IP phones and more
  • Traffic management: The Cisco SG500-52P supports static Layer 3 routing capabilities
  • Peace of mind: Cisco switches have been rigorously tested to ensure they deliver the reliability customers expect from Cisco and to effortlessly integrate with other Cisco voice, video, security and networking products

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Cisco SG500-52P 52-Port PoE Gigabit Managed Switch
  • Power Cord
  • Mounting Hardware
  • Serial Cable
  • CD-ROM with User Documentation (PDF)
  • Quick Start Guide
  • Cisco Warranty
