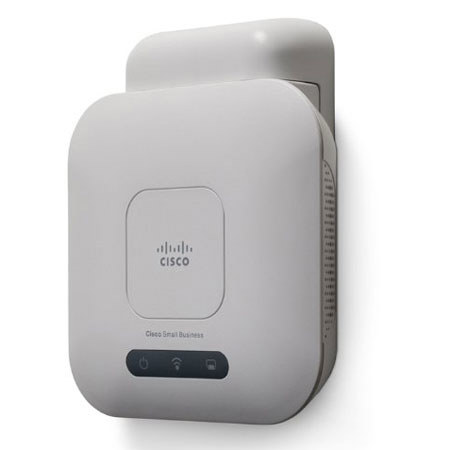

Cisco WAP121-A-K9 Wireless-N Access Point with Single Point Setup

SKU: CIWAP121AK9

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Cisco WAP121 Specifications

  • Standards

    IEEE 802.11n, 802.11g, 802.11b, 802.3af, 802.3u, 802.1X (security authentication), 802.1Q (VLAN), 802.1D (Spanning Tree), 802.11i (WPA2 security), 802.11e (wireless QoS), IPv4 (RFC 791), IPv6 (RFC 2460)

  • Ports

    LAN Fast Ethernet auto sensing, DC jack
    10BASE-T/100BASE-TX Ethernet, 12V DC power with support for 802.3af PoE

  • Switch

    Power button (on/off)

  • Buttons

    Power (on/off) push button; Reset button

  • Cabling type

    Category 5e or better

  • Antennas

    Internal antennas optimized for wall, ceiling, or desktop placement

  • LEDs

    Power, WLAN, LAN

  • Operating system

    Linux

  • Power supply

    External 12V 0.5A DC power jack (Energy Star 2.0 compliant with Efficiency Level 5) and 802.3af PoE

  • Lock slot

    Slot for Kensington lock

  • VLAN support

    Yes

  • Number of VLANs

    1 management VLAN plus 4 VLANs for SSID

  • 802.1X supplicant

    Yes

  • SSID to VLAN mapping

    Yes

  • Auto channel selection

    Yes

  • Spanning tree

    Yes

  • Load balancing

    Yes

  • IPv6

    Yes
    IPv6 host support
    IPv6 RADIUS, syslog, Network Time Protocol (NTP), etc.

  • Layer 2

    802.1Q-based VLANS, 4 active VLANS plus 1 management VLAN

  • WPA/WPA2/WEP

    Yes, including Enterprise authentication

  • Access control

    Yes, management access control list (ACL) plus MAC ACL

  • Secure management

    HTTPS

  • Wi-Fi Protected Setup (WPS)

    Yes (soft WPS, no hardware push button)

  • SSID broadcast

    Yes

  • Rogue access point detection

    Yes

  • Multiple mounting options

    Desktop installation; mounting bracket included for easy ceiling or wall mounting

  • Physical security lock

    Kensington lock slot

  • Quality of service (QoS)

    Wi-Fi Multimedia & Traffic Specification (WMM TSPEC)

  • Wireless throughput

    Up to 300 Mbps data rate (real world throughput will vary)

  • Recommended user support

    Up to 16 connected users, or 10 active users.

  • Web user interface

    Built-in web user interface for easy browser-based configuration (HTTP/HTTPS)

  • Management protocols

    Web browser, Simple Network Management Protocol (SNMP) v3, Bonjour

  • Remote management

    Yes

  • Event logging

    Local, remote syslog, email alerts

  • Network diagnostics

    Logging and packet capture

  • Web firmware upgrade

    Firmware upgradable through web browser, imported/exported configuration file

  • DHCP

    Dynamic Host Configuration Protocol: DHCP client

  • IPv6 host

    Yes

  • HTTP redirect

    Yes

  • Frequency

    Single-band 2.4GHz

  • Radio and modulation type

    Single radio, orthogonal frequency division multiplexing(OFDM)

  • WLAN

    802.11n

  • Operating channels

    1 to 13 (depending on country)
    Channels 1 through 11 (FCC)
    Channels 1 through 13 (ETSI)

  • Wireless isolation

    Wireless isolation between clients

  • External antennas

    No

  • Internal antennas

    Internal fixed PIFA antennas

  • Antenna gain in dBi

    2dBi each antenna

  • Transmitted output power

    802.11b@11Mbps: 17dBm
    802.11g@54Mbps: 13 dBm
    802.11n@HT20HT40, MCS15: 13dBm

  • Receiver sensitivity

    802.11b: 11Mbps@-86dBm
    802.11g: 54Mbps@-71dBm
    802.11n: 300Mbps@-64dBm

  • Wireless distribution system (WDS)

    Yes

  • Roaming

    Yes

  • Multiple SSIDs

    4

  • Wireless VLAN map

    Yes

  • WLAN security

    Yes

  • Wi-Fi Multimedia (WMM)

    Yes, with unscheduled automatic power save

  • Access point

    Access Point mode, WDS bridging, Client Bridge mode

  • Power

    12V,0.5ADC input and IEEE802.3af compliant PoE

  • Certifications

    FCC class B, CE, IC, Wi-Fi

  • Operating temperature

    0deg. to 40deg.C (32deg. to 104deg.F)

  • Storage temperature

    -20deg. to 70deg.C (-4deg. to 158deg.F)

  • Operating humidity

    10% to 85% noncondensing

  • Storage humidity

    5% to 90% noncondensing

  • Minimum Requirements

    802.11b, 802.11g, 802.11n wireless adapter with TCP/IP protocol installed per PC
    Switch/router with PoE support or PoE injector when used with PoE
    Web-based configuration: Java-enabled web browser

  • Dimensions (W x D x H)

    4.89 x 4.89 x 1.38" (124.21 x 124.21 x 35.1 mm)

  • Weight

    0.37 lbs (0.168 kg)

  • UPC Code

    882658434945

About Cisco WAP121

In an increasingly mobile workplace, providing secure, high-speed wireless connectivity to employees and guests is more important than ever. The Cisco WAP121 Wireless-N Access Point with PoE is an easy, affordable way to improve the performance and reach of your small business network with advanced 802.11n wireless technology. This flexible solution is ideal for connecting up to 10 employees and can scale to accommodate additional users and changing business needs.

Designed for performance-intensive applications, the Cisco WAP121 employs 802.11n wireless technology to deliver high throughput and extended range throughout your office. It features built-in quality-of-service (QoS) features that let you prioritize bandwidth-sensitive traffic, enabling the deployment of business-quality voice over IP (VoIP) and video applications.

The Cisco WAP121 is simple to set up and use, with intuitive wizard-based configuration to get you up and running in minutes. A sleek, compact design with flexible mounting options enables the access point to smoothly blend into any small business environment. Support for PoE makes the device easy to install without the need for separate power plugs or expensive new wiring.

To enhance reliability and safeguard sensitive business information, the Cisco WAP121 supports both Wired Equivalent Privacy (WEP) and Wi-Fi Protected Access (WPA2), encoding all your wireless transmissions with powerful encryption. 802.1X RADIUS authentication helps keep unauthorized users out.

For organizations that need to provide secure wireless access to employees, customers and partners, it also provides support for separate virtual networks, with granular configuration options that let you provide the appropriate level of access for different users. With the Cisco WAP121, you can extend highly secure business-class wireless networking anywhere in the office, with the reliability and flexibility to meet changing business needs.

Cisco WAP121 Features

  • Highly secure, high-speed 802.11n wireless networking delivers enhanced throughput and extended range for bandwidth-intensive applications
  • Wizard-based setup and configuration enables fast, simple deployment
  • Robust security, including WPA2, 802.1X with RADIUS secure authentication and rogue access point detection, protects sensitive business information
  • Support for PoE enables easy installation without expensive additional wiring
  • Client bridge mode lets you expand your network by wirelessly connecting to a second Ethernet network
  • Elegant, compact design with internal antennas and versatile mounting kit enables installation on a ceiling, wall, or desktop
  • Intelligent QoS prioritizes network traffic to help keep critical network applications running at top performance
  • Power-saving sleep mode and port control features help maximize energy efficiency
  • Highly secure guest access enables safe wireless connectivity for visitors
  • Support for IPv6 lets you deploy future networking applications and operating systems without costly upgrades

What's in the box:

  • Cisco WAP121 Wireless-N Access Point with Power over Ethernet
  • Ceiling/Wall Mounting Kit
  • User Guide on CD-ROM
  • Quick-Start Guide
  • Ethernet Network Cable
  • 12V / 0.5A Power Supply
  • Cisco Lifetime Limited Access Point and 1 Year Power Supply Warranty
