Peerless SP850-UNLP SmartMount Pull-out Pivot Wall Mount for 32-65" Flat Panel Screens, Supports up to 150lbs, Black

SKU: PEESP850UNLP MFR: SP850-UNLP
Earn VIP Reward Points

Key Features

  • Achieve the perfect viewing angle with 0, 5, or 10 degree lockable tilt adjustments.
  • This Peerless wall mount supports 32-65" flat panel screens, up to 150lbs for secure display.
  • Enjoy easy horizontal screen alignment during installation with +/-1 degree roll feature.
  • Pull-out pivot design extends your display 3.4" to 11.9" from the wall for flexible viewing.
  • The included locking swivel tab and key ensure your investment stays safe and secure.
  • Rely on the Peerless SmartMount's robust construction and 5-year warranty for lasting quality.
See More Product Details
Temporarily On Backorder?Request assistance or get notified

Final Sale - No Returns or Exchanges

Free Shipping

See Options

Qty
1

Need help? Ask our experts.

Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Peerless SP850-UNLP Specifications

  • Adjustments

    Tilt: 0, 5 or 10deg. lockable incremental tilt
    Roll: +/-1deg. roll for horizontal screen alignment during installation

  • Finish

    TGIC Powder Coat or Gloss

  • Load Capacity

    150lbs (68kg)

  • Dimensions (W x H x D)

    30.75" x 18" x 3.4" - 11.9" / 781 x 457.2 x 86.3 - 302.2 mm

  • Weight

    34lbs (15.4 kg)

  • UPC Code

    735029247319

About Peerless SP850-UNLP

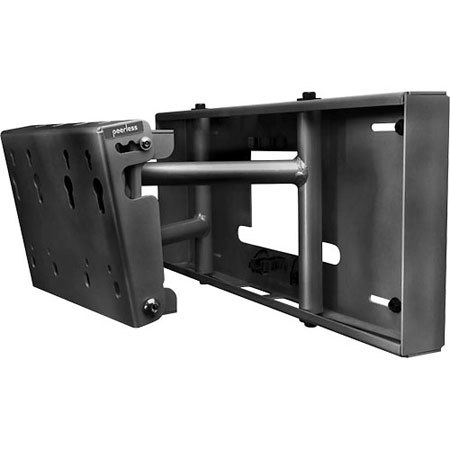

The Peerless SP850-UNLP SmartMount Pull-out Pivot Mount (Black) combines the best features of a wall mount and a pivot arm. In the closed position, the SP850 acts as a flat or tilting wall mount. At only 2.31" from the wall, its unique wall plate and built-in cable management neatly hide all components and cords.

Extended, the SP850's sturdy arm construction smoothly glides the display out 10.68" from the wall and allows the flat panel display to pivot up to 45 degrees. This feature not only enables the display to be positioned for an optimal viewing angle, but it also provides easy access to the back of the display for hassle-free maintenance. The SP850 is also ideal in applications where the display needs to be recessed into the wall, custom framed or aligned into a multi-display wall.

Peerless SP850-UNLP Features

  • Pull-out swivel with up to 45-degree rotation depending on screen size
  • Locking tab provides optional swivel restriction to one side
  • 3.4" deep in closed position, up to 11.9" fully extended
  • 0-degree, 5-degree or 10-degree lockable incremental tilt
  • +/-1 degree roll for horizontal screen alignment during installation
  • Built-in cord management
  • Lock Key installation tool secures arms for screen installation
  • Lock-out screw prevents unwanted extension
  • Mounts to 16" wood studs, concrete, cinder block

Warranty Information

This product has a limited warranty of 60 months for parts and lifetime for labor.

Key Features

  • Achieve the perfect viewing angle with 0, 5, or 10 degree lockable tilt adjustments.
  • This Peerless wall mount supports 32-65" flat panel screens, up to 150lbs for secure display.
  • Enjoy easy horizontal screen alignment during installation with +/-1 degree roll feature.
  • Pull-out pivot design extends your display 3.4" to 11.9" from the wall for flexible viewing.
  • The included locking swivel tab and key ensure your investment stays safe and secure.
  • Rely on the Peerless SmartMount's robust construction and 5-year warranty for lasting quality.

What's in the box:

  • Peerless SP850-UNLP SmartMount Pull-out Pivot Wall Mount
  • Lock Key Installation Tool
  • Locking Swivel Tab
  • Mounting and VESA 100 and 200x100 Screen Attachment Hardware
  • Peerless 5 Years Limited Warranty
