25% Off

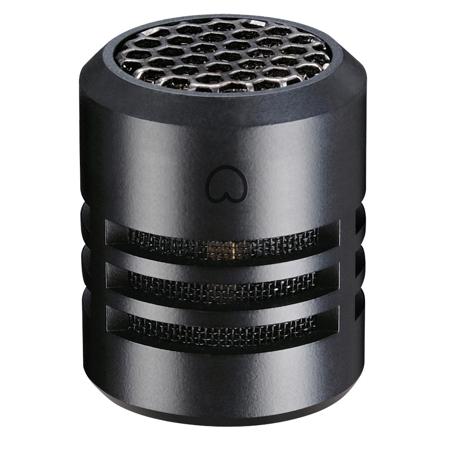

Lewitt Cardioid Condenser Capsule for LCT 340

SKU: LEAMSLC340CC MFR: LCT-340-CC
$149.00
$199.99
Save: $50.99 (25%)
Earn VIP Reward Points

Key Features

  • Achieve pristine sound with this Cardioid Condenser Capsule for your Lewitt LCT 340 mic.
  • Enhance vocal clarity using this high-sensitivity microphone capsule for studio recordings.
  • Enjoy wide compatibility; this condenser capsule is designed for Lewitt LCT 340 microphones.
  • Capture detailed audio with a wide 20-20000Hz frequency range using this microphone part.
  • Reduce unwanted noise; this capsule features excellent signal-to-noise ratio for clean audio.
  • Durable microphone component ensures long-lasting performance for all your recording needs.
See More Product Details
Overview
Compare
Compatibility
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

Lewitt LCT 340 Specifications

  • Acoustical operating principle

    Pressure & pressure gradient
    Transducers, externally polarized

  • Transducer (Dia.)

    0.8" / 2.03cm

  • Directional pattern

    Cardioid
    Omni

  • Frequency range

    20-20000Hz

  • Sensitivity

    9 mV / Pa (-41 dBV), cardioid
    8 mV / Pa (-42 dBV), omni

  • Signal / noise ratio

    79 dB-A

  • Equivalent noise level

    15 dB-A, cardioid (IEC 61672-1)
    16 dB-A, omni (IEC 61672-1)

  • Dynamic range of mic. Amp.

    124 dB-A

  • Max. SPL for 0.5 % THD

    139 dB, 0 dB pre-attenuation
    145 dB, 6 dB pre-attenuation
    151 dB, 12 dB pre-attenuation
    157 dB, 18 dB pre-attenuation

  • Pre-attenuation pad

    6 dB, 12 dB, 18 dB, switchable

  • Bass cut filter slope

    12 dB / octave at 40 Hz
    6 dB / octave at 150 Hz
    6 dB / octave at 300 Hz

  • Rated impedance

    < 150Ohms

  • Rated load impedance

    > 1000Ohms

  • Supply voltage

    48 V + / - 4 V (IEC 61938)

  • Current consumption

    6.6 mA (IEC 61938)

  • Connector

    Gold plated 3-pin XLR

  • Dimensions

    24Dia. x 160mm / 0.94Dia. x 6.30"

  • Weight

    200g / 7.05oz

  • UPC Code

    847986000309

Designed For Use With:

  • LCT 340 Reference Condensers

Need Help?

For any questions about compatibility with this product, call us at 800-223-2500 or you can email us any time.

Models
Lewitt Cardioid Condenser Capsule for LCT 340

SKU: LEAMSLC340CC

MFR: LCT-340-CC

$149.00

$199.99

Save:$50.99 (25%)

In Stock

Electro-Voice ND76-RC3 Wireless Head with ND76 Cardioid Capsule
$145.00

$164.00

Save:$19.00 (12%)

Ships from Manufacturer

Usually ships within 3-7 Days. Delivery is subject to availability.

Shure RPW112 Wireless SM58 Cartridge, Housing Assembly and Grille
$144.00

$202.00

Save:$58.00 (29%)

In Stock

CompatibilityLCT 340 Reference CondensersUniversal 3-Ring/3-Pin-
Accessory TypeCartridge/CapsuleCartridge/CapsuleCartridge/Capsule

About Lewitt LCT 340

Why settle for less when you can have the best The Lewitt Cardioid Condenser Capsule for LCT 340 is a high-quality, durable, and reliable choice for professionals seeking optimal audio performance. This innovative product is specifically designed for seamless compatibility with the LCT 340 reference condensers, ensuring that your sound quality is second to none.

Unlike other capsules, this Cardioid Condenser Capsule offers the flexibility of quick and easy pattern switching, eliminating the need to change microphones. This feature makes it a versatile tool in any audio recording or broadcasting scenario.

Crafted by Lewitt, a brand synonymous with superior audio equipment, this Cardioid Condenser Capsule is a testament to their commitment to delivering professional-grade products. Enhance your audio experience with the Lewitt Cardioid Condenser Capsule for LCT 340 - a perfect blend of innovation, reliability, and high-quality sound.

Lewitt LCT 340 Features

  • 0.8-inch small-diaphragm capsule with ultra-thin externally biased, gold-layered low mass diaphragm for ultra-precise and neutral sound reproduction
  • Flat frequency response for natural, authentic sound
  • Interchangeable capsules for cardioid and omnidirectional pattern selection ensuring maximum flexibility and an undisturbed workflow
  • Wide dynamic range of 124 dB and low self-noise level of 15 dB for ear-catching realism and distortion-free sonic depth
  • 4-position switchable pre-attenuation pad (0 dB, 6 dB, 12 dB and 18 dB) for handling extremely high sound pressure levels and 4-position high-pass filter
  • Illuminated user interface for quick and easy handling even in dark environments
  • Rugged black die-cast full-metal body ensures long life
  • Hexagonal ruthenium-galvanized steel mesh grille to prevent wear and abuse
  • Immune to electromagnetic interference thanks to transformer less preamplifier circuitry
  • Corrosion-resistant gold-plated 3-pin XLR output connector
  • Comes in a cardboard box with foam layers; includes DTP 40 Mts shock mount, LCT 40 Ws windshield, DTP 40 Lb leather bag and an optional omnidirectional true condenser transduce
  • Applications: Overhead miking // drums, percussion, Ensembles // choral or orchestral, Acoustic instruments // piano, guitar, drums, percussion, strings, Wind instruments // brass and woodwinds, Demanding live and studio applications

Key Features

  • Achieve pristine sound with this Cardioid Condenser Capsule for your Lewitt LCT 340 mic.
  • Enhance vocal clarity using this high-sensitivity microphone capsule for studio recordings.
  • Enjoy wide compatibility; this condenser capsule is designed for Lewitt LCT 340 microphones.
  • Capture detailed audio with a wide 20-20000Hz frequency range using this microphone part.
  • Reduce unwanted noise; this capsule features excellent signal-to-noise ratio for clean audio.
  • Durable microphone component ensures long-lasting performance for all your recording needs.

What's in the box:

  • Cardioid Condenser Capsule
  • Lewittt 2 Year Warranty
