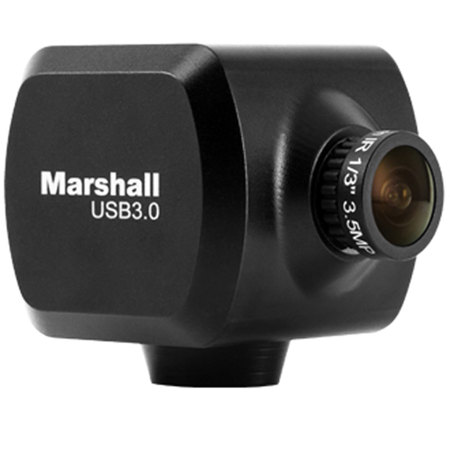

Used Marshall Electronics CV503-U3 2.5MP USB3.0 Miniature POV HD Camera with CVM-5 Mount and Interchangeable Lenses

SKU: US1854955 MFR: CV503-U3
$152.00
Earn VIP Reward Points

What`s in the box:

  • CV503-U3 2.5MP USB3.0 Miniature POV HD Camera
  • CVM-5 Monitor/Stand Mount
  • 3.0 USB Cable
See more

Key Features

  • Capture pristine HD video with this Marshall camera, perfect for streaming and recording.
  • Enjoy exceptional low light performance, ensuring clear visuals in any environment.
  • This easy to use POV camera offers simple USB connectivity for quick setup and operation.
  • Achieve stable shots with built-in stabilization, ideal for dynamic content creation.
  • Durable build ensures this miniature HD camera withstands rigorous daily use.
  • Customize your view with interchangeable M12 lenses for various focal length options.
See More Product Details

INCLUDES FREE WARRANTY

  • This used item comes with a free 180-day warranty. ?
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Marshall Electronics CV503-U3 Specifications

Sensor
  • Image Sensor

    1/2.8" Progressive CMOS (Approx. 2.5 Megapixel)

  • Scanning System

    16:9 Progressive

  • Sync. System

    Internal

  • Effective Pixel

    1920(H) x 1080(V)

  • Min. Illumination

    0.2 Lux (Day)

  • USB 3.0

    Avalilable resolutions and frame-rates:
    1920x1080p @ 60/59.94/50/30/29.97/25/24/23.98fps
    1920x1080i @ 60/59.94/50fps
    1280x720p @ 60/59.94/50/30/29.97/25/24/23.98fps

  • Lens

    2.8mm (90 Degree AOV) standard with ability to change M12 lens to custom Focal Length

  • Brightness

    0 - 20 (Default 10)

  • Contrast

    0 - 64 (Default 32)

  • Hue

    - 128 - 127 (Default 0)

  • Saturation

    0 - 20 (Default 15)

  • Sharpness

    0 - 20 (Default 10)

  • Gamma

    1 - 11 (Default 6)

  • White Balance

    Auto, 0 - 255 (Default 128 and Auto)

  • Backlight Compensation

    0 - 4 (Default 0)

  • Gain

    0 - 12 (Default 0)

  • Power Line Frequency

    50Hz/60Hz (Anti Flicker)

Camera Control

Jump to...
  • Zoom (Digital)

    0 - 255 (Default 0)

  • Exposure

    Auto, -13 - 3 (Default -7 and Auto)

  • Aperture (Iris)

    Auto, 0 - 170 (Default 100 and Auto)

  • Low Light Compensation

    On/Off

Hardware Requirements

Jump to...
  • CPU

    i3 or higher

  • GPU

    Core speed of 1500Mhz or higher

  • RAM

    4GB or higher

Operating System Requirements

Jump to...
  • OS

    Windows 7 or higher

  • MacOS

    X 10.8 or higher

General

Jump to...
  • Operation Temperature

    -10 Degree C - 50 Degree C

  • Power Input

    Over USB

  • Dimensions (W x H x D)

    1.73 x 1.83 x 1.89" (44 x 46.5 x 47.95mm) (Without lens)

  • Weight

    0.23 lbs (104.3g) (without lens) (Approx.)
    0.24 lbs (108g) (with lens) (Approx.)

About Marshall Electronics CV503-U3 2.5MP USB3.0 Miniature POV HD Camera with CVM-5 Mount and Interchangeable Lenses

Where versatility meets high-quality performance, the Marshall CV503-U3 2.5MP USB3.0 Miniature POV HD Camera stands out with its interchangeable lenses and universal application. This compact yet durable camera is designed for a wide range of uses, from professional broadcast production and sportscast to surveillance and remote monitoring.

Engineered with the same sensor and processors as other esteemed Marshall Broadcast ProAV cameras such as the CV503, CV506, CV566, CV344, and CV346, the CV503-U3 delivers broadcast-quality footage. It offers adjustable features like White Balance, Black Levels, Exposure, Gain, and Gamma, ensuring optimal control over your video quality.

The CV503-U3 comes equipped with a wide-angle 2.8mm lens, producing a 90-degree horizontal angle-of-view. This lens flexibility allows for a custom angle-of-view (AOV) to suit your personal huddle space, streaming studio, workspace, live event venue, or collaboration area. With the option of interchangeable lenses, you have unprecedented customization and personal design control.

This easy-to-use camera is software agnostic, compatible with any video conference, streaming, video chat, or computer video capture soft codecs available today. It uses capture device drivers already present on your laptop or computer, eliminating the need for additional drivers.

Built with the same robust body as other Marshall miniature POV cameras, the CV503-U3 ensures durability and security. It features rear connector protection wings on the back panel and ships with a locking six-foot USB3.0 cable to prevent accidental disconnection during video streaming or collaboration.

Whether you're into teleconferencing, web conferences, studio collaboration, video meetings, unified communications and collaboration (UCC), podcasting, web streaming, or gaming, the Marshall CV503-U3 2.5MP USB3.0 Miniature POV HD Camera is a reliable choice for capturing high-resolution, detailed footage.

Marshall Electronics CV503-U3 2.5MP USB3.0 Miniature POV HD Camera with CVM-5 Mount and Interchangeable Lenses Features

  • Ultra-wide 90-degree Angle-of-View (2.8mm) M12 lens comes standard
  • Interchangeable lenses for custom-designed studios, huddle spaces or meeting rooms
  • Locking 2-meter (6 1/2 foot) USB 3.0 cable with thumb-screw lock feature
  • Powered through USB cable with easy plug-and-play connectivity for Mac or PC with no driver downloads required (software agnostic)
  • UVC 1.5 (USB Video Class) compliant for easy video adjustments via common computer, UCC, and teleconference software platforms
  • Self-adaptive resolution and framerate to adjust to computer processing power and bandwidth available for reliable operation
  • Durable design with smooth finish for professional installations requiring custom design and reliable operation
  • 2.5MP 1/2.8" Progressive scan sensor with 4:2:2 (YCbCr) color space for clear vibrant color images
  • Universal 1/4"-20 mount for limitless custom design mounting options with horizontal, vertical, and 90-degree flip
