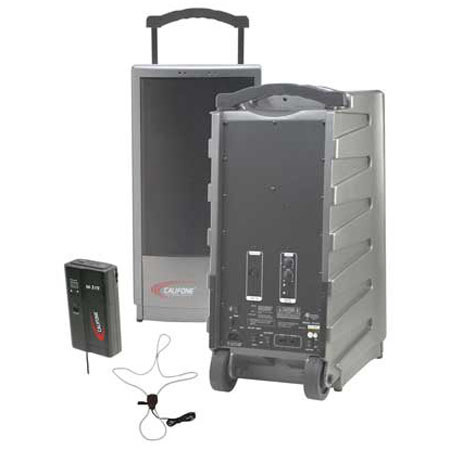

Califone PA919PS-F PowerPro Active Wireless Companion Speaker with Lapel Mic
See all Califone items

Califone PA919PS-F PowerPro Active Wireless Companion Speaker with Lapel Mic, 90W RMS, 1/4" Output Jacks

SKU: CLNPA919PSF

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Mary Lee A : How many wireless mics can I connect to this speaker and transmitter? Can I connect mics that are not califone brand?GREG H : The wireless mikes connect to the 319 belt pack. You can have multiple Belgians transmitting at the same frequency.

Reviews about this item

Review Summary

Califone PA919PS-F Specifications

  • Speaker

    Bass reflex design tuned to 50 Hz

  • Speaker: Woofer

    10" diameter, 2" diameter voice coil, 40 ounce magnet most efficient in its class, moisture resistant cone, 120 Watt capacity

  • Speaker: Horn Tweeter

    4.25" square, 12 ounce magnet, 1" diameter voice coil, 30 Watts RMS capacity, phenolic diaphragm, moisture resistant

  • Speaker: Crossover Network

    3kHz at 12dB/Octave, aircoreinductors, Mylar/Low DF capacitors, fiberglass P.C.B. circuit

  • Speaker: Frequency Response

    45 Hz to 18 kHz

  • Speaker: Amplifier

    AC - 90 Watts RMS, DC - 76 Watts RMS

  • Speaker: Sound Pressure Level

    94 dB, 1 Watt at 1 Meter

  • Speaker: Power Sources

    100-240 volt AC universal power supply, two 12 volt (sealed and maintenance-free) lead acid batteries included

  • Wireless System: Receivers

    Two 16-channel UHF wireless, 904-925MHz, PLL, internal antenna, on/off volume control, Audio & Radio Frequency receiving LED, 150' reception range from mics (handheld wireless mic or beltpack transmitter with three types of handsfree microphones sold separately)

  • Wireless System: Audio Line

    Line level capable buss to connect 2 wired units for greater coverage with volume control for remote speakers

  • UHF Receiver: Carrier Frequencies

    904 - 925 MHz (16 channel)

  • UHF Receiver: Channels

    #1 904.85, #2 905.75, #3 906.85, #4 908.15, #5 909.65, #6 911.35, #7 913.45, #8 914.85, #9 915.75, #10 916.85, #11 918.15, #12 919.65, #13 921.35, #14 923.25, #15 924.15, #16 925.3

  • Mixer Panel: Voice Music Switch

    Adds emphasis in voice frequency range for longer range projections

  • Mixer Panel: Voice Priority Switch

    Mic override of background music (ducking)

  • Mixer Panel: Speaker Mute

    Mutes main speaker + connected speakers (wired/wireless)

  • Mixer Panel: Speaker Out

    Switched 1/4" jack disengages main speaker, unswitched 1/4" jack divides power between main speaker and passive companion speakers

  • Mixer Panel: Audio Controls

    Separate Treble & Bass Controls, Digital Master Volume Control

  • Rear Panel

    Angled for easier accessibility and viewing

  • Enclosure

    Fiberglass reinforced polypropylene

  • Grille

    1.5mm steel with powder-coated finish

  • Battery Compartment

    Front-accessible with removal of two service screws

  • Tripod Mount

    Recessed, molded at the optimum center of gravity

  • Transmitter Type

    Dynamic

  • Transmitter Pattern

    Unidirectional

  • Transmitter Carrier Frequencies

    904 - 925 MHz (16 channel)

  • Transmitter Channels

    #1 904.85, #2 905.75, #3 906.85, #4 908.15, #5 909.65, #6 911.35, #7 913.45, #8 914.85, #9 915.75, #10 916.85, #11 918.15, #12 919.65, #13 921.35, #14 923.25, #15 924.15, #16 925.35

  • Transmitter Frequency Response

    90 Hz - 17kHz

  • Transmitter Frequency Stability

    +/-5kHz

  • Transmitter Oscillator

    PLL Synthesized

  • Transmitter Modulation

    FM (frequency modulation)

  • Transmitter Transmission Power

    5dBm / 10dBm

  • Transmitter Spurious Rejection

    55dB

  • Transmitter Distortion

    > 1% THD

  • Transmitter Dynamic Range

    90 dB

  • Transmitter Range

    Up to 150'

  • Transmitter Current Consumption

    42 mA

  • Transmitter Input Jack

    3.5mm

  • Transmitter Signal / Noise

    90dB

  • Transmitter AF Modulation Depth

    20K(AF=1KHz 50MV)

  • Transmitter Volume Code Modulate Depth

    3.5K+/-0.5K

  • Transmitter AF Frequency Response

    80Hz-18kHz (+/-3dB)

  • Transmitter Battery

    9V battery

  • Dimensions

    Transmitter: 4.75x2.5x1.25" / 12.06x6.35x3.17 cm
    24x14x14" / 60.96x35.56x35.56 cm

  • Weight

    47 lbs / 21.31 kg
    Transmitter: 10 oz / 283.49 g with battery

  • UPC Code

    610356830109

About Califone PA919PS-F

The Califone PA919PS-F is a powered companion speaker, ideal for wireless support of a PowerPro master speaker. It can also be used on its own as a PA speaker and can even support a pair of non-powered speakers. The speaker has a large 10" woofer with a 40 ounce magnet, along with a compression tweeter to provide high-quality audio. A 90W RMS amplifier allows the speaker to address crowds of up to 1000 people when used alone, or up to 2000 people when used with a master speaker.

The PA919PS-F has a built-in 16-channel wireless microphone receiver and includes a lapel microphone with a wireless beltpack transmitter, letting you address your audience without the need for extra cables or equipment. It also has a line-level XLR input for connecting a mixer or other sound source. Standard 1/4" outputs let you connect non-powered support speakers.

Other features include a digital master volume control and individual bass and treble adjustment knobs for adjusting the volume and tone to meet the needs of your application and environment. The speaker can operate on AC or DC power and even operates while recharging. It has an integrated handle and heavy-duty wheels for easy transportation.

Califone PA919PS-F Features

  • Can be used as a stand-alone speaker, a wireless companion, or support a pair of non-powered speakers
  • Large 10" woofer with a 40 ounce magnet, plus a compression tweeter to provide high-quality audio with a wide frequency response
  • 90W RMS amplifier allows the speaker to address crowds of up to 1000 people when used alone, or up to 2000 people when used with a master speaker
  • Built-in 16-channel wireless microphone receiver lets you use the included lapel mic and wireless beltpack transmitter without the need for extra cables or equipment
  • Line-level XLR input for connecting a mixer or other sound source
  • Pair of standard 1/4" outputs lets you connect non-powered support speakers
  • Digital master volume control
  • Individual bass and treble knobs let you adjust the tone to meet the specific needs of your application and environment
  • Operates on AC or DC power and can even be used while recharging
  • Integrated handle and heavy-duty wheels for easy transportation

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Can be used as a stand-alone speaker or a wireless companion
  • 90ws RMS
  • Built-in 16-channel wireless microphone receiver
  • Line-level XLR input for connecting a mixer or other sound source
  • Pair of standard 1/4 outputs lets you connect non-powered support speakers
  • Digital master volume control

What's in the box:

  • Califone PA919PS-F PowerPro Active Wireless Companion Speaker
  • Power Cable
  • 2 x 12VDC Sealed Lead Acid Batteries
  • LM319 Lapel Microphone
  • M319 Wireless Beltpack Transmitter
  • Califone 6 Years and 1 Year Transmitter Warranty
