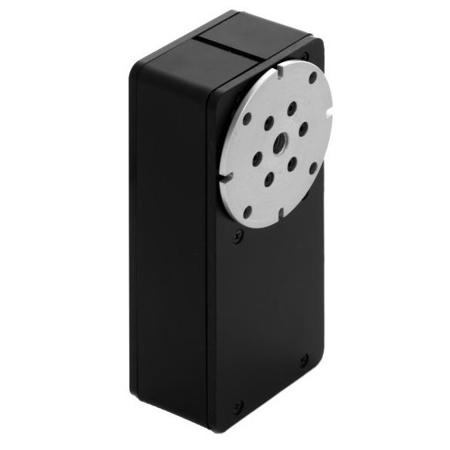

Clauss HPD-24-R Precision High Positioning Drive 24'000 Steps w/ Reference Point
See all Clauss items

Clauss HPD-24-R Precision High Positioning Drive 24'000 Steps with Reference Point

SKU: CLPHPD24000 MFR: 2130500100004
Be the first to review this itemAsk a Question
$1,347.50
OR
$113/mo suggested payments with 12‑month special financing. Learn how.
Earn VIP Reward Points

Key Features

  • Achieve precise forensic photography with 24,000 steps for detailed panoramic images.
  • Ensure reliability in critical public safety applications with robust Clauss engineering.
  • Utilize the reference point feature for accurate, repeatable positioning in forensics.
  • Control speed & acceleration, essential for capturing clear forensic evidence photos.
  • Benefit from a durable design, ideal for demanding forensic photography environments.
  • Enjoy Clauss' 2-year warranty, ensuring your public safety equipment is protected.
See More Product Details
Special Order?Estimated to Ship: 09/05/2025
Free Shipping

See Options

1
Add to ListGet Sale Alert

Protect your gear with Adorama Protect.* Learn more

1 Year

$99.99

2 Year

$149.99

3 Year

$199.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Browse our FAQ

See Terms & Conditions

Clauss HPD-24-R Specifications

  • Step resolution

    54" (0.015 Degree )

  • Steps per Round

    24'000

  • Torque

    >4'000 mNm

  • Max. stepping frequency

    2400½ /s

  • Rotational-speed range

    0 -½ 6 U/min

  • Acceleration

    Constant, controllable

  • Stewing range

    Unlimited

  • Direction

    Arbitrary

  • Reference point

    Yes, zero point sensor

  • Interface

    RS-485 over D-SUB 9 pol.

  • Controlling protocol

    RODEONmodulo

  • Assembly fitting (rotor and stator)

    3/8"½ centric in line with rotation axis

  • Dimensions

    5.7 x 2.59 x 1.77" (146 x 66 x 45mm)

  • Weight

    29.9 oz (850g)

About Clauss HPD-24-R

Become a master of precision with the HPD-24-R Precision High Positioning Drive, a cost-effective and efficient solution for all your rotational positioning tasks. This high-performance drive is ideally suited as an actuator for fine-tuning machine settings, or as a reliable, angle-preserving drive unit for applications such as rotary indexing tables, replacing the need for manual operation.

Designed with compact dimensions, the HPD-24-R is perfect for applications in non-hazardous areas, especially those involving small, hard-to-reach spaces. The drive's motion is powered by a step motor, which is transmitted through a low-backlash gear, ensuring smooth and precise movements every time.

The HPD-24-R Precision High Positioning Drive stands out with its integrated electronics and RS485 connection, making the drive easily addressable and controllable, with a variety of parameter options to suit your specific needs.

Further enhancing its versatility, the HPD-24-R comes in two gear ratios, and is also available in versions equipped with an electromagnetic brake and/or a reference sensor for absolute positioning. This ensures you have the right tool for every task, making the HPD-24-R Precision High Positioning Drive a valuable addition to any precision-focused operation.

Clauss HPD-24-R Features

  • Robust aluminum gearbox in a compact
  • Space-saving and flat design
  • Dust and water protection
  • Overload protection for blockades
  • High-quality smooth running ball bearings for all gear trains
  • Ball bearing with large hoop for the outer shaft
  • Programmable, Constant angular acceleration
  • Low-backlash steel bearings
  • 3/8" Thread

Join VIP PRO

2 Day Delivery on thousands of items!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Achieve precise forensic photography with 24,000 steps for detailed panoramic images.
  • Ensure reliability in critical public safety applications with robust Clauss engineering.
  • Utilize the reference point feature for accurate, repeatable positioning in forensics.
  • Control speed & acceleration, essential for capturing clear forensic evidence photos.
  • Benefit from a durable design, ideal for demanding forensic photography environments.
  • Enjoy Clauss' 2-year warranty, ensuring your public safety equipment is protected.

What's in the box:

  • HPD-24-R Precision High Positioning Drive
  • Clauss 2 Year Limited Warranty
