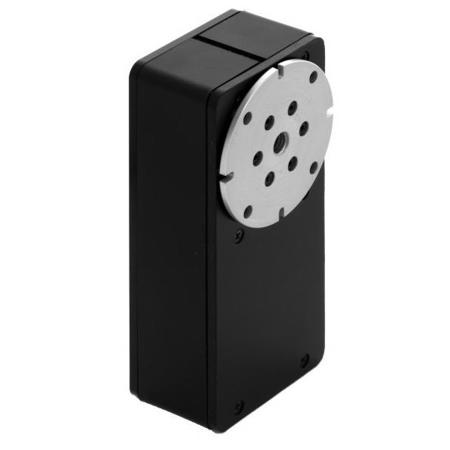

Clauss HPD-24-R Precision High Positioning Drive 72'000 Steps with Reference Point

SKU: CLPHPD72000 MFR: 2130500100028
Earn VIP Reward Points

Key Features

  • Achieve precise forensic photography with 72,000 steps for detailed image capture.
  • Ensure reliable data security using the RS-485 interface for protected transmissions.
  • Utilize the zero point sensor for accurate reference points in public safety applications.
  • Benefit from unlimited stewing range, ideal for comprehensive crime scene documentation.
  • Control acceleration for smooth adjustments, crucial for forensic image stability.
  • Durable Clauss drive offers consistent performance, even in challenging environments.
See More Product Details
Special Order?Estimated to Ship: 08/16/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$149.99

2 Year

$229.99

3 Year

$279.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Clauss HPD-24-R Specifications

  • Step resolution

    18" (0.005 Degree )

  • Steps per Round

    72'000

  • Torque

    >11'000 mNm

  • Max. stepping frequency

    2400½ /s

  • Rotational-speed range

    0 - 2 U/min

  • Acceleration

    Constant, controllable

  • Stewing range

    Unlimited

  • Direction

    Arbitrary

  • Reference point

    Yes, zero point sensor

  • Interface

    RS-485 over D-SUB 9 pol.

  • Controlling protocol

    RODEONmodulo

  • Assembly fitting (rotor and stator)

    3/8"½ centric in line with rotation axis

  • Dimensions

    5.7 x 2.59 x 1.77" (146 x 66 x 45mm)

  • Weight

    33.5 oz (950g)

About Clauss HPD-24-R

Enhance your rotational positioning tasks with the HPD-24-R Precision High Positioning Drive, a cost-effective and efficient solution designed for precision and reliability. This high-performance drive is particularly adept as an actuator for fine-tuning machine settings, serving as an angle-preserving drive unit in applications such as rotary indexing tables, replacing the need for manual operation.

Its compact design makes it an ideal choice for applications in small, hard-to-reach spaces, extending its versatility beyond non-hazardous areas. The HPD-24-R Precision Drive operates on a step motor, which generates motion transmitted by a low-backlash gear, ensuring smooth and precise operation.

Integrated with advanced electronics and an RS485 connection, this high positioning drive offers addressability and controllability with a range of parameter options, providing you with the flexibility to customize your operations.

The HPD-24-R Precision Drive comes in two gear ratios, catering to different operational needs. Additionally, it is available in versions equipped with an electromagnetic brake and/or a reference sensor. The electromagnetic brake enhances safety by preventing unintentional movement, while the reference sensor enables absolute positioning, ensuring accuracy and precision in every task.

Incorporate the HPD-24-R Precision High Positioning Drive into your operations for a seamless, efficient, and precise rotational positioning experience.

Clauss HPD-24-R Features

  • Robust aluminum gearbox in a compact
  • Space-saving and flat design
  • Dust and water protection
  • Overload protection for blockades
  • High-quality smooth running ball bearings for all gear trains
  • Ball bearing with large hoop for the outer shaft
  • Programmable, Constant angular acceleration
  • Low-backlash steel bearings
  • 3/8" Thread

Key Features

  • Achieve precise forensic photography with 72,000 steps for detailed image capture.
  • Ensure reliable data security using the RS-485 interface for protected transmissions.
  • Utilize the zero point sensor for accurate reference points in public safety applications.
  • Benefit from unlimited stewing range, ideal for comprehensive crime scene documentation.
  • Control acceleration for smooth adjustments, crucial for forensic image stability.
  • Durable Clauss drive offers consistent performance, even in challenging environments.

What's in the box:

  • HPD-24-R Precision High Positioning Drive
  • Clauss 2 Year Limited Warranty
