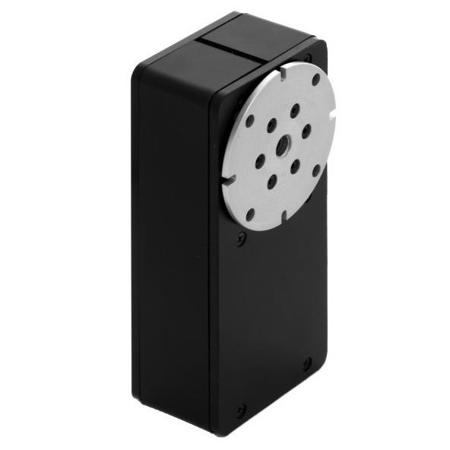

Clauss HPD-24-RB Precision High Positioning Drive 24'000 Steps with Magnetic Brake and Reference Point

SKU: CLPPD24000MB MFR: 2130500100097
Earn VIP Reward Points

Key Features

  • Achieve precise forensic photography with 24,000 steps for detailed panoramic images.
  • High torque ensures smooth, reliable operation for accurate public safety documentation.
  • Capture evidence swiftly; max stepping frequency at 2400 steps/second enhances forensics work.
  • Control acceleration for consistent image capture in diverse forensic photography scenarios.
  • Unlimited stewing range allows comprehensive scene documentation for public safety needs.
  • RS-485 interface ensures secure, reliable data transfer in critical forensic applications.
See More Product Details
Special Order?Estimated to Ship: 08/17/2025
Free Shipping

See Options

1

Protect your gear with Adorama Protect.* Learn more

1 Year

$399.99

2 Year

$529.99

3 Year

$699.99

Available to U.S. customers only.

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

Clauss HPD-24-RB Specifications

  • Step resolution

    54" (0.015 Degree )

  • Steps per Round

    24'000

  • Torque

    >4'000 mNm

  • Max. stepping frequency

    2400½ /s

  • Rotational-speed range

    0 -½ 6 U/min

  • Acceleration

    Constant, controllable

  • Stewing range

    Unlimited

  • Direction

    Arbitrary

  • Reference point

    No

  • Interface

    RS-485 over D-SUB 9 pol.

  • Controlling protocol

    RODEONmodulo

  • Assembly fitting (rotor and stator)

    3/8"½ centric in line with rotation axis

  • Dimensions

    5.7 x 2.5 x 2.5" (146½ x 66½ x½ 64mm)

  • Weight

    2.35 lbs (1.07kg)

About Clauss HPD-24-RB

From precision automation tasks to intricate machine adjustments, the HPD-24-RB Precision High Positioning Drive is an exemplary choice for professionals seeking a high-resolution rotational positioning solution. Boasting an impressive 24,000 steps, this drive offers unparalleled precision for applications that demand exact movement control.

Engineered for efficiency and accuracy, the HPD-24-RB is particularly adept as an actuator for machine setting modifications or as a steadfast angle-preserving drive unit. Its applications shine in scenarios such as rotary indexing tables, where manual operation can be replaced with this automated precision tool. The compact design of the HPD-24-RB ensures it fits seamlessly into small or challenging-to-reach areas, making it a versatile addition to any setup, especially outside of hazardous environments.

The core of this precision drive is a sophisticated step motor, which delivers motion through a low-backlash gear, ensuring minimal play and maximum fidelity in movement. This is critical for applications where even the slightest deviation can have significant impacts.

To complement its mechanical prowess, the HPD-24-RB features integrated electronics, enabling users to address and control the drive via an RS485 connection. This connectivity allows for a wide range of parameter adjustments, providing users with the flexibility to tailor the drive's performance to their specific needs.

Available in two gear ratios, the HPD-24-RB can be customized to match the speed and torque requirements of various applications. Additionally, versions equipped with an electromagnetic brake offer enhanced control, particularly in applications where the drive must maintain its position after power loss or during emergency stops.

For tasks that require absolute positioning, the HPD-24-RB can be outfitted with a reference sensor. This sensor ensures that the drive always knows its position relative to a fixed reference point, which is crucial for applications that cannot tolerate any ambiguity in positioning.

In summary, the HPD-24-RB Precision High Positioning Drive is a sophisticated, adaptable solution for those who require exact rotational control with the added benefits of compact size, customizable options, and advanced connectivity. Whether it's for fine-tuning machinery or automating complex movements, this drive stands as a reliable and precise component in any high-tech setup.

Clauss HPD-24-RB Features

  • Robust aluminum gearbox in a compact
  • Space-saving and flat design
  • Dust and water protection
  • Overload protection for blockades
  • High-quality smooth running ball bearings for all gear trains
  • Ball bearing with large hoop for the outer shaft
  • Programmable, Constant angular acceleration
  • Low-backlash steel bearings
  • 3/8" Thread

Key Features

  • Achieve precise forensic photography with 24,000 steps for detailed panoramic images.
  • High torque ensures smooth, reliable operation for accurate public safety documentation.
  • Capture evidence swiftly; max stepping frequency at 2400 steps/second enhances forensics work.
  • Control acceleration for consistent image capture in diverse forensic photography scenarios.
  • Unlimited stewing range allows comprehensive scene documentation for public safety needs.
  • RS-485 interface ensures secure, reliable data transfer in critical forensic applications.

What's in the box:

  • HPD-24-RB Precision High Positioning Drive
  • Clauss 2 Year Limited Warranty
