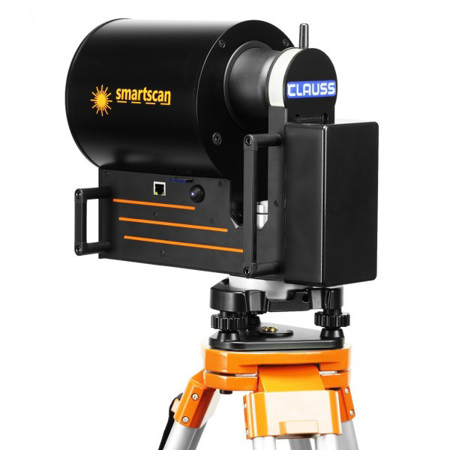

Clauss RODEONsmartscan 3D Laser Scanner

SKU: CLSRSMRTSCAN MFR: 4260007481509
Earn VIP Reward Points

Key Features

  • Capture precise forensic photography with the Clauss 3D laser scanner's 0.015° resolution.
  • Ensure data security with SD card storage, ideal for sensitive public-safety applications.
  • Achieve reliable 3D scans in diverse conditions; IP40 rated for water & dust protection.
  • This panorama laser scanner boasts a 250m range, perfect for detailed crime scene mapping.
  • Enjoy ease of use with smartphone/tablet control (not included) for efficient data capture.
  • The Clauss RODEONsmartscan ensures image quality with +/-15 mm accuracy at 90% remission.
See More Product Details
Special Order?Estimated to Ship: 10/15/2025
Free Shipping

See Options

1

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Clauss RODEONsmartscan Specifications

  • Type of Device

    Panorama Laser Scanner

  • Controlling Device

    Smartphone, Notebook, Tablet-PC (not included in the scope of delivery)

  • Data Interface

    WLAN (802.11 b/g/n), LAN

  • Storage of Data

    SD-Card

  • Software Included

    Software RODEON processor (for automated scan data Batch Processing)

  • Laser Class

    1 (eye-safe, EN 60825-1)

  • Wave Length

    905nm

  • Beam Divergence

    5.0 mrad

  • Measuring Rate

    14,400 points/second

  • Measuring Range

    250m (820.20') (90 % Remission 0.5m - 180m (1.64' - 590.54') , 10 % Remission 0.5m - 55m (1.64 -180.44')

  • Ranging Error

    +/-15 mm at 90 % Remission , +/-25 mm at 10 % Remission

  • Ranging Noise (1 Sigma)

    15mm at 90% Remission , 25mm at 20% Remission

  • Field of View horizontal

    360 deg.

  • Field of View vertical

    330 deg.

  • Resolution horizontal

    0.015deg,

  • Resolution vertical

    0.125 deg.

  • Humidity

    Max. 85% rel., not condensing

  • Water and Dust Protection

    IP40 (IEC 60529)

  • Battery: Technology

    Li-Ion

  • Battery: Nominal Voltage

    22V

  • Battery: Rating

    5.2 Ah

  • Battery: Runtime

    Approx. 5 hours

  • Charger: Operating Voltage

    100 - 240 V / 50 - 60 Hz

  • Charger: Loading Time

    Approx. 2 hours

  • Storage Temperature

    Scanner: -20 to 65 deg. C (-4 to 149 deg. F)
    Battery: -20 to 60 deg. C (-4 to 140 deg. F)
    Charger: -20 to 60 deg. C (-4 to 140 deg. F)

  • Working Temperature

    Scanner: 0 to 40 deg. C (32 to 104 deg. F)
    Battery: -20 to 60 deg. C (-4 to 140 deg. F)
    Charger: 0 to 40 deg. C (32 to 104 deg. F)

  • Dimensions

    Scanner: 240 x 250 x 160mm (9.45 x 9.84 x 6.30")
    Battery: 55 x 80 x 150mm (2.17 x 3.15 x 5.91")

  • Weight

    Scanner: 5.6kg (12.35 lbs)
    Battery: 750g (26.46 oz)

  • UPC Code

    4260007481509

About Clauss RODEONsmartscan

Just unveiled, the Clauss RODEONsmartscan 3D Laser Scanner is a sophisticated blend of innovative technology and sleek design. This advanced 3D scanner now sports a vibrant orange hue, making it easily identifiable in any setting.

The RODEONsmartscan has been re-engineered to be more compact and lightweight, boasting a weight reduction of over 10% compared to its predecessor. The redesigned handlebars are slender and smaller, enhancing the scanner's overall aesthetics without compromising its robustness or durability.

This high-tech 3D scanner can be effortlessly mounted using the included wild-type adapter, and its reduced dimensions make it a perfect fit for most airline hand luggage requirements, ensuring safe and convenient transportation.

The RODEONsmartscan's interior is where the magic truly happens. It can be controlled via WLAN/LAN from any device, independent of system software. This browser-based control allows for seamless operation using a smartphone, tablet, or notebook.

One of the standout features of this sophisticated 3D scanner is the ability to monitor the scanning process in real-time. Thanks to the newly installed statistics feature, you can instantly preview the distance and echo image, ensuring that the scan meets your specific requirements.

The smartscan saves scans according to date and time, storing the echo and distance images in the same folder as jpg-files. This feature simplifies the process of locating scanned positions during data processing.

Data is stored on an SD card and can be processed using the RODEON processor, with export in most popular data formats (*.pts, *ply, *asc, *xyz, *ptb, *ptx, etc.) continuously ensured.

For colorized point clouds, the RODEONsmartscan can be paired with the panoramic head RODEON piXplorer. An SDK is now available, enabling remote control of the smartscan.

The RODEONsmartscan is a versatile 3D laser scanner designed for measuring and documentation. It uses optimized laser technology to produce a 3D point cloud of the environment in just a few minutes.

This scanner is ideal for a variety of applications, including architectural documentation, civil engineering, industrial documentation, product recording, quality control, reverse engineering, nature and monument protection, accident and crime scene recording, and more.

With its low investment costs, efficient workflow, and wide range of applications, the RODEONsmartscan 3D Laser Scanner is a precise and high-quality tool that can enhance your productivity and profitability.

Clauss RODEONsmartscan Features

  • Advanced 3D laser scanning technology for precise environmental modeling
  • Compact and lightweight design for easy portability and use in various industries
  • Real-time scanning statistics with instant preview for on-the-spot quality checks
  • Seamless data management with scans organized by date/time and stored as jpg-files
  • Compatible with RODEON piXplorer for enhanced colorized point cloud capabilities
  • Browser-based control via WLAN/LAN for flexible operation from smartphones to notebooks

Key Features

  • Capture precise forensic photography with the Clauss 3D laser scanner's 0.015° resolution.
  • Ensure data security with SD card storage, ideal for sensitive public-safety applications.
  • Achieve reliable 3D scans in diverse conditions; IP40 rated for water & dust protection.
  • This panorama laser scanner boasts a 250m range, perfect for detailed crime scene mapping.
  • Enjoy ease of use with smartphone/tablet control (not included) for efficient data capture.
  • The Clauss RODEONsmartscan ensures image quality with +/-15 mm accuracy at 90% remission.

What's in the box:

  • Clauss RODEONsmartscan 3D Laser Scanner
  • Rechargeable Battery
  • Charger
  • Wild-Adapter
  • SD-Card
  • Transportation Case
  • Clauss 2-Year Warranty
