CoolerMaster MasterAir MA620M: Picture 1 thumbnail
MasterAir MA620M
1 video

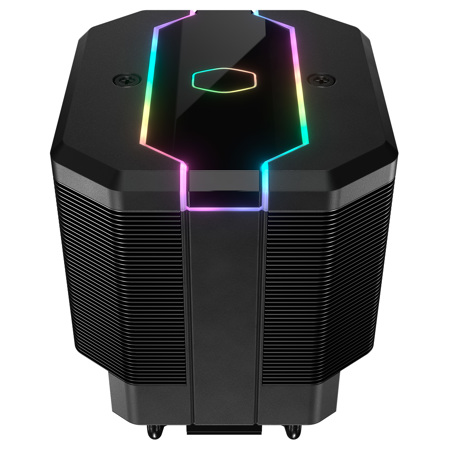

Cooler Master MasterAir MA620M Dual Tower ARGB High Performance CPU Air Cooler
See all CoolerMaster items

CoolerMaster MasterAir MA620M Dual Tower ARGB High Performance CPU Air Cooler, 6 CDC 2.0 Heatpipes, SF120R Fan

SKU: CMAD6PN120PA
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

CoolerMaster MasterAir MA620M Specifications

  • Series

    MasterAir

  • Cooler Type

    Air Cooler

  • Heatpipes

    6

  • CPU Socket

    LGA2066, LGA2011-v3, LGA2011, LGA1200, LGA1151, LGA1150, LGA1155, LGA1156, AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1

  • Heat Sink Material

    6 Heat Pipes, Aluminum Fins

  • Fan Quantity

    1 Pc

  • Fan Speed

    650-2000 RPM (PWM) +/- 10%

  • Fan Airflow

    57.3 CFM (Max)

  • Fan Air Pressure

    2.0 mmH2O (Max)

  • Fan MTTF

    160,000 Hours

  • Fan Noise Level

    8 - 30 dBA

  • Fan Power Connector

    4-Pin (PWM)

  • Fan Rated Voltage

    12VDC

  • Fan Rated Current

    0.16A

  • Fan Safety Current

    0.37A

  • Fan Power Consumption

    1.92W

  • Dimensions (L x W x H)

    5.3 x 4.9 x 6.5" (135 x 125 x 165mm)
    Fan (L x W x H): 4.7 x 4.7 x 1" (120 x 120 x 25mm)

  • UPC Code

    884102062964

About CoolerMaster MasterAir MA620M

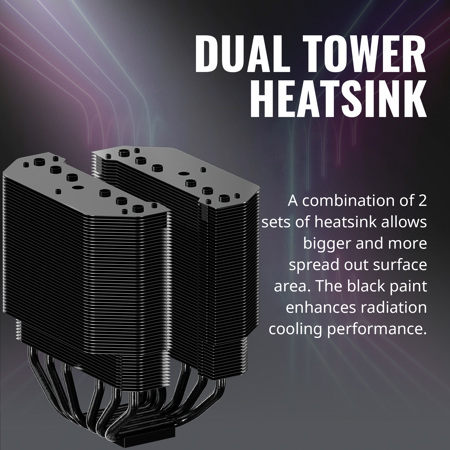

Dual Tower Heatsink
A combination of 2 sets of heatsink allows bigger and more spread out surface area. The black paint enhances radiation cooling performance.

6 Heatpipe Array
Enhanced thermal conductivity and uniform layout distributes heat over more evenly across heatsinks.

Easy Mounting System
Exclusive All-In-One mounting design for easy installation.

The New SF120R Fan
With silent driver IC and a wide range of speed settings, it can be used for silent operation or fine-tuned for maximum cooling performance.

Addressable RGB LED Controller
The wired Addressable RGB LED Controller allows for customizable colors and effects with just the touch of a button. software.

Lighting Badge
The Cooler Master hexagon logo and embedded Addressable RGB lighting strip provides unique perspective light effect.

Diffuser
Provides uniform color in reflected and transmitted light.

CoolerMaster MasterAir MA620M Features

  • Dual Tower Heatsink with a uniform 6 pipe
  • Lighting Badge
  • Easy Mounting System
  • The new SF120R Fan
  • Addressable RGB LED Controller

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual Tower Heatsink with a uniform 6 pipe
  • Lighting Badge
  • Easy Mounting System
  • The new SF120R Fan
  • Addressable RGB LED Controller

What's in the box:

  • Cooler Master MasterAir MA620M Dual Tower ARGB High Performance CPU Air Cooler
  • ARGB LED Controller
  • Bracket Kit
  • Cooler Master 5 Year Limited Warranty
