New Arrival

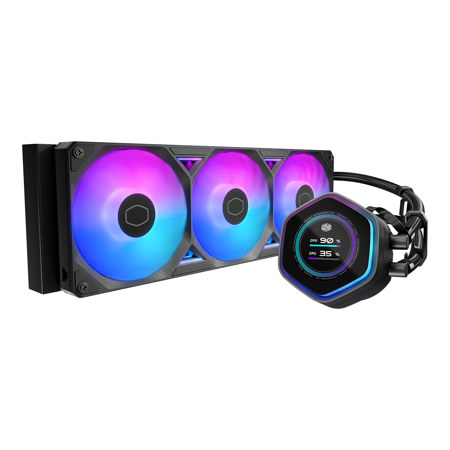

CoolerMaster MasterLiquid 360 Atmos II 360mm All-in-One ARGB CPU Liquid Cooler with LCD Display, Black

SKU: CMMLX25SZL1 MFR: MLX-D36M-A25SZ-L1
Earn VIP Reward Points

Key Features

  • Experience superior cooling performance with our 360mm AIO liquid cooler, keeping your CPU temperatures low.
  • Enjoy a remarkably quiet computing environment thanks to the optimized low noise level of 38.5 dB(A).
  • This versatile cooler offers broad compatibility with both Intel (LGA 1851/1700) and AMD (AM5/AM4) sockets.
  • Customize your build with vibrant Addressable Gen 2 RGB lighting, adding a personalized touch to your PC.
  • Achieve optimal thermal management with a fan speed ranging from 690 to 2500 RPM, adapting to your needs.
  • Rely on exceptional durability with a pump MTTF of over 210,000 hours, ensuring long-lasting performance.
See More Product Details
Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

CoolerMaster MasterLiquid 360 Atmos II Specifications

General

General

Jump to...
  • Color

    Black

  • CPU Socket

    Intel: LGA 1851 / 1700 / 1200 / 1150 / 1151 / 1155 / 1156
    AMD: AM5 / AM4

  • Profile

    Addressable Gen 2 RGB

  • Cooler Type

    Liquid Cooler

  • Series

    MasterLiquid

  • Country of Origin

    China

Radiator

Jump to...
  • Material

    Aluminum

  • Size

    360

  • Dimensions

    15.5 x 4.7 x 1.1" (394 x 119.2 x 27.94mm)

  • Profiles

    Addressable Gen2 RGB

  • Speed

    3400 +/- 300 RPM

  • MTTF

    >210,000 Hours

  • Noise Level

    25 dBA (Max)

  • Rated Voltage

    12 VDC

  • Power Consumption

    3.84 W

  • Connector

    3-Pin ARGB + 4-Pin PWM

  • Dimensions

    3.6 x 3.4 x 1.5" (92.5 x 87 x 38.5mm)

  • Length

    15.74" (400mm)

  • Quantity

    1 PC

  • Speed

    690 - 2500 RPM +/- 15%

  • Airflow

    322.8 cu. m/h (190 CFM)

  • Air Pressure

    3.61 mmH2O

  • MTTF

    >160,000 Hours

  • Noise Level

    38.5 dB(A)

  • Bearing Type

    Loop Dynamic Bearing

  • Connector

    7-Pin PWM + ARGB

  • Rated Voltage

    12 VDC

  • Rated Current

    0.5 A

  • Safety Current

    0.8 A

  • Power Consumption

    6 W

  • Dimensions (L x W x H)

    14.2 x 4.8 x 1" (361 x 122 x 25mm)

  • Connector

    USB Type-C to Motherboard 9 pin

  • Screen Resolution

    480 x 480 px

  • Screen Luminance

    300 cd/sq. m

  • Screen Refresh Rate

    60 Hz

  • Screen Orientation

    Software-MasterCtrl adjustable

  • Rated Voltage

    5 VDC

  • Rated Current

    0.3 A

  • Safety Current

    0.5 A

  • Power Consumption

    1.5 W

  • Screen Size

    Dia. 2.1" (53.3mm)

  • Dimensions

    3.4 x 3.1 x 0.7" (86.36 x 78.74 x 17.78mm)

  • UPC Code

    884102131981

About CoolerMaster MasterLiquid 360 Atmos II

MasterLiquid Atmos II LCD
Introducing Cooler Master's all-new Atmos II LCD CPU cooler, designed to elevate your cooling experience. The MasterLiquid Atmos II LCD offers enhanced customization, enabling users to switch the panel information to system stats, GIFs, images, scrolling text and more. The low-profile pump design makes it ideal for fitting into compact cases. The MasterLiquid Atmos II LCD delivers exceptional cooling performance, quieter operation, and the flexibility to personalize your build. Make it yours with Atmos II LCD-the perfect blend of performance, customization, and silence.

LCD
The LCD panel provides a real-time display, and the MasterCTRL software supports the creation of GIFs, PNGs, JPGs, scrolling text, and the display of your music or video source.

Dual Chamber Design

Patented design
Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot.

Improved Quality
Fully automated production and assembly of the pump with fully recorded production history.

Tough. Reliable. Built to Endure.
Engineered with PPS and fiberglass, the MasterLiquid Atmos II pump housing delivers industrial-grade strength, exceptional heat resistance, and unmatched durability-designed for builders who demand long-lasting, high-performance cooling. It also passes extreme testing at 70 Degree C for 3,000 hours and 120 Degree C for 12 hours, ensuring reliable performance under the harshest conditions.

Pre-Installed SickleFlow Edge ARGB fans
High RPM fan with low vibration ensure strong cooling with minimal noise, while the dual color options complement different system aesthetics.

Engineered for Simplicity
Say goodbye to messy cables and hello to a cleaner, faster build. We've seamlessly hidden the wiring inside the tubes-no more exposed pump cables cluttering your setup. Plus, by combining all fan connectors into a single streamlined cable, you get a sleek, minimalist look with less hassle. It's smarter design that looks as good as it performs.

Ultra-Low Profile Pump Design
The flat design allows installation in cases of different sizes while maintaining strong performance.

Quick and Easy Installation
A quick-mount kit ensures compatibility with mainstream processor sockets and the pre-installed fans simplify setup.

Offset Mounting Brackets for LGA 1851
Due to the varying CPU hotspots across different platforms, there are corresponding mounting bracket solutions tailored for each. We recommend you use the included offset mounting brackets for LGA 1851, which precisely dissipate 4 Degree C of heat from the center of the CPU.

CoolerMaster MasterLiquid 360 Atmos II Features

  • LCD Panel for Enhanced Personalization: The built-in LCD panel displays system stats, images, animations, scrolling text, or video and music sources using our MasterCTRL software
  • Dual Cover Styles: Two decorative top covers are included and attach magnetically, so you can switch styles in seconds. Availability may vary by model
  • Engineered for Simplicity: Wiring is hidden inside the tubes, and all fans connect via a single cable for a cleaner, faster, and smarter build
  • Dual Chamber Design: Our latest patented dual chamber design has been refined for enhanced cooling synergy. The new design increases water pressure and optimizes water flow directly to CPU hot spot
  • Built to Endure: Engineered with PPS and fiberglass for superior strength and heat resistance, the Atmos II pump endures 70 Degree C for 3,000 hours and 120 Degree C for 12 hours for lasting performance

Warranty Information

This product has a limited warranty of 72 months.

Key Features

  • Experience superior cooling performance with our 360mm AIO liquid cooler, keeping your CPU temperatures low.
  • Enjoy a remarkably quiet computing environment thanks to the optimized low noise level of 38.5 dB(A).
  • This versatile cooler offers broad compatibility with both Intel (LGA 1851/1700) and AMD (AM5/AM4) sockets.
  • Customize your build with vibrant Addressable Gen 2 RGB lighting, adding a personalized touch to your PC.
  • Achieve optimal thermal management with a fan speed ranging from 690 to 2500 RPM, adapting to your needs.
  • Rely on exceptional durability with a pump MTTF of over 210,000 hours, ensuring long-lasting performance.

What's in the box:

  • CoolerMaster MasterLiquid 360 Atmos II 360mm AIO ARGB CPU Liquid Cooler with LCD Display (Black)
  • Tube Clips
  • CoolerMaster 6 Year Limited Warranty
