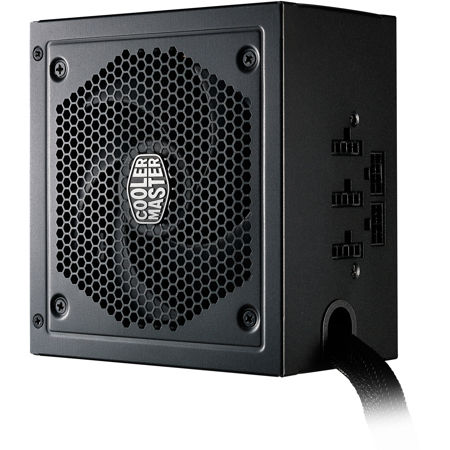

CoolerMaster MasterWatt 750 750W Semi-Fanless Modular 80 PLUS Bronze Certified Power Supply

SKU: CMMPX7501AMA

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

CoolerMaster MasterWatt 750 Specifications

  • ATX Version

    ATX 12V Version 2.4

  • PFC

    Active PFC

  • Input Voltage

    100-240 VAC

  • Input Current

    10-5A

  • Input Frequency

    50-60 Hz

  • Fan Size

    4.72" (120mm)

  • Fan Bearing

    LDB

  • Power Good Signal

    100-500 ms

  • Hold Up Time

    16ms at 80% load

  • Efficiency

    85% at Typical Load

  • ErP 2013 Lot 6

    Yes

  • MTBF

    >100,000 hours

  • Output

    +3.3 V - 22 A
    +5 V - 22 A
    120 W

    +12 V - 62.5 A
    750 W

    -12 V - 0.3 A
    3.6 W

    +5 Vsb - 3 A
    15 W

  • Operating Temperature

    0 to 40 deg. C (32 to 104 deg. F)

  • Protections

    OCP / OVP / UVP / OPP / OTP / SCP

  • Regulatory

    CCC, CE, TUV-RH, RCM, EAC, cTUVus, FCC, BSMI, KC, CB

  • Connectors

    1xMB 24 Pin
    1x CPU 12V 4+4 Pin
    9x SATA
    3x Peripheral 4 Pin
    1x FDD Cable 4 Pin
    4x PCI-e 6+2 Pin

  • Dimensions (LxWxH)

    5.51 x 5.91 x 3.39" (140 x 150 x 86mm)

About CoolerMaster MasterWatt 750

The MasterWatt is an 80 Plus Bronze power supply with an innovative semi-fanless mode. Under 15% load, the MasterWatt fan remains idle, offering zero dBA. When demand for power increases, a gradual fan curve provides measured cooling with little to no noise at any output level. Dual forward / DC-to-DC topology is employed to keep the voltage stable in all conditions. For increased performance, MasterWatt is equipped with 16 AWG power cables, which reduces resistance, thereby increasing efficiency.

80 PLUS Bronze Certified
The 80 PLUS Bronze certification guarantees that MasterWatt delivers an average efficiency of 85%.

Durable LDB Bearing
Cooler Master 120mm Silencio FP fan combines sealed LDB bearings with quiet fan blades offering a long lifetime of quiet cooling.

Semi-Fanless up to 15% load
MasterWatt Operates at 0dB under 15% load. Experience noise-free basic computing.

Dual Forward and DC-to-DC Circuit Design
The Dual Forward and DC-to-DC circuit design offers reliability and stability. This is especially significant in +3.3V and +5V outputs.

More Conductive PCI-e Cables
The MasterWatt uses 16AWG cables for PCI-e cables. Less resistance and better efficiency, providing you a safer user environment.

CoolerMaster MasterWatt 750 Features

  • 80 Plus Bronze power supply with an innovative semi-fanless mode

Key Features

  • 80 Plus Bronze power supply with an innovative semi-fanless mode

What's in the box:

  • CoolerMaster MasterWatt 750 750W Semi-Fanless Modular 80 PLUS Bronze Certified Power Supply
  • CoolerMaster 5 Year Limited Warranty
