New Arrival

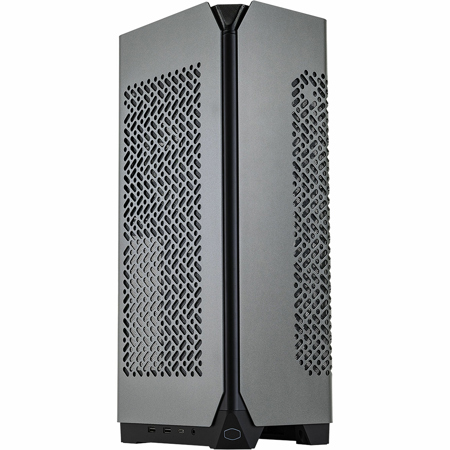

CoolerMaster NCORE 100 MAX Mini-ITX Tower Computer Case, Dark Gray

SKU: CMNR100MNNN8 MFR: NR100-MNNN85-SL0
Earn VIP Reward Points

Key Features

  • Optimize your setup with this compact Mini-ITX tower, perfect for small spaces.
  • Experience superior cooling performance with the integrated 120mm radiator and custom PWM fan.
  • Enjoy versatile building options with support for up to 3.9 slot thick graphics cards.
  • Benefit from excellent cable management, ensuring a clean and organized internal layout.
  • The durable steel, plastic, and aluminum construction ensures long-lasting quality and aesthetic appeal.
  • Power your high-performance components with the included V SFX Gold 850W ATX 3.0 PSU.
See More Product Details
Overview
Compare
Specs
Q&A

Questions & Answers

Reviews about this item

Review Summary

CoolerMaster NCORE 100 MAX Specifications

  • Color

    Dark Gray

  • Materials

    Exterior: Steel, Plastic, Aluminum
    Side Panel: Aluminum

  • Volume

    15.80L (Normal mode)
    17.54L (Expansion mode)

  • Size

    Mini ITX

  • Motherboard Support

    ITX

  • Expansion Slots

    3x PCIe Slot Mounting

  • Drive Bays

    2.5" SSD: 1

  • I/O Panel

    2x USB 3.2 Gen1 Type A
    1x USB 3.2 Gen2 x 2 Type C
    1x Audio Combo (Audio In / Out 3.5mm)

  • Accessories

    1x 240mm PCIe 4.0 x16

  • CPU Cooling Solution

    120mm Radiator with 38mm Thickness (Custom PWM Fan Max. 2400RPM)

  • Power Supply Unit

    V SFX Gold 850W ATX 3.0

  • Fan(s) - Rear

    120mm SickleFlow PWM Fan x1 (Max. 1800RPM)

  • Clearances

    CPU Cooler: 1.89" (48mm)
    Power Supply: 3.93" (100mm)
    RAM: 1.89" (48mm)
    Graphics Card: 13.26 x 2.44 x 7.08" (337 x 62 x 180mm) (Normal, 3.0 Slot thick)
    14.05 x 3.11 x 7.08" (357 x 79 x 180mm) (Expansion, 3.9 Slot thick)
    (Maximum space including GPU power connector)

  • Cable Routing

    Behind MB Tray: 11mm

  • Dust Filters

    Side panels

  • Power Supply Support

    SFX

  • Dimensions (L x W x H)

    Normal mode:
    6.1 x 8.34 x 18.93" (155 x 212 x 481mm) (Incl. Protrusions)
    6.1 x 8.34 x 18" (155 x 212 x 457mm) (Excl. Protrusions)

    Expansion mode:
    6.77 x 8.34 x 18.93" (172 x 212 x 481mm) (Incl. Protrusions)
    6.77x 8.34 x 18" 172mm x 212mm x 457mm (Excl. Protrusions)

  • UPC Code

    884102115905

About CoolerMaster NCORE 100 MAX

Max Performance, Minimalist Design
Cooler Master's NCORE 100 MAX is the ultimate solution for going big on performance in the minimal amount of desktop space.

The Compact Case for Powerful PC
Discover the NCORE 100 MAX by Cooler Master: a compact, high-performance addition to the MAX series. It offers advanced cooling, power solutions, and a small form factor with anodized aluminum panels. Accommodating up to 3.9 Slot GPU, it ensures compatibility with the latest processors, delivering unparalleled performance without sacrificing design. Experience versatility, compatibility and peak performance with the sleek, space-saving NCORE 100 MAX. Elevate your setup today!

Custom AIO Cooling
The NCORE 100 Max leverage decades of expertise in thermal solutions and features a custom 120mm AIO Water Cooler supporting the latest Intel and AMD CPUs.

High-End GPU Compatibility
Includes support for high performance, triple-slot GPUs up to 336mm in length and 140mm in height, with four included 6+2 pin power cables and a vertical mount design.

Tailor-Made Power Solution
Cooler Master's V SFX Gold 850W ATX 3.0 PSU covers all your power needs and comes with custom length cables.

Ultra-Small Footprint
The NCORE 100 MAX is super compact, with a footprint about the size of a small booklet.

Premium Aluminum Panel
An anodized aluminum shell makes the NCORE 100 MAX stand out as a desktop work of art.

Pre-Routed Cables
Includes custom length, pre-routed cables which have been placed right where you need them and are ready to be connected to your motherboard and GPU.

Airflow
The NCORE 100 MAX layout has been meticulously designed to offer the most efficient thermal layout. This layout pulls in air from the standing sides of the case, which are its largest surfaces.

Open Frame Design
Eliminating three surfaces usually included in a standard case to let you approach installation from numerous angles. Even and cable cover features tool-less removal, for the utmost in accessibility.

Innovative Extendable Mechanism
Extendable width from 155mm to 172mm allows for 4 GPU slots and RTX 4090 compatibility or 3 slots for a super-small form factor.

Easy Installation
Pre-routed cables ensure the installation process is as smooth as can be.

Minimalist Design, Maximalist Power
The NCORE 100 MAX has been designed with a minimalist industrial design that would look right at home in a design studio. The MAX also includes ample ventilation and adjustable space to house enough power to satisfy even the most power-hungry use cases such as gaming and creative works.

Minimum effort, maximum payoff
Small form factor PC are notoriously difficult to install because of the cramped space. Not the NCORE 100 MAX, it is the easiest Compact case on the market to build in just pop in your motherboard and GPU through the open frame design and connect the pre-routed cables.

Build Small. Play Big.
This case is compatible with SFF-Ready Enthusiast GeForce cards, so you can pack high performance into a smaller footprint. Look for SFF-Ready Enthusiast GeForce Cards to get a sure fit and streamline your PC build.

CoolerMaster NCORE 100 MAX Features

  • Compact size packs top-tier performance into a space-saving footprint
  • Custom 120mm AIO cooler supports latest Intel and AMD CPUs
  • Vertical mount fits up to 3.9 slot GPUs with tailored cable support
  • 850W ATX 3.0 PSU with custom-length cables for powerful efficiency
  • Premium anodized aluminum panels elevate industrial minimalism
  • Open frame and pre-routed cables make installation fast and easy

Warranty Information

This product has a limited warranty of 24 months.

Key Features

  • Optimize your setup with this compact Mini-ITX tower, perfect for small spaces.
  • Experience superior cooling performance with the integrated 120mm radiator and custom PWM fan.
  • Enjoy versatile building options with support for up to 3.9 slot thick graphics cards.
  • Benefit from excellent cable management, ensuring a clean and organized internal layout.
  • The durable steel, plastic, and aluminum construction ensures long-lasting quality and aesthetic appeal.
  • Power your high-performance components with the included V SFX Gold 850W ATX 3.0 PSU.

What's in the box:

  • CoolerMaster NCORE 100 MAX Mini-ITX Tower Computer Case (Dark Gray)
  • CoolerMaster 2 Year Limited Warranty
