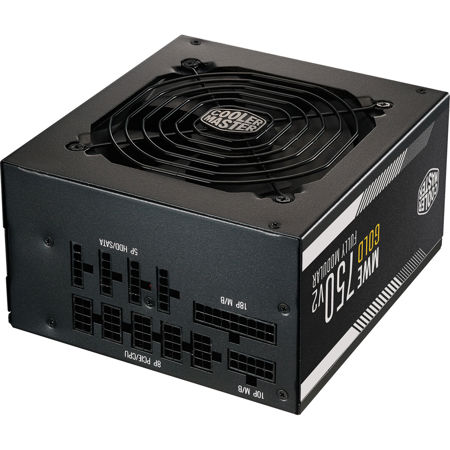

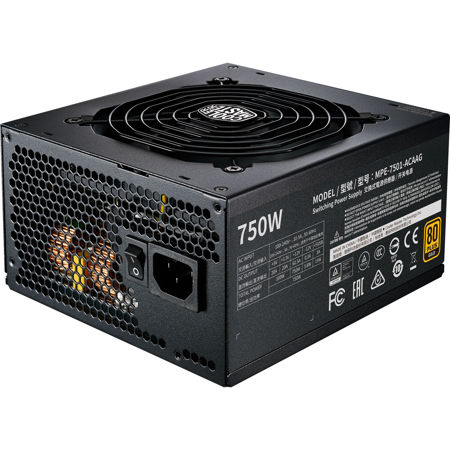

CoolerMaster MWE Gold 750 V2 750W 80+ Gold Certified Full Modular ATX Power Supply Unit

SKU: CMPE7501AFG

This item is no longer available.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failures, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Failure Protection

Failure Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for international or U.S. territories purchases. Plans on open box items do not cover pre-existing damage.
Adorama Protect plans are available for ABS clients. If you have any questions or require assistanse, please call 800-223-2500

CoolerMaster MWE Gold 750 V2 Specifications

  • Series

    MWE Gold Series

  • 80 Plus

    Gold

  • Modular

    Full Modular

  • Wattage

    750W

  • ATX Version

    ATX 12V

  • PFC

    Active PFC

  • Input Voltage

    90-264V

  • Input Current

    10-5A

  • Input Frequency

    47-63Hz

  • Fan Size

    120mm

  • Fan Bearing

    HDB

  • Fan Speed

    1500 RPM

  • Noise Level

    @ 20%: 0 dBA
    @ 50%: 17.8 dBA
    @ 100%: 24.9 dBA

  • Efficiency

    90% @ Typical Load

  • 80 Plus Rating

    80 PLUS Gold

  • ERP 2014 Lot 3

    Yes

  • Operating Temperature

    32 - 122 Degree F (0 - 50 Degree C)

  • Power Good Signal

    100 - 150 ms

  • Hold Up Time

    >16ms at 100% Load

  • MTBF

    >100,000 Hours

  • Protections

    OVP, OPP, OTP, SCP, OCP, UVP

  • Regulatory

    TUV, CE, CCC, EAC, RCM, cTUVus, FCC, BSMI

  • Connectors

    ATX 24-Pin: 1
    EPS 4+4 Pin: 1
    EPS 8 Pin: 1
    SATA Connectors: 12
    PERIPHERAL 4-Pin Connectors: 4
    PCI-E 6+2 Pin Connectors: 4

  • AC Input

    100-240V - 10-5A, 50-60Hz

  • DC Output

    +12V, 62.5A

  • Dimensions (L x W x H)

    6.3 x 5.9 x 3.4" (160 x 150 x 86mm)

  • UPC Code

    884102078774

About CoolerMaster MWE Gold 750 V2

Power Up
The MWE Gold - V2 (Full Modular) is the next step in the evolution of Cooler Master's entry level 80 PLUS Gold power supply unit line. The original MWE Gold series was created in order to offer a simpler and more affordable Gold rated option in order to help users make the transition from 80 PLUS White and Bronze power supply units more accessible. While there is still demand for White and Bronze units, the global standard has been shifting to Gold. Some countries have even begun to legislate 80 PLUS Gold efficiency as the legal minimum to purchase. This is why bringing affordable options like the MWE Gold is so important to Cooler Master. The MWE Gold - V2 improves upon the original version in the places where users will see the most immediate benefit.

80 Plus Gold Certified
Efficiency has always been one of the most important factors for users when choosing their power supply unit. While there are a range of efficiency options, 80 PLUS Gold has been the ideal choice for the last several years and continues to be seen as the standard for much of the world. The MWE Gold - V2 delivers an 80 PLUS Gold certification, guaranteeing a typical minimum efficiency of 90%.

2 EPS Connectors
All MWE Gold - V2 models come standard with 2 EPS connectors in order to ensure universal compatibility with all current gen motherboards. Whether you get the minimum wattage level at 550W or the maximum at 850W, you never have to worry if you'll have enough connectors to use your ideal components.

Quiet Cooling
The MWE Gold - V2 has been upgraded with an HDB fan. This fan bearing delivers quiet and effective cooling with a long lifespan, allowing users to get the most out of their PSU for years to come. A number of additional measures have been applied to the original MWE Gold in order to reduce sound output and ripple noise for a demonstrably quieter user experience.

High Temperature Resilience
While the original MWE Gold had a maximum operating temperature of only 45 degrees Celsius, the MWE Gold - V2 has improved upon this by delivering an additional 5 degrees to that limit. With this model, users will be able to push their power supply to 50 degrees Celsius safely. Such a high threshold greatly improves what's possible to accomplish with your PSU and your system in general. Overclocking and other high intensity applications become way more accessible when the system's power supply can take the heat.

Full Modular Cabling
The full modular version of the MWE Gold - V2 comes with a set of flat black cables that can be customized to each user's individual needs. With a full modular setup, each system only needs to include the cables required for its individual components. The rest of the cables can be put aside for future upgrades and maintenance. This unused space within the chassis allows for reduced clutter and better airflow, thereby improving your system's overall cooling. Full modular cables carry an aesthetic benefit as well by reducing the amount of space needed within the case when powering the system.

CoolerMaster MWE Gold 750 V2 Features

  • 80 Plus Gold Efficiency
  • 2 EPS Connectors
  • 120mm HDB Fan
  • High Temperature Resilience
  • Full Modular Cabling

Key Features

  • 80 Plus Gold Efficiency
  • 2 EPS Connectors
  • 120mm HDB Fan
  • High Temperature Resilience
  • Full Modular Cabling

What's in the box:

  • Cooler Master MWE Gold 750 V2 750W 80+ Gold Certified Full Modular ATX Power Supply Unit
  • 24-Pin ATX Cable
  • Power Cord Cable
  • 8-Pin CPU Cable
  • 8-Pin (6+2) PCIe Cable
  • 4x 4-Pin Molex Cables
  • SATA Cable
  • 4x Mounting Screws
  • Cooler Master 5 Year Limited Warranty
